16. FULLY CLOSED LOOP SYSTEM
16 - 6
16.2 Load-side encoder
POINT
Always use the load-side encoder cable introduced in this section. Using other
products may cause a malfunction.
For details of the load-side encoder specifications, performance and assurance,
contact each encoder manufacturer.
16.2.1 Linear encoder
Refer to "Linear Encoder Instruction Manual" for usable linear encoders.
16.2.2 Rotary encoder
When a rotary encoder is used for the load-side encoder, use HG-KR or HG-MR servo motor as an encoder.
Use a two-wire type encoder cable for MR-J4-_B_ servo amplifiers. Do not use MR-EKCBL30M-L, MR-
EKCBL30M-H, MR-EKCBL40M-H, or MR-EKCBL50M-H as they are four-wire type.

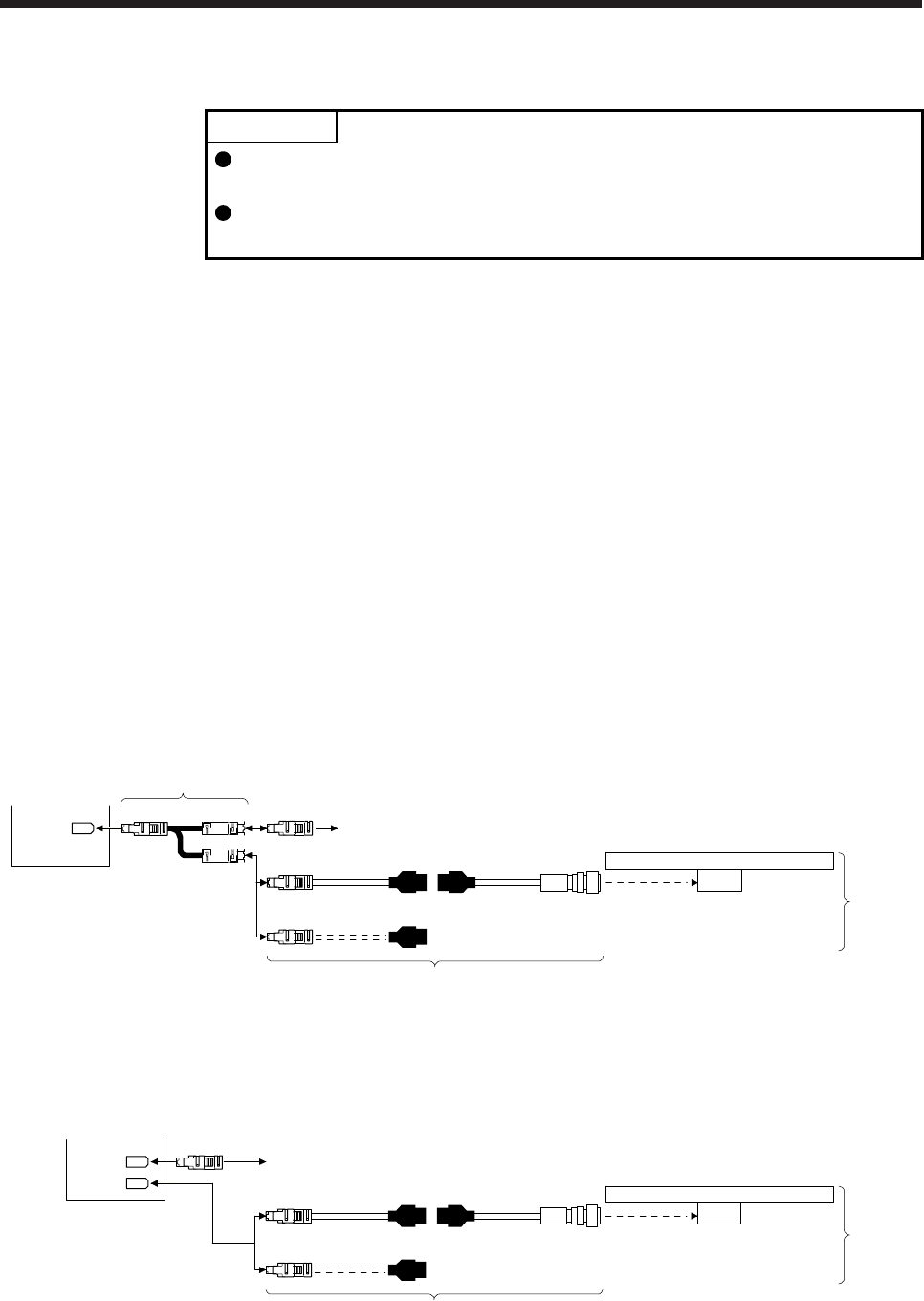

16.2.3 Configuration diagram of encoder cable
Configuration diagram for servo amplifier and load-side encoder is shown below. Cables used vary,
depending on the load-side encoder.
(1) Linear encoder
Refer to "Linear Encoder Instruction Manual" for encoder cables for linear encoder.
(a) MR-J4-_B_ servo amplifier
Servo amplifier
Linear encoder
CN2
MR-J4FCCBL03M branch cable
(Refer to section 16.2.4)
Encoder of rotary servo motor
Encoder cable
(Refer to the "Linear Encoder Instruction Manual".)
CN2 MOTOR
SCALE
Load-side
encoder
(b) MR-J4-_B_-RJ servo amplifier
You can connect the linear encoder without using a branch cable shown in (a) for MR-J4-_B_-RJ
servo amplifier. You can also use a four-wire type linear encoder.
CN2
CN2L
Servo amplifier
Linear encoder
Encoder of rotary servo motor
Encoder cable
(Refer to the "Linear Encoder Instruction Manual".)
Load-side
encoder
