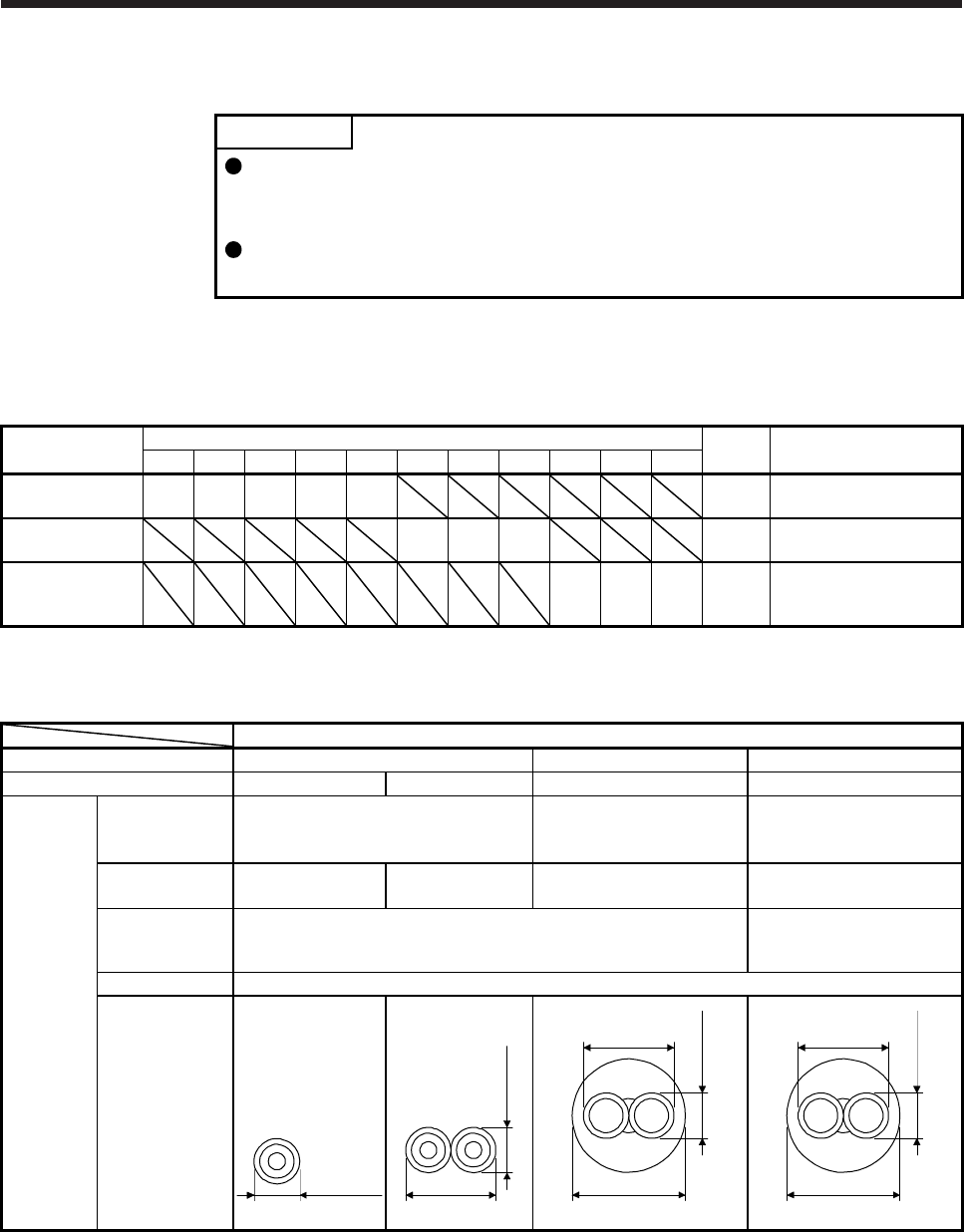

11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 7
11.1.3 SSCNET III cable
POINT
Do not look directly at the light generated from CN1A/CN1B connector of servo
amplifier or the end of SSCNET III cable. The light can be a discomfort when it
enters the eye.
Refer to appendix 10 for long distance cable over 50 m and ultra-long bending
life cable.
(1) Model explanations
The numbers in the cable length field of the table indicate the symbol filling the underline "_" in the cable
model. The cables of the lengths with the symbols are available.
Cable model
Cable length
Bending
life
Application/remark
0.15 m 0.3 m 0.5 m 1 m 3 m 5 m 10 m 20 m 30 m 40 m 50 m
MR-J3BUS_M 015 03 05 1 3 Standard
Using standard cord
inside cabinet
MR-J3BUS_M-A 5 10 20 Standard
Using standard cable
outside cabinet
(Note)
MR-J3BUS_M-B
30 40 50
Long
bending
life
Using long distance
cable
Note. For cable of 30 m or shorter, contact your local sales office.
(2) Specifications
Description
SSCNET III cable model MR-J3BUS_M MR-J3BUS_M-A MR-J3BUS_M-B
SSCNET III cable length 0.15 m 0.3 m to 3 m 5 m to 20 m 30 m to 50 m
Optical
cable
(cord)
Minimum bend
radius
25 mm
Enforced covering cable:
50 mm
Cord: 25 mm
Enforced covering cable:
50 mm
Cord: 30 mm
Tension strength 70 N 140 N
420 N
(Enforced covering cable)
980 N
(Enforced covering cable)
Temperature
range for use
(Note)
-40 °C to 85 °C -20 °C to 70 °C
Ambience Indoors (no direct sunlight), no solvent or oil
Appearance [mm]
2.2 ± 0.07
4.4 ± 0.1
2.2 ± 0.07
4.4 ± 0.1
6.0 ± 0.2
2.2 ± 0.07
4.4 ± 0.4
7.6 ± 0.5
2.2 ± 0.2
Note. This temperature range for use is the value for optical cable (cord) only. Temperature condition for the connector is the same as
that for servo amplifier.
