11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 84

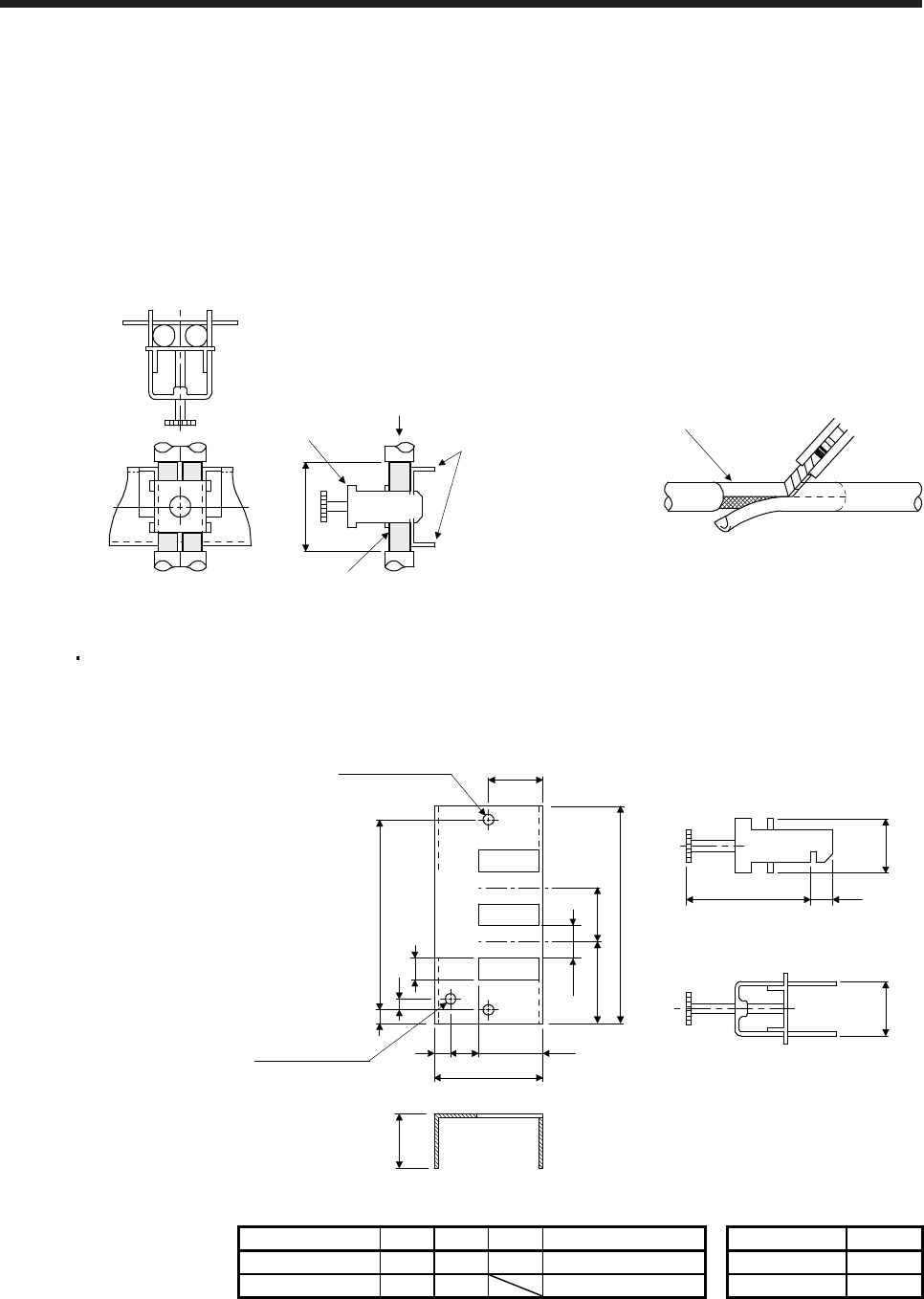

(c) Cable clamp fitting AERSBAN-_SET
Generally, the grounding of the shielded wire may only be connected to the connector's SD terminal.
However, the effect can be increased by directly connecting the cable to an grounding plate as
shown below.
Install the grounding plate near the servo amplifier for the encoder cable. Peel part of the cable
sheath to expose the external conductor, and press that part against the grounding plate with the
cable clamp. If the cable is thin, clamp several cables in a bunch.
The cable clamp comes as a set with the grounding plate.
[Unit: mm]
Cable clamp
(A, B)
Cable
Earth plate
External conductor
Clamp section diagram
40
Strip the cable sheath o
f
the clamped area.
cutter
cable
Dimensions
[Unit: mm]
Earth plate
(Note) M4 screw
11
3
6
C
A
622
17.5
35
35
7
24
0
-0.2
B ± 0.3
2-φ5 hole
installation hole
[Unit: mm]
Clamp section diagram
L or less 10
30
24
+ 0.3
0
Note. Screw hole for grounding. Connect it to the grounding plate of the cabinet.
Model A B C Accessory fittings Clamp fitting L
AERSBAN-DSET 100 86 30 Clamp A: 2pcs. A 70
AERSBAN-ESET 70 56 Clamp B: 1pc. B 45
