11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 65
(a) Assembling a battery unit
CAUTION
Do not mount new and old batteries together.
When you replace a battery, replace all batteries at the same time.
POINT
Always install five MR-BAT6V1 batteries to an MR-BT6VCASE battery case.
1) Required items
Product name Model
Quantity
Remarks
Battery case MR-BT6VCASE 1 MR-BT6VCASE is a case used for connecting and
mounting five MR-BAT6V1 batteries.
Battery MR-BAT6V1 5 Lithium battery (primary battery, nominal + 6 V)
2) Disassembly and assembly of the battery case MR-BT6VCASE

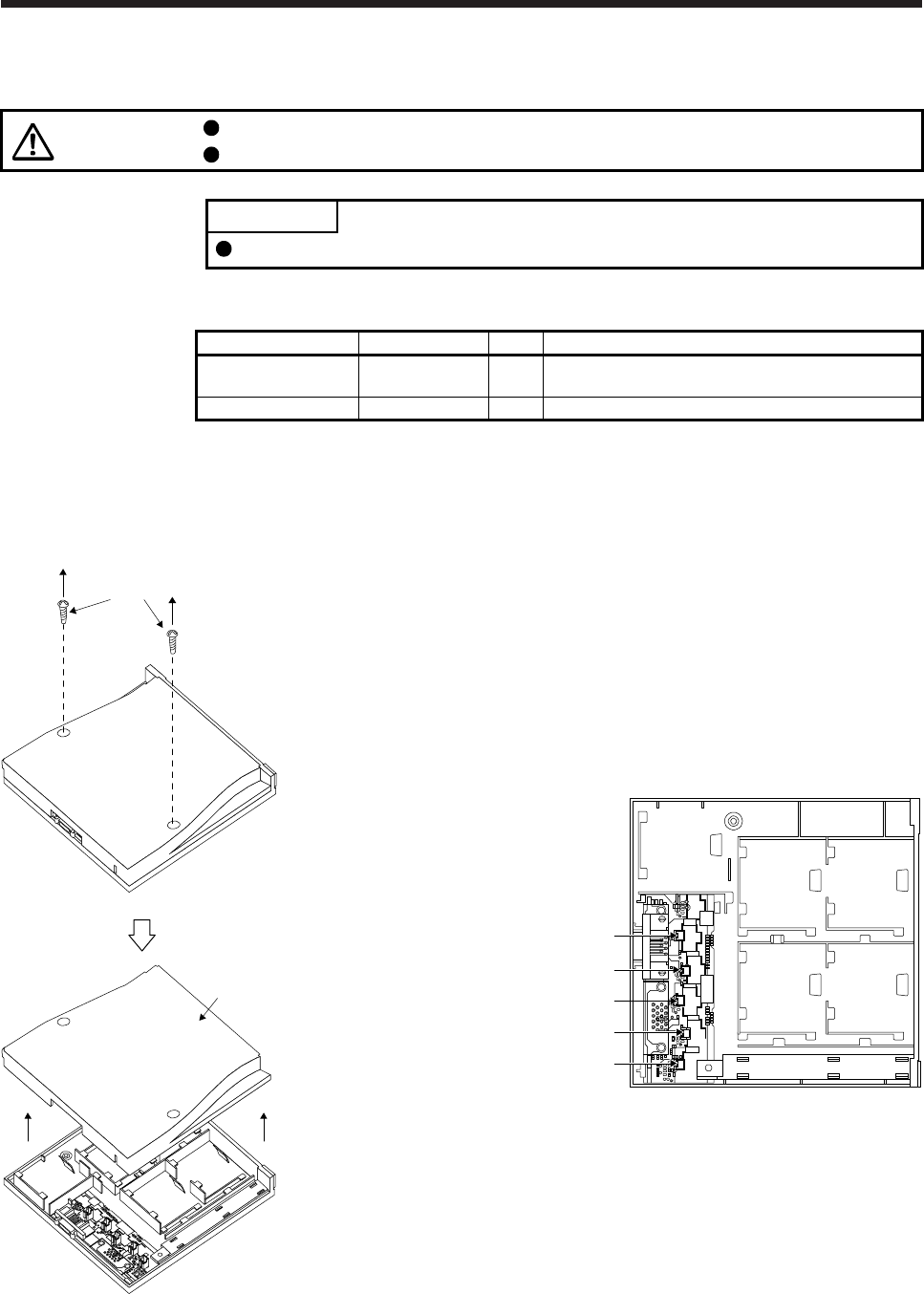

a) Disassembly of the case
MR-BT6VCASE is shipped assembled. To mount MR-BAT6V1 batteries, the case needs to be
disassembled.
Threads
Remove the two screws using a
Phillips screwdriver.
CON2
CON3
CON1
CON4
CON5
Parts identification
BAT1
BAT2 BAT3
BAT4 BAT5
Cover
Remove the cover.
