3. SIGNALS AND WIRING
3 - 23

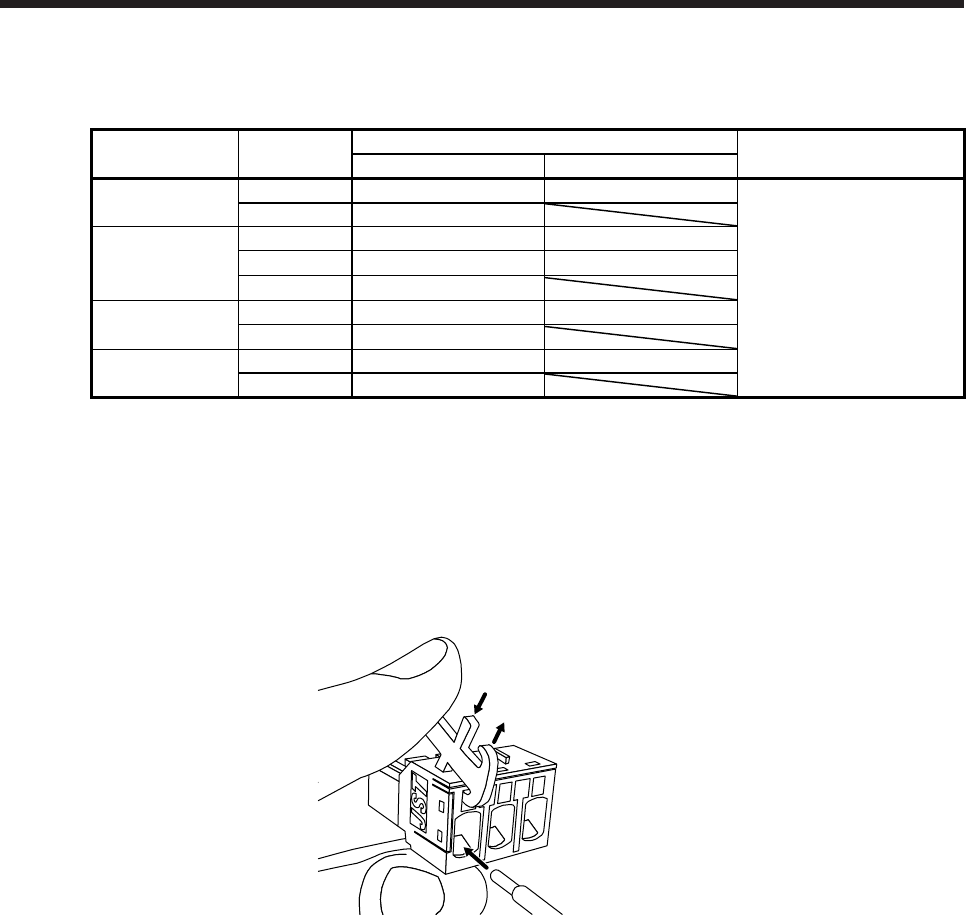

You can also use a ferrule to connect with the connectors. When using a ferrule, select a ferrule and
crimping tool listed in the table below.
Servo amplifier Wire size
Ferrule model (Phoenix Contact)
Crimping tool
(Phoenix Contact)
For one For two
MR-J4-10B(-RJ) to
MR-J4-100B(-RJ)
AWG 16 AI1.5-10BK AI-TWIN2×1.5-10BK
CRIMPFOX-ZA3
AWG 14 AI2.5-10BU
MR-J4-200B(-RJ) to
MR-J4-350B(-RJ)
AWG 16 AI1.5-10BK AI-TWIN2×1.5-10BK
AWG 14 AI2.5-10BU AI-TWIN2×2.5-10BU
AWG 12 AI4-10GY
MR-J4-60B4(-RJ) to
MR-J4-350B4(-RJ)
AWG 16 AI1.5-10BK AI-TWIN2×1.5-10BK
AWG 14 AI2.5-10BU
MR-J4-10B1(-RJ) to
MR-J4-40B1(-RJ)
AWG 16 AI1.5-10BK AI-TWIN2×1.5-10BK
AWG 14 AI2.5-10BU
(b) Inserting wire
Insert the open tool as follows and push down it to open the spring. While the open tool is pushed
down, insert the stripped wire into the wire insertion hole. Check the insertion depth so that the cable
insulator does not get caught by the spring.
Release the open tool to fix the wire. Pull the wire lightly to confirm that the wire is surely connected.
The following shows a connection example of the CNP3 connector for MR-J4-200B(-RJ) and MR-J4-
350B(-RJ).
1) Push down the open tool.
3) Release the open tool to fix the wire.
2) Insert the wire.
