1. FUNCTIONS AND CONFIGURATION
(2) For MR-J3-11KA(4) to MR-J3-22KA(4)

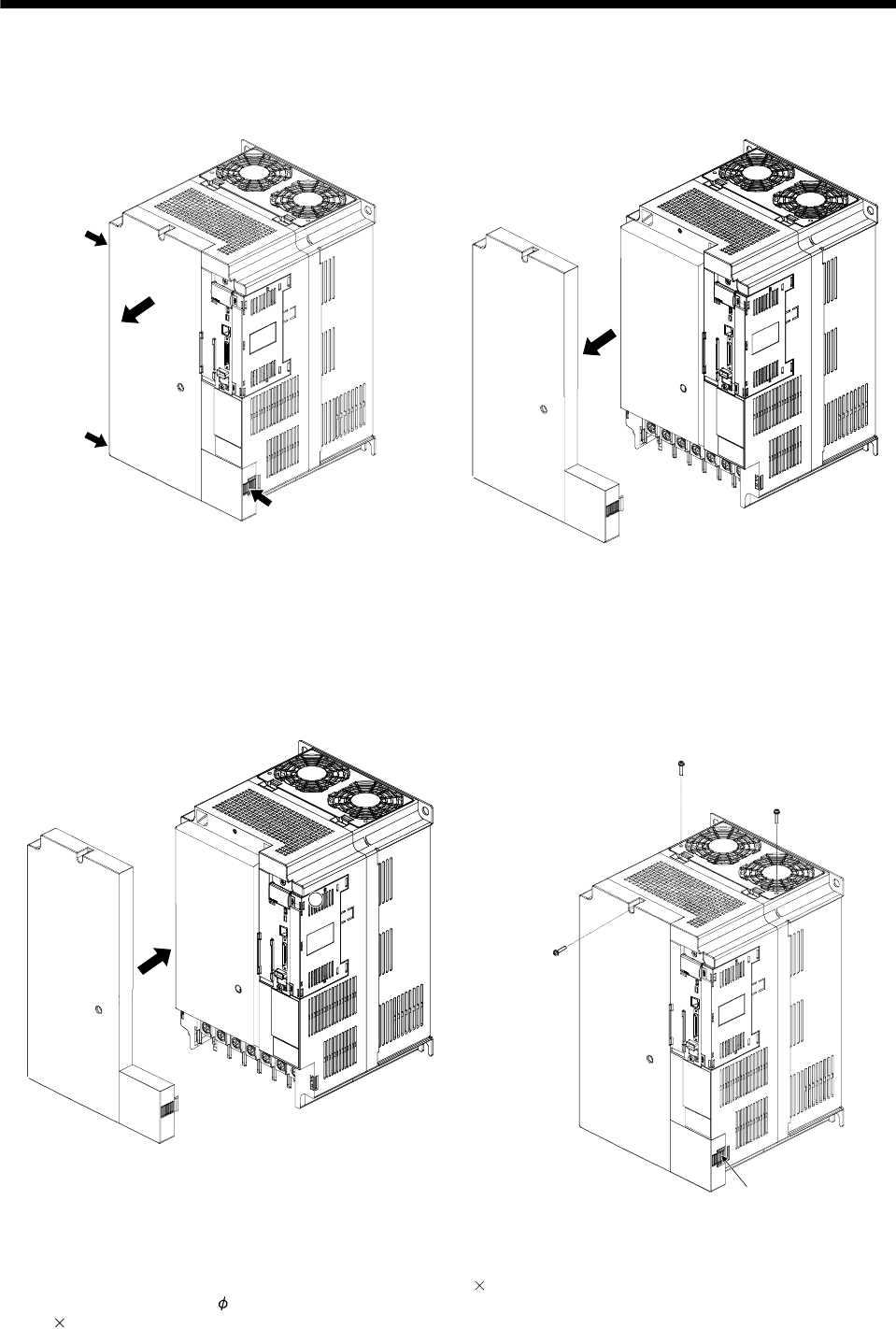

Removal of the front cover
C)
B)
A)
1) Press the removing knob on the lower side of the
front cover ( A) and B) ) and release the
installation hook.
2) Press the removing knob of C) and release the
installation hook.
3) Pull it to remove the front cover.
Reinstallation of the front cover
D
C)
B)
A)
Installation hoo
k
(Note 1)
(Note 1)
(Note 2)
1) Fit the front cover installation hooks on the sockets
of body cover ( A) to B) ) to reinstall it.
2) Push the front cover until your hear the clicking
noise of the installation hook.
Note 1. The cooling fan cover can be locked with enclosed screws (M4 40).
2. By drilling approximately
4 of a hole on the front cover, the front cover can be locked on the body with an enclosed screw (M4
14).
