6 - 16
6. DISPLAY AND OPERATION SECTIONS
6.8 Output signal (DO) forced output
POINT
When the servo system is used in a vertical lift application, turning on the
electromagnetic brake interlock (MBR) by the DO forced output after assigning it to
connector CN1 will release the electromagnetic brake, causing a drop. Take drop
preventive measures on the machine side.
The output signal can be forced on/off independently of the servo status. This function is used for output signal
wiring check, etc. This operation must be performed in the servo off state by turning off the servo-on (SON).

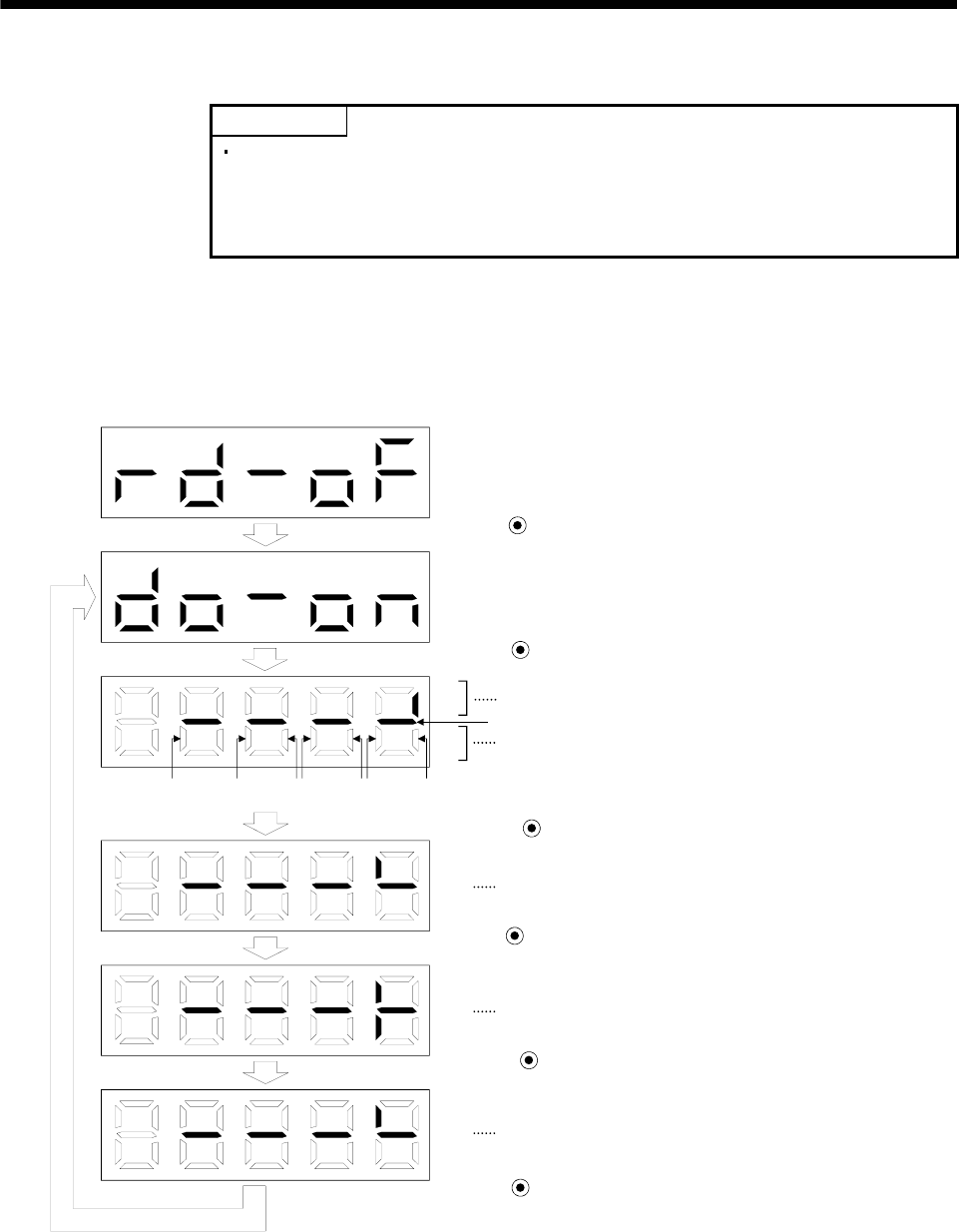

Operation
After power-on, change the display mode to the diagnostic mode using the "MODE" button.
Press UP twice.
Switch on/off the signal below the lit segment.
Indicates the ON/OFF of the output signal. The correspondences
between segments and signals are as in the output signals of the
external I/O signal display.
(Lit: ON, extinguished: OFF)
Press MODE once.
The segment above CN1-pin 24 is lit.
Press UP once.
CN1-pin 24 is switched on.
(CN1-pin 24-DOCOM conduct.)
Press DOWN once.
CN1-pin 24 is switched off.
CN1
33
CN1
48
CN1
22
CN1
25
CN1
23
CN1
24
CN1
49
Always lit
Press SET for longer than 2 seconds.
Press SET for longer than 2 seconds.
