Appendix E. Remote-linked Libraries 623
1st ed., 6/30/04 - 312579601

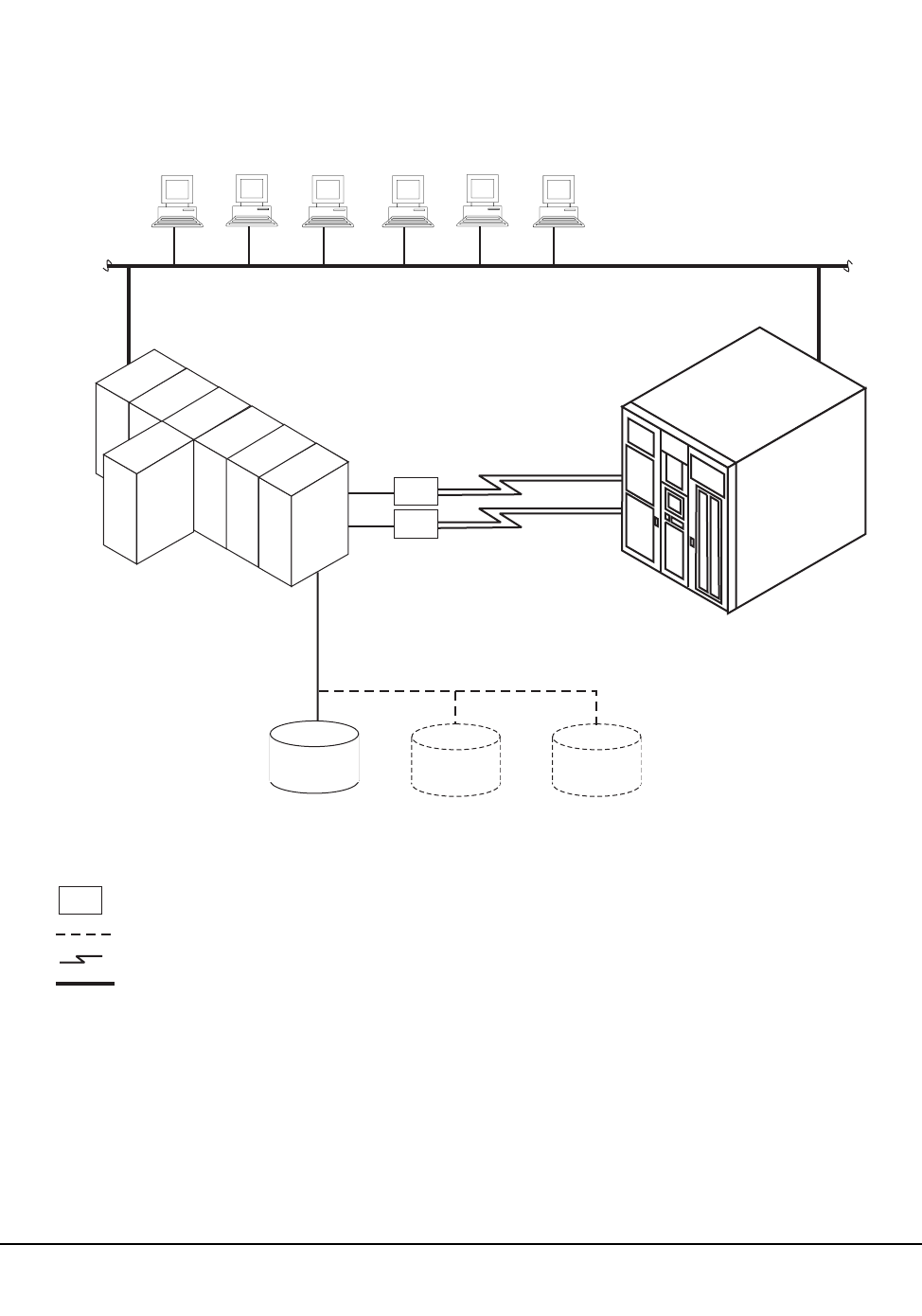

Configuration 2
This configuration consists of one ACS remote-linked to one CPU. The primary,
secondary, and standby control data sets all run on the one CPU.
Multiple Clients on a Local Area Network
C51183
Primary
Control
Data Set
Data Path
ESCD
TCP/IP Path for Robotic Control
SL8500
Library
Corporate Ethernet
Operating
System
MVS/CSC
HSC/SMC
Secondary
Control
Data Set
Standby
Control
Data Set
ESCD
Legend:
= ESCON Director
= Optional
= Data Path
= Ethernet (TCP/IP)
Data Path
ESCD
