9. Dynacolor™ calibration

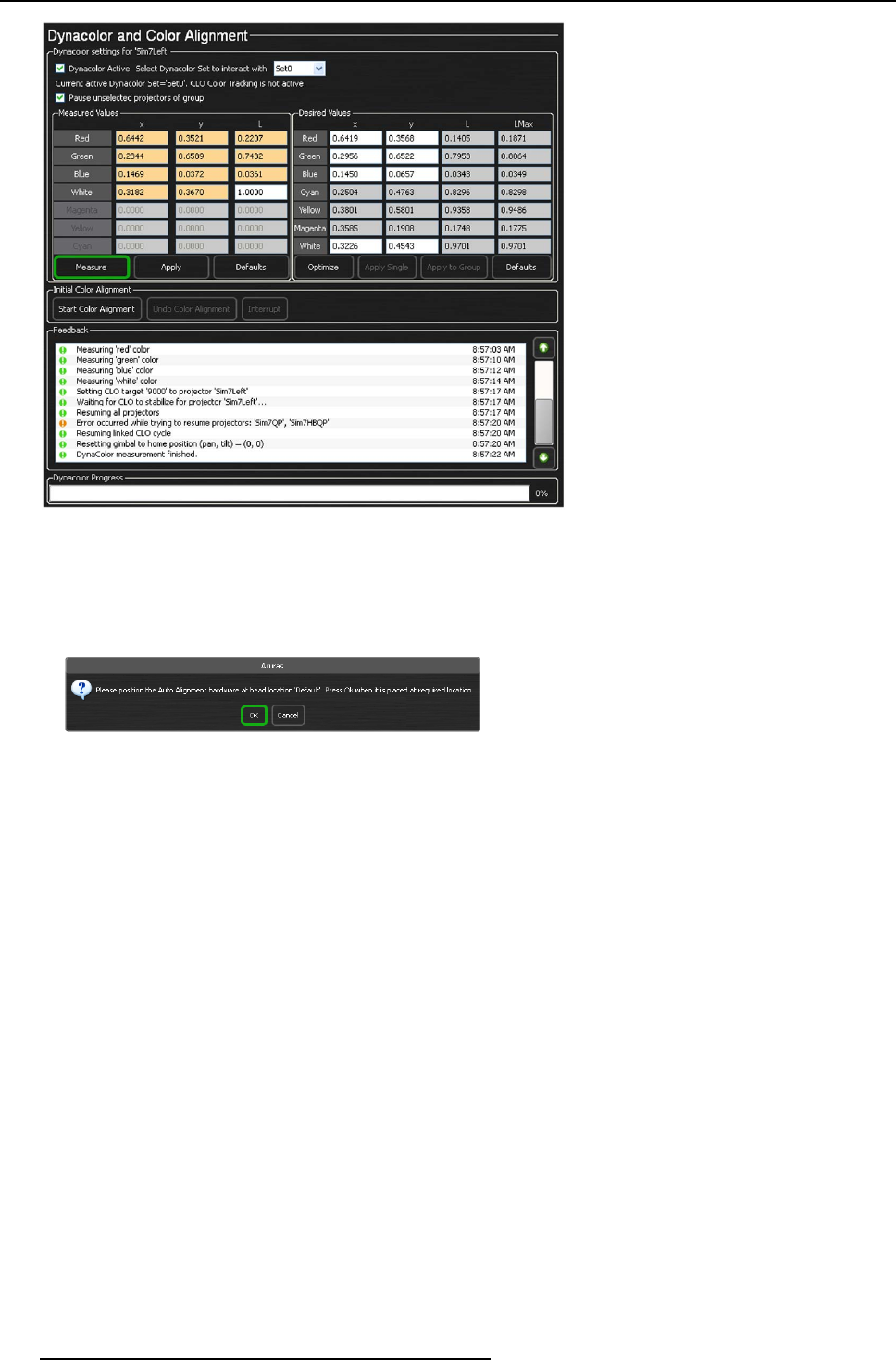

Image 9-1
Measuring the Dynacolor
Note: The m easured luminance values, entered in the L fields are automatically rescaled to end up with L=1 for white.
Note: The values highlighted in orange background color are not uploaded to the projector yet.
Note: If different head locations were used during the definition of Acur as positions, the user will be prompted to move t he
AutoAlignment Head to the corresponding phy sical locations during the Acuras capture pr ocess.
Image 9-2
The automatic calibration process is now started and can take some time.
6. Press Apply to upload the measured values (x, y and L) to the selected projector.
108
R59770509 AUTOALIGNMENT HEAD GEN II 26/11/2013
