Reference Manual
300530EN, Rev BA
September 2012
Rosemount 2410
3-20
Section 3. Installation
In case the last device on the Tankbus has no internal terminator, an external
terminator
(1)
according to FISCO model and Entity model can be used
instead. It can be screwed into a free cable gland on the device.

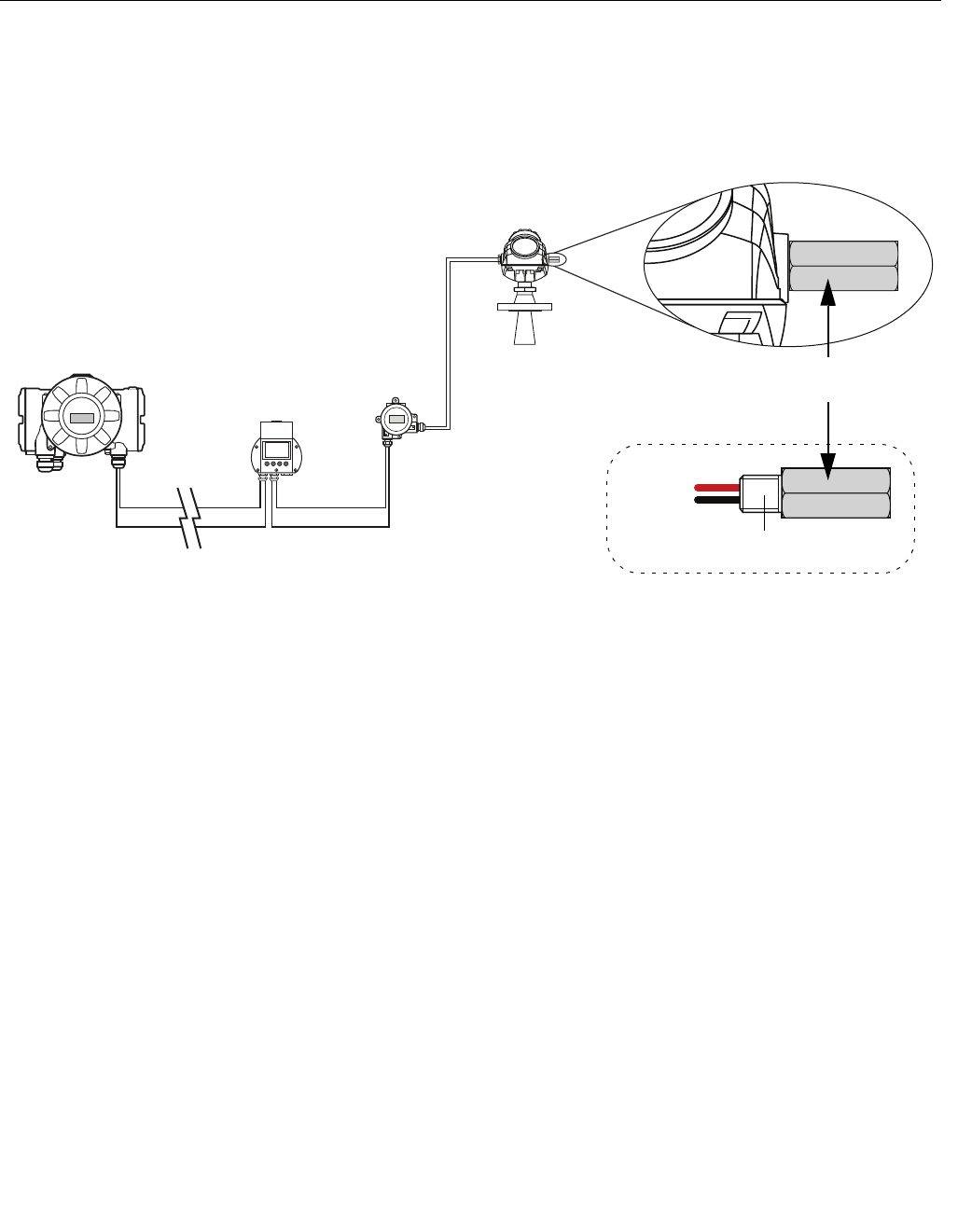

Figure 3-12. Example of Raptor
system with external terminator
(1) Part no. 6853511-494. Contact Emerson Process Management/Rosemount Tank Gauging
for more information.
644 Temperature
Transmitter
External terminator
5400 Level
Transmitter
2410 Tank Hub with
intrinsically safe power
supply, integrated power
conditioner, and built-in
terminator
2230 Display
½ inch NPT
Red +
Black -
