Reference Manual
300530EN, Rev BA
September 2012
C-11
Rosemount 2410
Appendix C. Advanced Configuration
6. In the 22XX ATD/Advanced Parameter Source Configuration window,
ensure that the Vapor Pressure (P3) and Liquid Pressure (P1)
parameters are mapped to the actual source devices on the tank. In case
there is no vapor pressure sensor installed, a manual value can be used
instead.

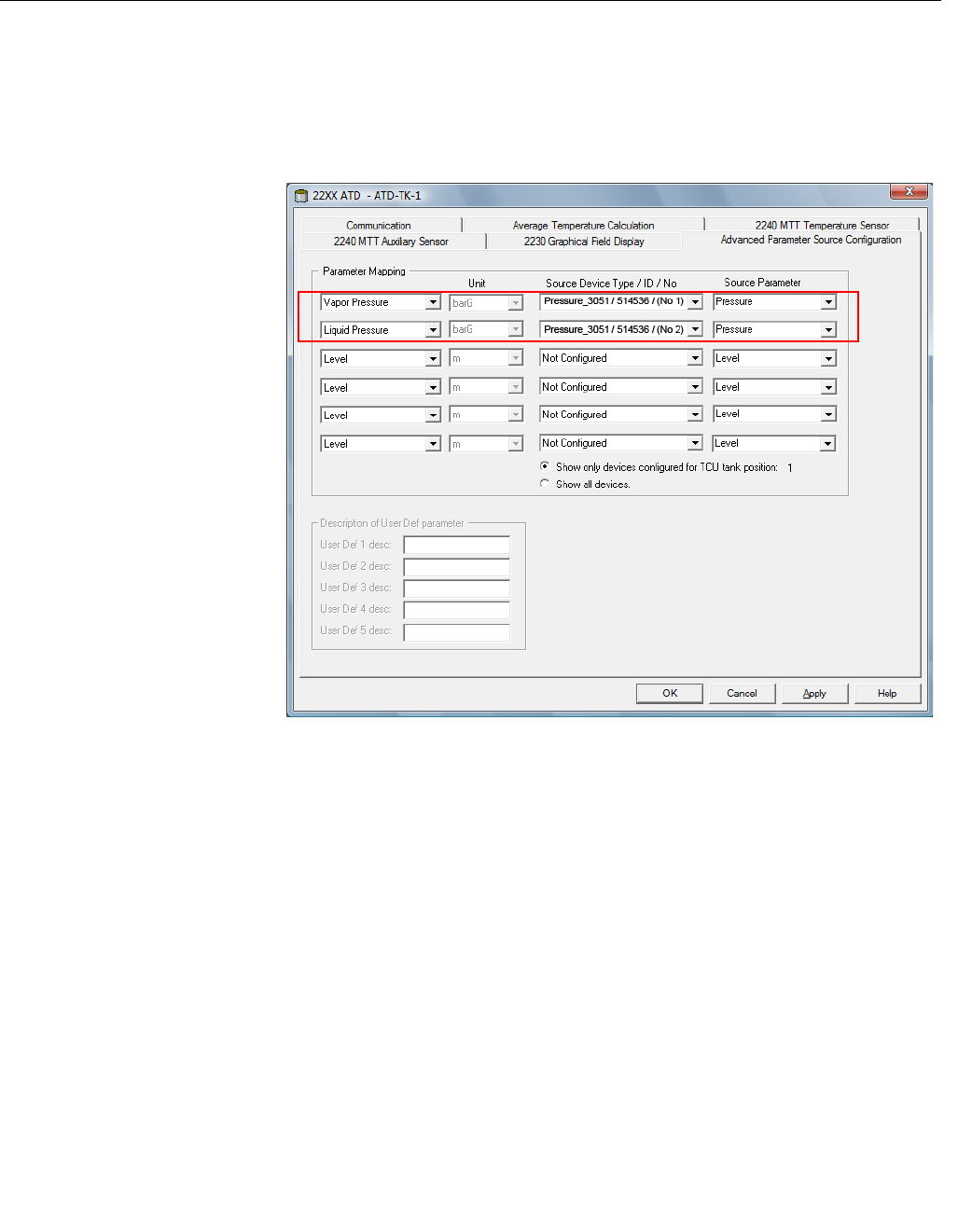

Figure C-7. Pressure
parameters are mapped to the
actual sensors
7. Configure the 2410 Hybrid Density function, see “Hybrid Density
Configuration” on page C-12.
8. Configure the tank as described in the Raptor System Configuration
manual.
