Section 2. Overview
A THUM Adapter, connected to the Intrinsically Safe Secondary
(1)
bus, allows
wireless communication between a 2410 Tank Hub and a Smart Wireless
Gateway.

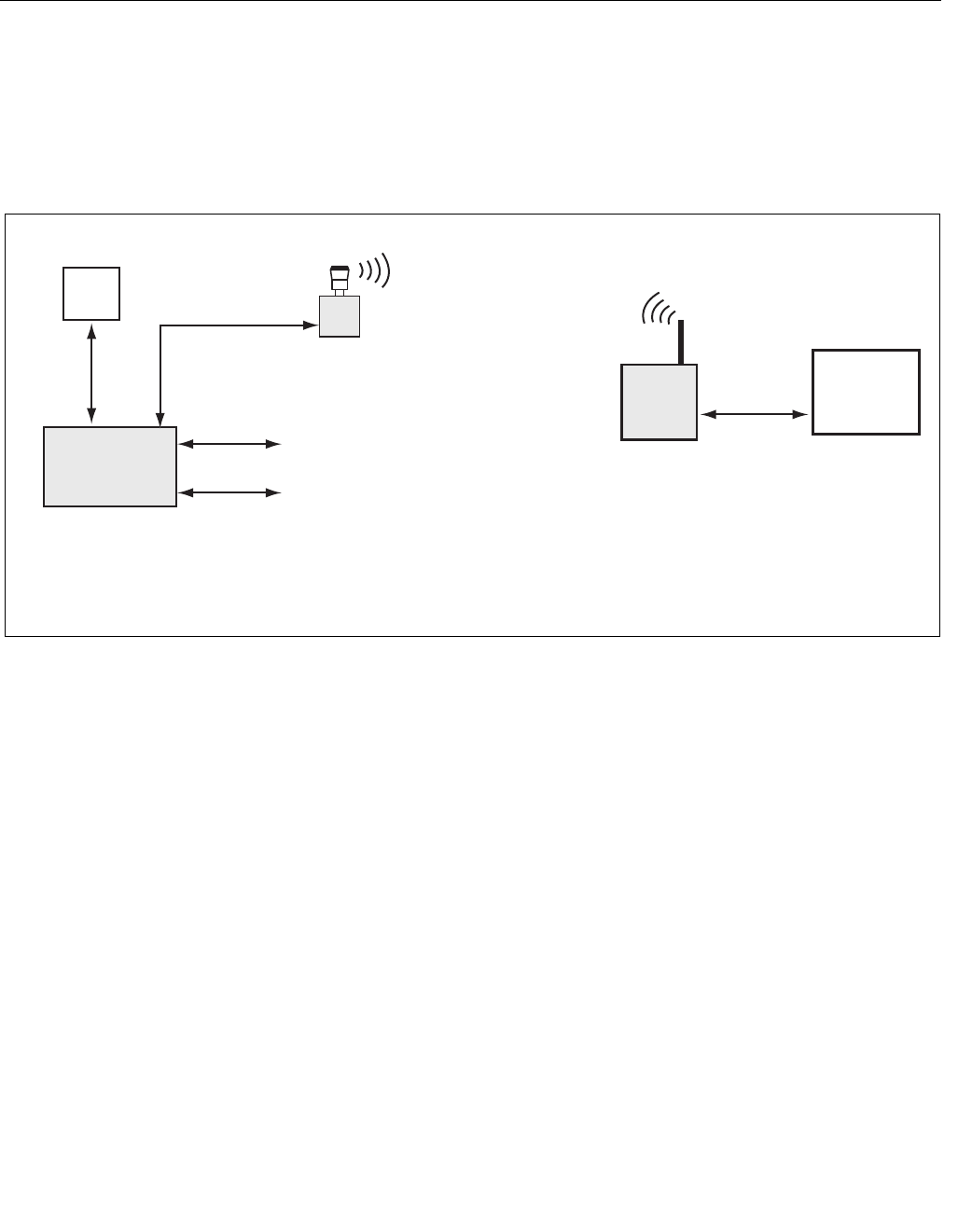

Figure 2-4. Typical configuration
of a Rosemount 2410 with
wireless connection to Smart
Wireless Gateway and PC/Host
(1) The Non-IS Secondary Bus can not be used simultaneously with the IS HART 4-20 mA Sec-
ondary Bus.
Tankbus
Field devices
Rosemount 2410
Primary bus:
TRL2 Modbus
RS485 Modbus
TankMaster
Smart Wireless
THUM™Adapter
Smart Wireless
Gateway
Secondary bus
(1)
(Non-IS):
Enraf and others
HART 4-20 mA analog output/input
Secondary bus (IS):
Wireless HART
