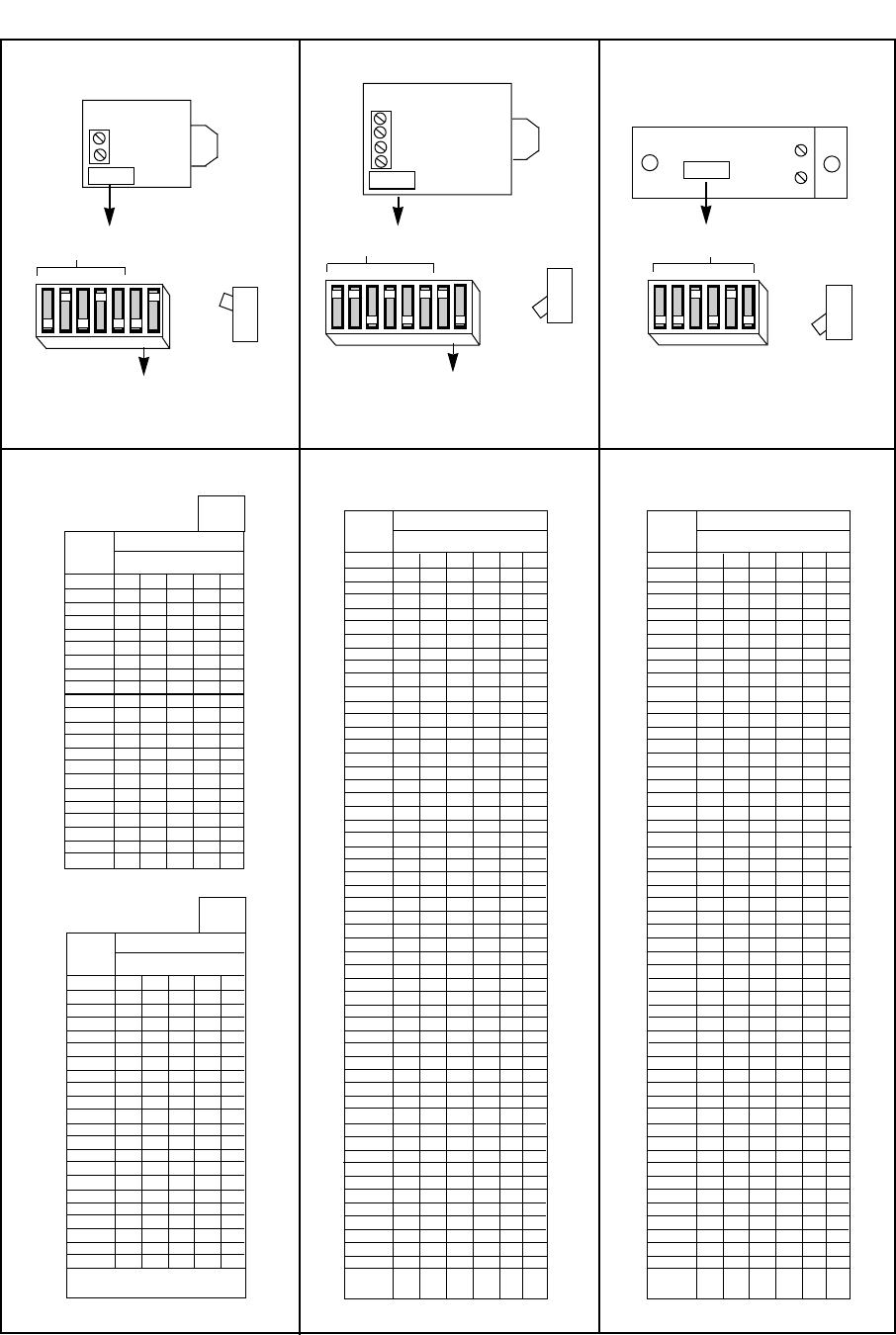

DIP SWITCH TABLES FOR POLLING LOOP DEVICES
4275 PIR
MIRROR
DIP
SHOWN SET FOR
ID 10 (A)
SIDE VIEW
(UP)
1234567
UP
DN
POS 6: UP (A), DN (B) = INST. MODE
DN (A), UP (B) = PULSE COUNT
POS. 7: UP (A), DN (B) = WALK TEST
DN (A), UP (B) = W/T DISABLE
}
4194 REED CONTACT
(SURFACE MOUNT)
DIP
SHOWN SET FOR
ID 10
123456
UP
—
4278 PIR
MIRROR
DIP
SHOWN SET FOR ID 10
SIDE VIEW
(
DN
)
12345678
UP
DN
POS 7: UP = NORMAL MODE
DN = INSTANT MODE
POS. 8: UP = W/T DISABLE
DN = WALK TEST
}
+ —
SIDE VIEW
(
DN
)
THIS TABLE FOR DIPS
WITH WORD “OFF”
A
DEVICE
ID
DIP SWITCH POSITION
12345
10 — UP — UP —
11 —UP—UPUP
12 — UP UP — —
13 — UP UP — UP
14 —UPUPUP—
15 —UPUPUPUP
16 UP————
17 UP — — — UP
18 UP — — UP —
19 UP — — UP UP
20 UP—UP——
21 UP—UP—UP
22 UP — UP UP —
23 UP — UP UP UP
24 UP UP — — —
25 UP UP — — UP
26 UP UP — UP —
27 UP UP — UP UP
28 UP UP UP — —
29 UP UP UP — UP
30 UP UP UP UP —
31 UP UP UP UP UP
DEVICE
ID
DIP SWITCH POSITION
123456
10 UP UP — UP — UP
11 UP UP — UP — —
12 UP UP — — UP UP
13 UP UP — — UP —
14 UP UP — — — UP
15 UP UP — — — —
16 UP — UPUPUPUP
17 UP — UP UP UP —
18 UP—UPUP—UP
19 UP — UP UP — —
20 UP — UP — UP UP
21 UP—UP—UP—
22 UP—UP——UP
23 UP—UP———
24 UP — — UP UP UP
25 UP — — UP UP —
26 UP — — UP — UP
27 UP — — UP — —
28 UP — — — UP UP
29 UP — — — UP —
30 UP————UP
31 UP—————
32 — UPUPUPUPUP
33 — UPUPUPUP—
34 — UPUPUP—UP
35 — UPUPUP——
36 — UP UP — UP UP
37 — UP UP — UP —
38 — UP UP — — UP
39 —UPUP———
40 — UP — UPUPUP
41 —UP—UPUP—
42 —UP—UP—UP
43 —UP—UP——
44 — UP — — UP UP
45 —UP— —UP—
46 — UP — — — UP
47 —UP————
48 — — UP UP UP UP
49 — — UP UP UP —
50 — — UP UP — UP
51 — — UP UP — —
52 — — UP — UP UP
53 — —UP—UP—
54 — — UP — — UP
55 ——UP———
56 — — — UPUPUP
57 — — — UP UP —
58 — — —UP—UP
59 — — — UP — —
60 — — — — UP UP
61 ————UP—
62 —————UP
63 ——————
BIT
VALUE: 32 16 8 4 2 1
DEVICE
ID
DIP SWITCH POSITION
123456
10 — — UP — UP —
11 — — UP — UP UP
12 — — UP UP — —
13 — — UP UP — UP
14 — — UP UP UP —
15 — — UP UP UP UP
16 —Up————
17 — UP — — — UP
18 — UP — — UP —
19 — UP — — UP UP
20 — UP — UP — —
21 — UP — UP — UP
22 — UP — UP UP —
23 — UP — UP UP UP
24 —UPUP———
25 — UP UP — — UP
26 — UP UP — UP —
27 — UP UP — UP UP
28 — UPUPUP——
29 — UPUPUP—UP
30 — UPUPUPUP—
31 — UPUPUPUPUP
32 UP—————
33 UP————UP
34 UP — — — UP —
35 UP — — — UP UP
36 UP — — UP — —
37 UP — — UP — UP
38 UP — — UP UP —
39 UP — — UP UP UP
40 UP—UP———
41 UP — UP — — UP
42 UP — UP — UP —
43 UP — UP — UP UP
44 UP — UP UP — —
45 UP — UP UP — UP
46 UP — UP UP UP —
47 UP — UPUPUPUP
48 UP UP — — — —
49 UP UP — — — UP
50 UP UP — — UP —
51 Up UP — — UP UP
52 UP UP — UP — —
53 UP UP — UP — UP
54 UP UP — UP UP —
55 UP UP — UP UP UP
56 UP UP UP — — —
57 UP UP UP — — UP
58 UP UP UP — UP —
59 UP UP UP — UP UP
60 UP UP UP UP — —
61 UP UP UP UP — UP
62 UP UP UP UP UP —
63 UP UP UP UP UP UP
BIT
VALUE: 32 16 8 4 2 1
THIS TABLE FOR DIPS
WITH WORD “ON”
B
DEVICE
ID
DIP SWITCH POSITION
12345
10 UP—UP—UP
11 UP—UP——
12 UP — — UP UP
13 UP — — UP —
14 UP — — — UP
15 UP————
16 — UPUPUPUP
17 — UPUPUP—
18 — UP UP — UP
19 — UP UP — —
20 —UP—UPUP
21 —UP—UP—
22 — UP — — UP
23 — UP — — —
24 — — UP UP UP
25 — — UP UP —
26 — — UP — UP
27 — — UP — —
28 — — — UP UP
29 — — — UP —
30 ————UP
31 —————
BIT
VALUE: 16 8 4 2 1
DIP SWITCH TABLES FOR POLLING LOOP DEVICES
