4. Packaging

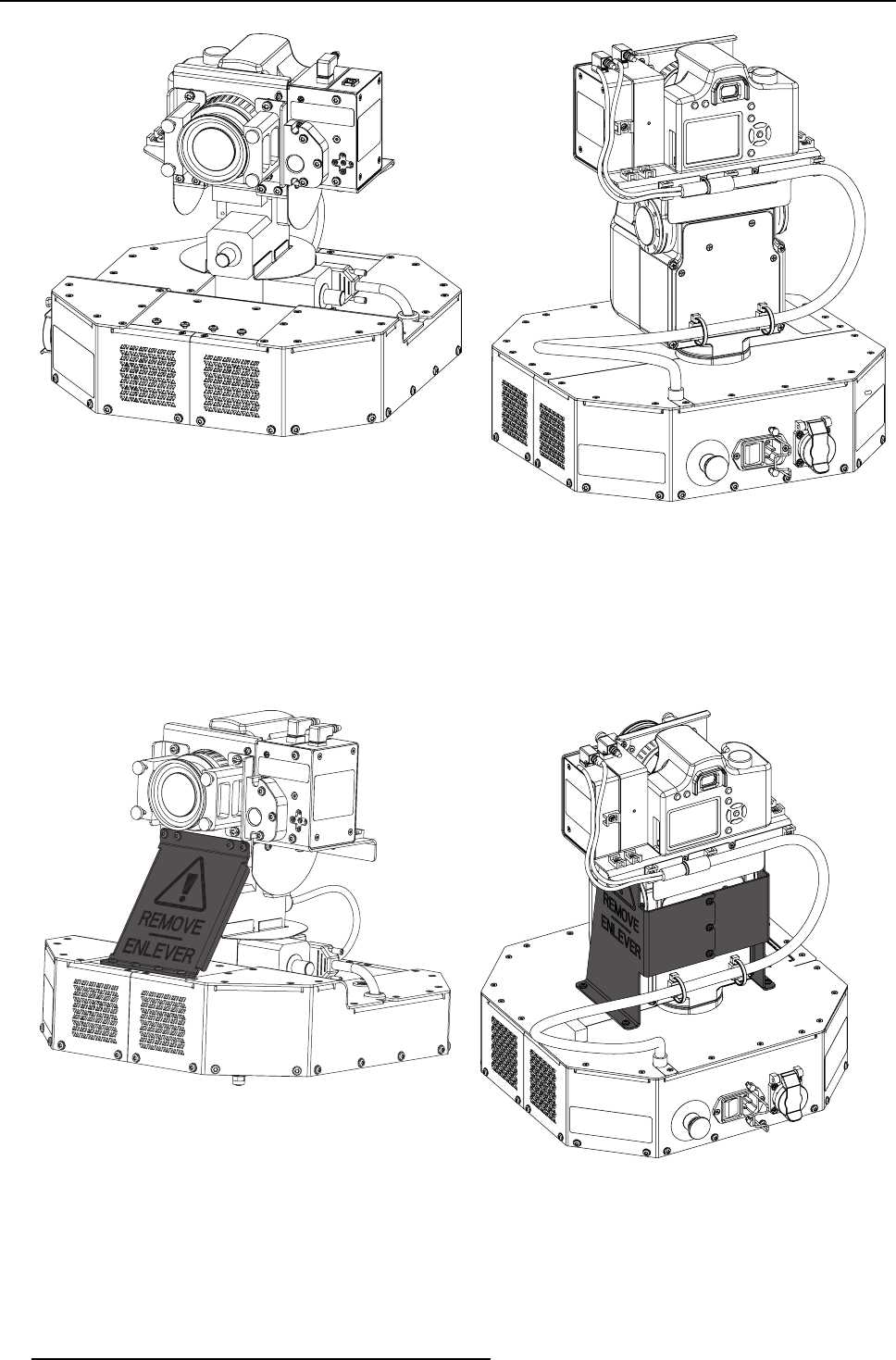

Image 4-7
Orientation to x shipping bracket: standard version
Image 4-8
Orientation to x shipping bracket: rugged version
Tip: On the standard version, this positioning can be done manually (Pan knob and Tilt knob) or through the X DS RACU user
interface.
2. Power off the system and remove the power cord.
3. Disconnect the AutoAlignment Head.
4. Remove the AutoAlignment Head from its support.
5. Fix the shipping bracket to the unit.
Image 4-9
Shipping bracket: standard version
Image 4-10
Shipping bracket: rugged version
Tip: To install the shipping bracket, follow the removal procedure in reverse order.
