10. Operating Acuras
By d efault, the patterns on which the autom atic brightness and color measu remen ts are perform ed are gen-
erated in the projectors.
How to start the Acuras capture process?
1. Select a projector from a group for which you want to perform an Acuras Capture.
2. Optional: Execute Gray Level Correction for the selected projector(s) of a group.
Note: For optimum performance of the system, it is advised to execute Gray Level C orrection before the manual system align-
ment and c reation of the Golden Alignment. See "Starting the G ray Level Correction process", page 119.

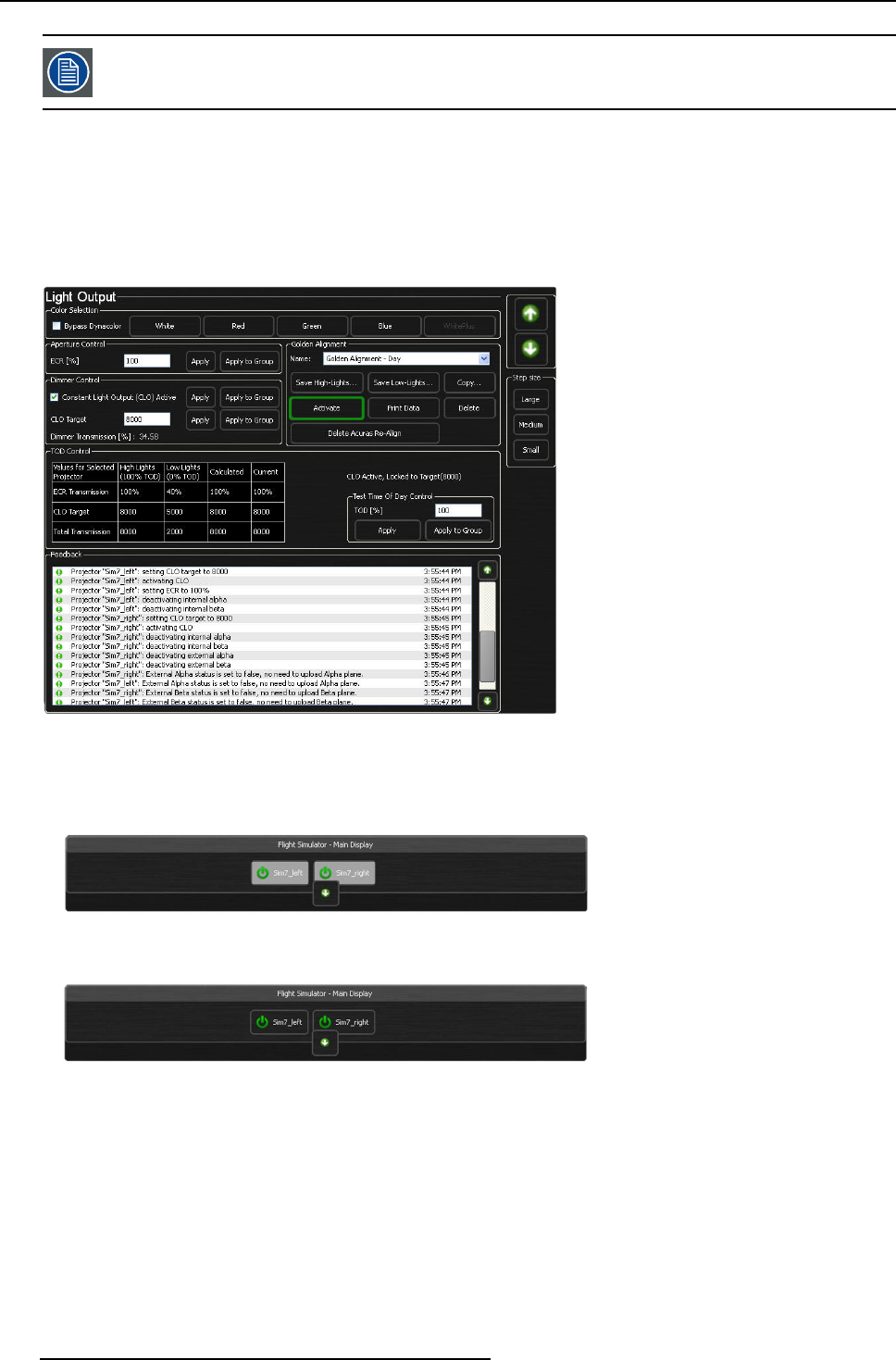

3. Navigate to the Light Output page and activate a Golden Alignment set.
Image 10-13
Note: The active G olden Alignment set nam e appears at the top of the Acuras page. In case no G olden Alignment is selec ted,
capture can n ot be executed.
4. Navigate to the A curas page and make either of the selections:
- If you wish to calibrate more than one projector, select the desired projectors or select all projectors in that group.
Image 10-14
selecting the desired projector(s)
- select group, if you wish to calibrate all projectors of this group.
Image 10-15
group selected
5. Press Start Capture.
122
R59770509 AUTOALIGNMENT HEAD GEN II 26/11/2013
