EQUIPMENT CHECK LIST
This Equipment Check List has been provided so that
the Installer can determine if all parts have been provided
for the boiler ordered. It covers standard equipment for
Knockdown boilers, 4 thru 18 section models. Optional
equipment ordered will be in addition to, or in lieu of,
equipment shown below.
To simplify boiler assembly, instructions refer to carton
designations located in box on Bar Code Labels, see Figure
1a. When instructed, locate and open specied carton.
Some cartons use all contents immediately and others use
parts throughout the assembly procedure until depleted.

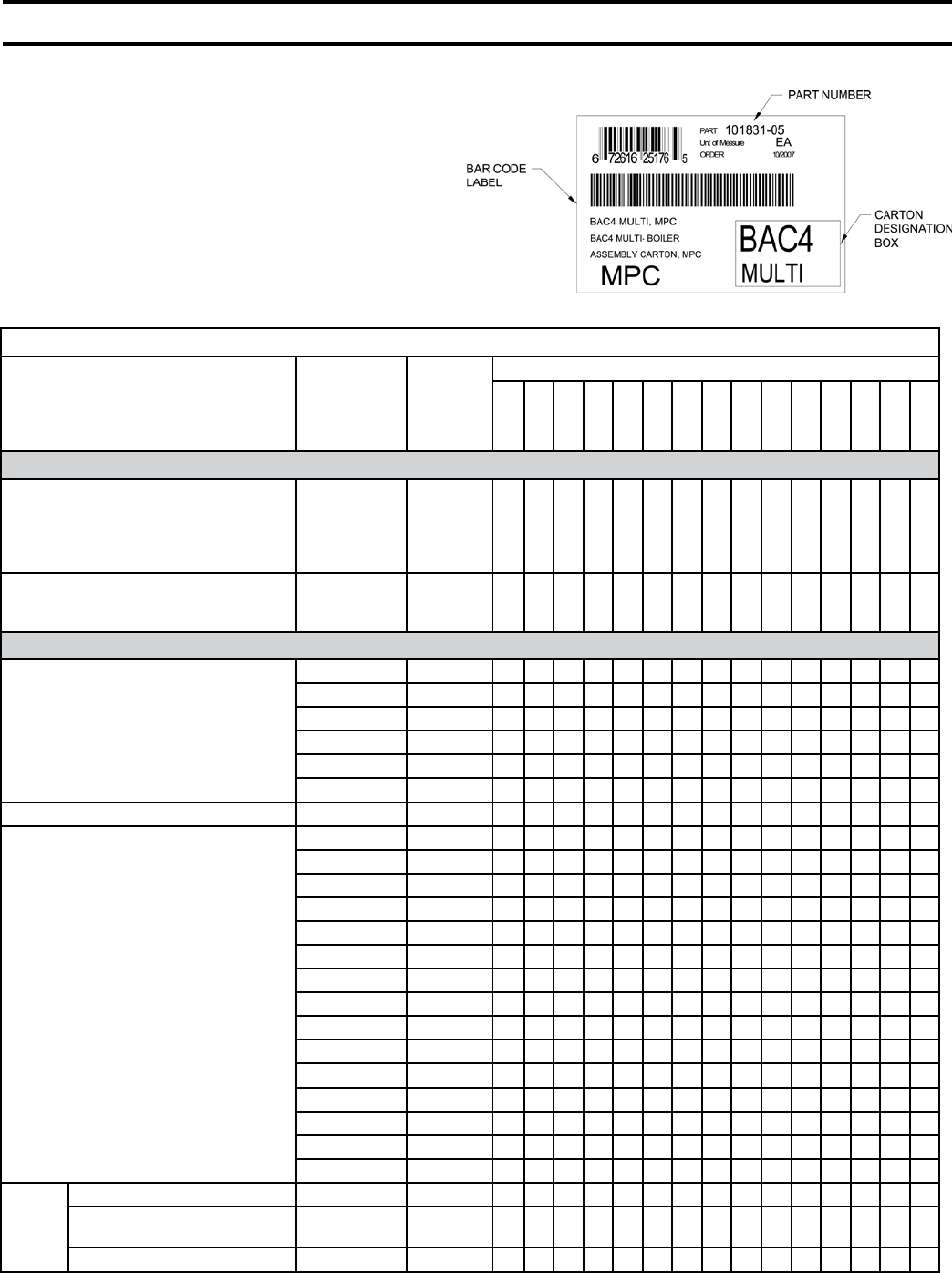

Figure 1a: Carton Identication
KNOCKDOWN BOILER - EQUIPMENT CHECK LIST
Component Description
Carton
Designation
on Bar Code
Label
Part
Number
Qty. Req’d. Per Boiler Size
4 Sect.
5 Sect.
6 Sect.
7 Sect.
8 Sect.
9 Sect.
10 Sect.
11 Sect.
12 Sect.
13 Sect.
14 Sect.
15 Sect.
16 Sect.
17 Sect.
18 Sect.
Castings (Shipped Loose - Field Assembly)
MPC Common Castings & Parts Skid
(Includes Front Section, Rear Section,
Burner Swing Door Assembly,
Rear Flue Collector and
Miscellaneous Common Parts Carton)
CP-S 101829-01 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Center Section - Machined
[Quantity shown shipped on separate
skid(s), Maximum 6 per skid]
MPC-C 100657-01 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Parts Cartons
Boiler Assembly Cartons
BAC4 101831-01 1 1 1 1
BAC5 101831-02 1 1 1 1
BAC6 101831-03 1 1 1
BAC7 101831-04 1 1 1 1
BAC4 Multi 101831-05 1 1 1 1 1 2
BAC5 Multi 101831-06 1 1 1 1 1 1 1 1 2 1
Supply & Return Manifold Carton S/RM CI 103818-01 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Return Water Mixing Tube Cartons
Restricted Clearance
RWMT 4 RC 102804-04 1
RWMT 5 RC 102804-05 1
RWMT 6 RC 102804-06 1
RWMT 7 RC 102804-07 1
RWMT 8 RC 102804-08 1
RWMT 9 RC 102804-09 1
RWMT 10 RC 102804-10 1
RWMT 11 RC 102804-11 1
RWMT 12 RC 102804-12 1
RWMT 13 RC 102804-13 1
RWMT 14 RC 102804-14 1
RWMT 15 RC 102804-15 1
RWMT 16 RC 102804-16 1
RWMT 17 RC 102804-17 1
RWMT 18 RC 102804-18 1
Jacket
Frame
Cartons
Jacket Frame (Front/Rear Rails) JF-1 101834-01 1 1 1 1 1 1 1 1
Jacket Frame
(Front/Center/Rear Rails)
JF-2 101834-02 1 1 1 1 1 1 1
Jacket Frame (Center Rails) JF-3 101834-03 1 1 1 1 1 1 1
(Continued)
NOTE: Only factory packaged and retested units are eligible to bear the UL listing mark.
