Digital Video Encoder Devices
Digital video encoder devices refer to MPEG2 video encoder devices (WJ-GXE900). They connect to the CPU through an
Ethernet switching hub in an IP based network. Refer to the Operating Instructions of MPEG2 encoder/MPEG2 decoder.
●

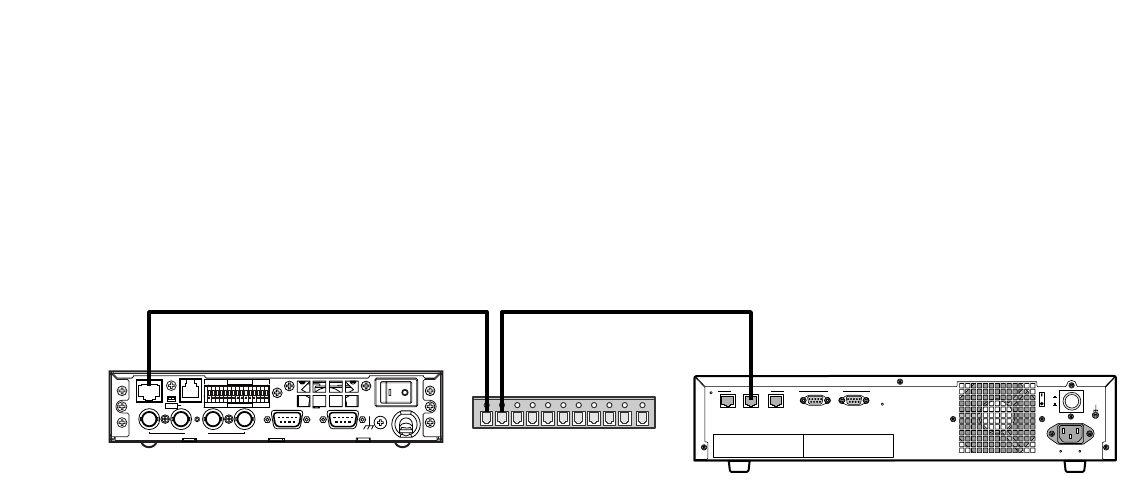

Connect with CPU
The video encoders connect with the CPU through its Ethernet port and one or more switching hub units. The system can sup-
port up to 256 video encoder devices.
●
Setup from Admin Console
In order to be added to the GX System, an encoder device must be entered into the digital device database. In the admin con-
sole, select Switch Nodes from the Domain menu, select Digital (GX) from the sub-menu that appears, and then enter the infor-
mation for the encoder device. Please note, you need to know the Rotary Switch (SW1 A, B, C) readings from the encoder
device. Rotary Switch settings must be unique for all the encoder and decoder devices. Refer to the Admin Console User's
Guide.
POWER
ON OFF
SIGNAL
AUDIO INVIDEO OUTVIDEO IN
100BASE-TX RS-485
TERM
1
GND
23
ON OFF
4
10BASE-T/100BASE-TX
SERIAL
21OTHERSYSTEM
DEVICE
SYSTEM
CONTROLLER
POWER
ON
AC IN
OFF
SIGNAL GND
ALARM IN
TRIGGER OUT
RESET
4321G4321GGV
+
–
G
Switching HUB
WJ-MPU955A
WJ-GXE900
192.168.200.200
