WARNING
The installations described in the diagram should be
made by qualified service personnel or system
installers.
■
Mounting into the Rack
The CPU (WJ-MPU955A) should be mounted into the rack
as shown in the following diagram. Here are the steps:

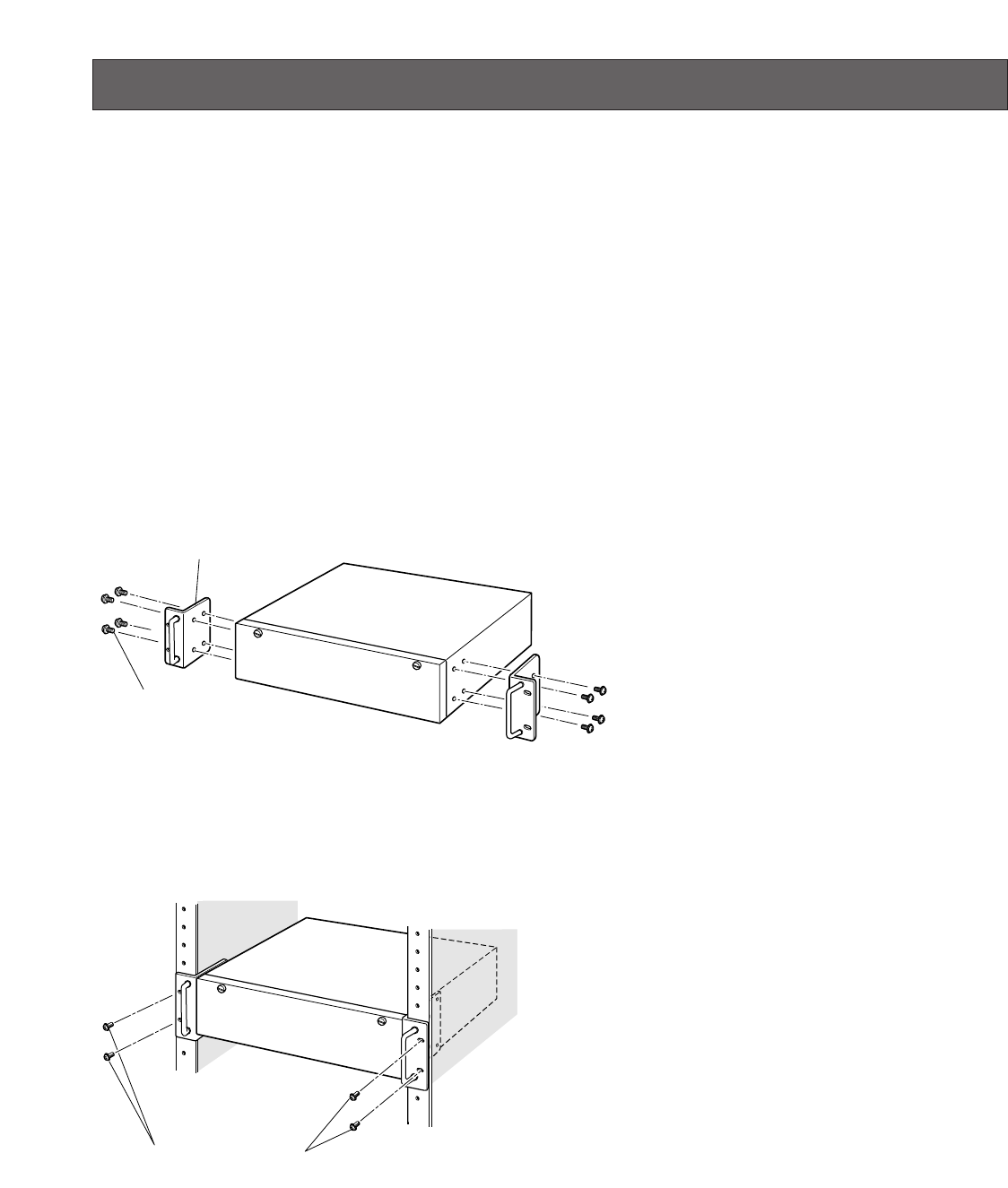

1. Install the rack mounting brackets on both sides of the
unit.
Using the mounting screws (8 pcs.) for the rack mount-
ing brackets, fix them firmly.
2. Mount the unit into the rack by fixing the rack mounting
screws (locally procured: 4 pcs). (Refer to the following
illustration.)
Important:
• The cooling fan inside the unit is perishable and must
be replaced periodically.
• If the rack is subject to vibration, secure the rear of the
unit to the rack by using additional mounting brackets
(locally procured).
• To avoid loosening, secure the mounting screws surely.
• Mount the unit into the rack with a space equivalent to
approx. 1 unit (44 mm) or more to separate from other
devices.
• To prevent the unit from overheating, do not block the
ventilation openings or slots in the cover.
Mounting brackets (x2)
(Supplied)
Mounting screws (x8)
(Supplied)
Installations
C
entral P
rocessing U
nit W
J-M
PU
955A
Rack mounting screws
(Local content)
