528150-YTG-G-1210
Johnson Controls Unitary Products 121

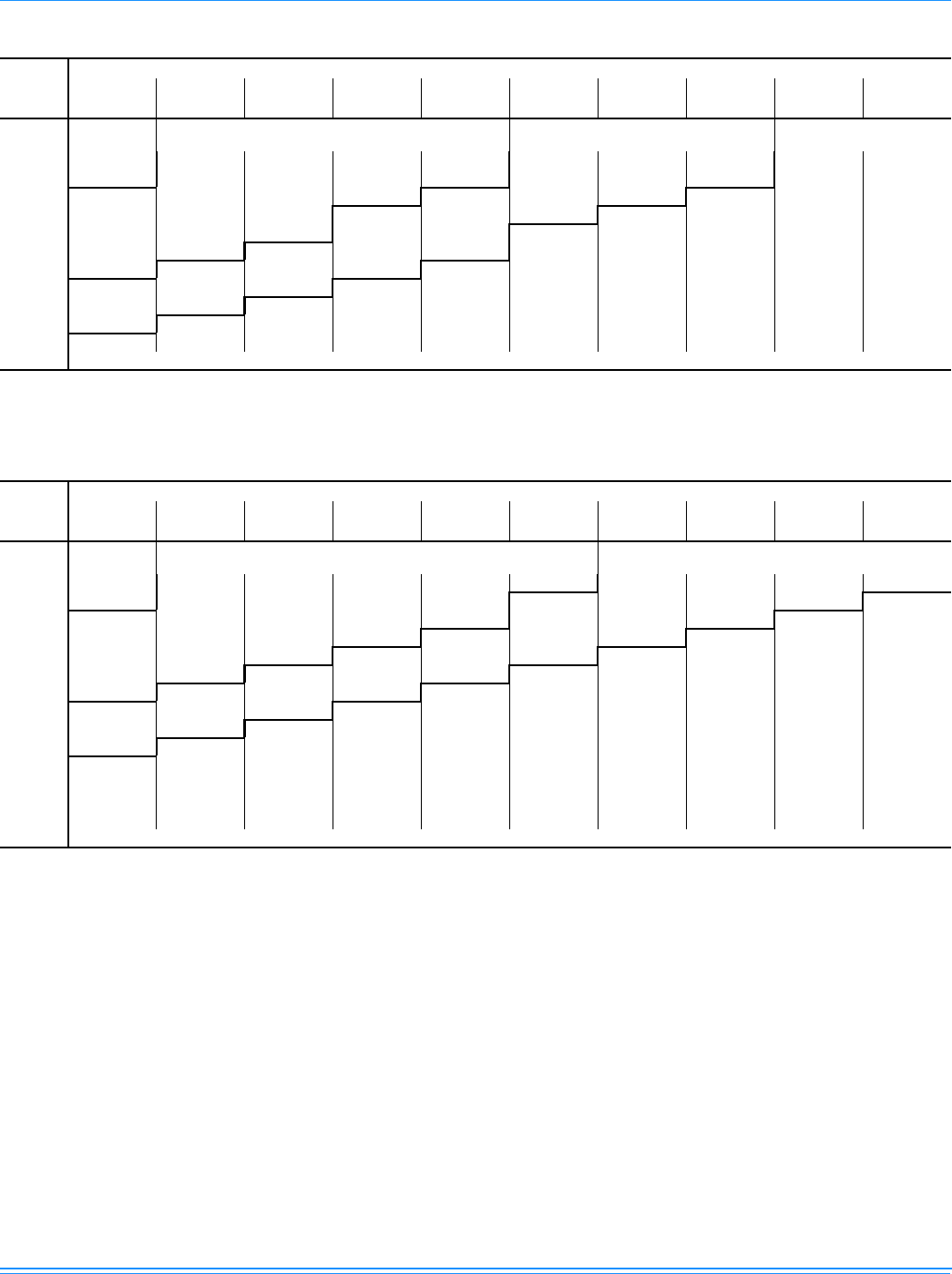

ZR120 (10 Ton) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2 HP & Field
Supplied Drive
Standard 2 HP & Drive Hi Static 3 HP & Drive
2600 755 0.95 808 1.08 858 1.20 907 1.32 954 1.44 1000 1.55 1044 1.65 1087 1.76 1129 1.87 1171 1.98
2800 779 1.09 832 1.22 882 1.35 931 1.46 978 1.58 1024 1.69 1068 1.80 1111 1.90 1153 2.01 1195 2.12
3000 806 1.25 859 1.38 910 1.51 958 1.63 1005 1.74 1051 1.85 1095 1.96 1138 2.07 1181 2.17 1222 2.28
3200 837 1.44 889 1.57 940 1.69 989 1.81 1036 1.93 1081 2.04 1125 2.14 1168 2.25 1211 2.36 1252 2.47
3400 870 1.65 922 1.78 973 1.90 1022 2.02 1069 2.13 1114 2.24 1158 2.35 1202 2.46 1244 2.57 1286 2.68
3600 906 1.88 959 2.01 1009 2.13 1058 2.25 1105 2.36 1150 2.47 1195 2.58 1238 2.69 1280 2.80 1322 2.91
3800 945 2.13 998 2.26 1048 2.38 1097 2.50 1144 2.61 1190 2.72 1234 2.83 1277 2.94 1319 3.05 1361 3.16
4000 987 2.40 1040 2.53 1090 2.66 1139 2.78 1186 2.89 1231 3.00 1276 3.11 1319 3.21 1361 3.32 1403 3.43
4200 1032 2.70 1084 2.83 1135 2.95 1184 3.07 1231 3.18 1276 3.29 1320 3.40 - -----
440010793.0111323.1511823.2712313.39------------
460011293.35------------------
3 HP & Field Supplied Drive
ZR150 (12.5 Ton) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3 HP & Field
Supplied Drive
Standard 3 HP & Drive Hi Static 5 HP & Drive
3200 837 1.44 889 1.57 940 1.69 989 1.81 1036 1.93 1081 2.04 1125 2.14 1168 2.25 1211 2.36 1252 2.47
3400 870 1.65 922 1.78 973 1.90 1022 2.02 1069 2.13 1114 2.24 1158 2.35 1202 2.46 1244 2.57 1286 2.68
3600 906 1.88 959 2.01 1009 2.13 1058 2.25 1105 2.36 1150 2.47 1195 2.58 1238 2.69 1280 2.80 1322 2.91
3800 945 2.13 998 2.26 1048 2.38 1097 2.50 1144 2.61 1190 2.72 1234 2.83 1277 2.94 1319 3.05 1361 3.16
4000 987 2.40 1040 2.53 1090 2.66 1139 2.78 1186 2.89 1231 3.00 1276 3.11 1319 3.21 1361 3.32 1403 3.43
4200 1032 2.70 1084 2.83 1135 2.95 1184 3.07 1231 3.18 1276 3.29 1320 3.40 1364 3.51 1406 3.62 1447 3.73
4400 1079 3.01 1132 3.15 1182 3.27 1231 3.39 1278 3.50 1324 3.61 1368 3.72 1411 3.83 1453 3.93 1495 4.05
4600 1129 3.35 1182 3.48 1232 3.61 1281 3.72 1328 3.84 1374 3.95 1418 4.06 1461 4.16 1503 4.27 1545 4.38
4800 1182 3.71 1235 3.84 1285 3.96 1334 4.08 1381 4.20 1426 4.31 1471 4.41 1514 4.52 1556 4.63 1598 4.74
5000 1237 4.08 1290 4.22 1340 4.34 1389 4.46 1436 4.57 1481 4.68 1526 4.79 1569 4.90 1611 5.01 1653 5.12
5200 1294 4.48 1347 4.61 1398 4.74 1446 4.85 1493 4.97 1539 5.08 1583 5.19 1626 5.29 1669 5.40 1710 5.51
5400 1354 4.89 1407 5.03 1457 5.15 1506 5.27 1553 5.38 1599 5.49 1643 5.60 1686 5.71 ----
560014165.3314695.4615195.5815685.70------------
5800--------------------
5 HP & Field Supplied Drive
