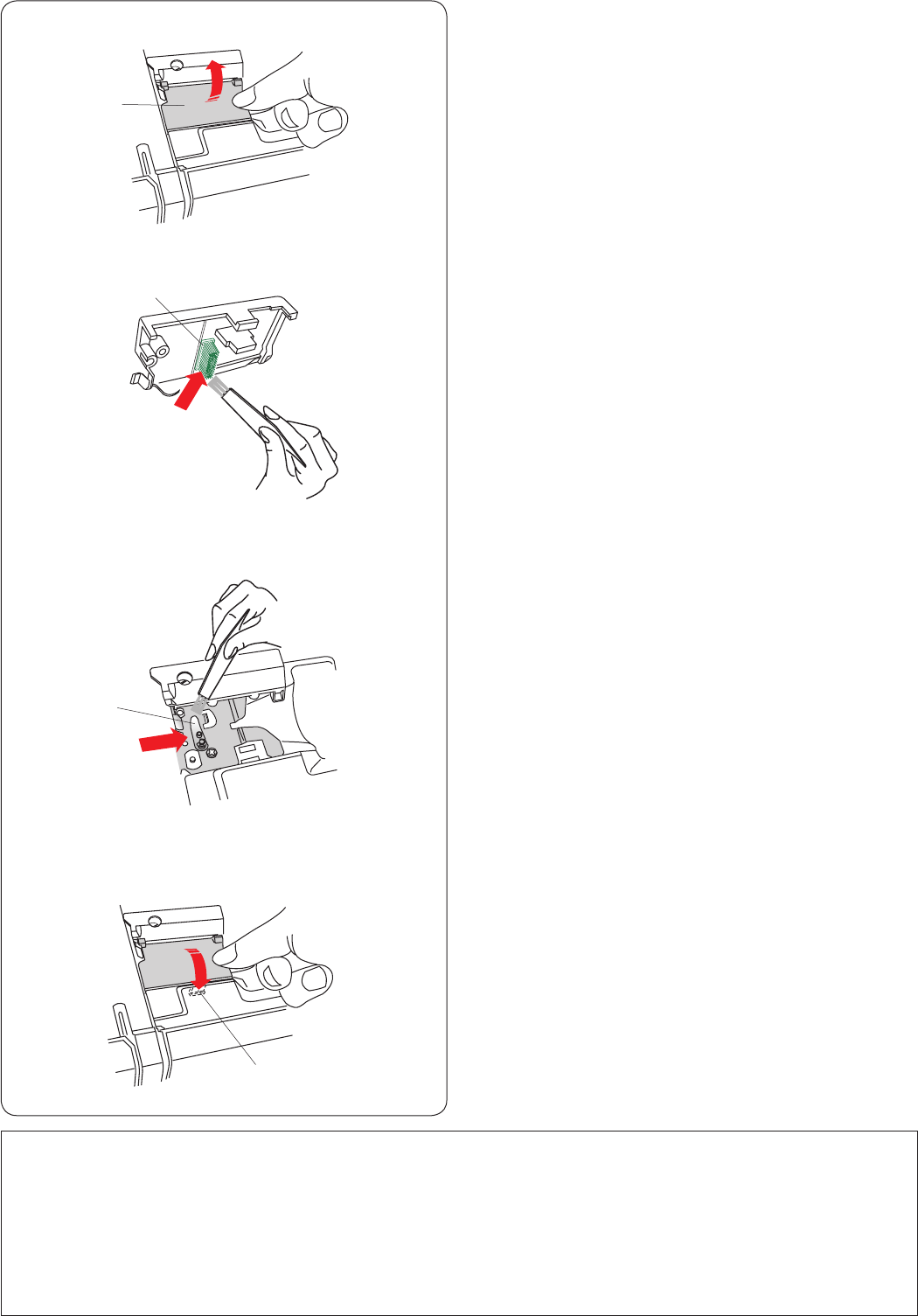

Cleaning the Inside of the Thread Guide
Clean the inside of the thread guide plate under the top
cover at least once a month.
Remove the needle thread and remove the thread guide
plate by pulling it up.
q
Thread guide plate
Remove lint and dust from the brush on the underside of
the thread guide plate using a lint brush.
w
Brush on the thread guide plate
Clean the area around and under the pre-tension leaf
with the lint brush.
e
Pre-tension leaf
Set the thread guide plate on the machine, inserting the
tenons into the slots. Push the thread guide plate down to
snap it in place.
r
Tenon
q
w
e
r
IMPORTANT:
To carry the sewing machine, hold the carrying handle with your hand, and support the sewing machine with the
other hand.
Clean the outside of the machine with a soft cloth. Do not use chemical solvents.
Store the machine in cool and dry place.
Do not store the machine in an area of high humidity, near a radiator or in direct sunlight.
The power supply cord and embroidery hoops can be stored in the semi-hard fabric cover.
Make sure to store the embroidery carriage arm before turning off the power switch.
