Adjusting the lateral position
z Loosen the setscrews w under the switch.
x Slide the switch to left or right, and fix it at the
desired position by tightening the setscrews using a
Phillips head screwdriver.

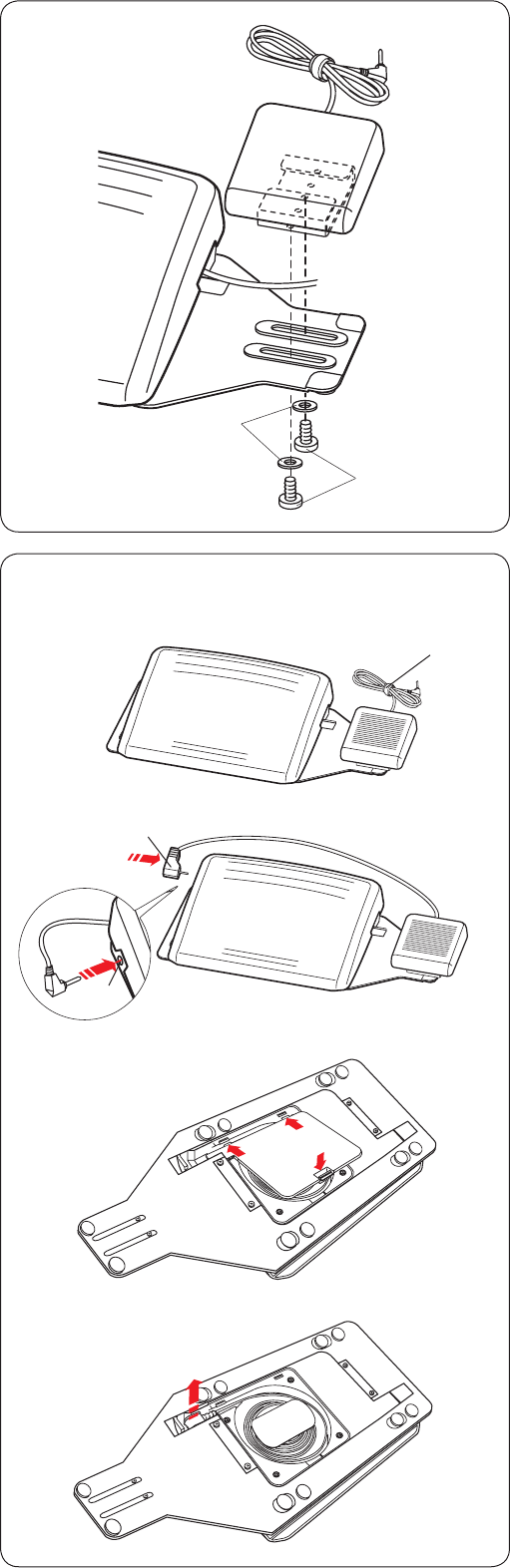

Adjusting the longitudinal position
z Remove the setscrews w and washers q.
x Attach the switch to the desired position and fix it
with the setscrews and washers.
Tighten the setscrews securely using a Phillips head
screwdriver.
z Remove the cable tie q from the cable.
q
e
w
x If you wish to use the thread cutter switch, you need
to connect it with the foot control.
Insert the pin connector w into the jack e on the foot
control.
c Turn the foot control upside down.
Open the cover of the foot control.
Foot Control Preparation
v Draw out the cable from the foot control.
z
x
c
v
