x Swing out the carriage arm until it locks in the fully
extended position.

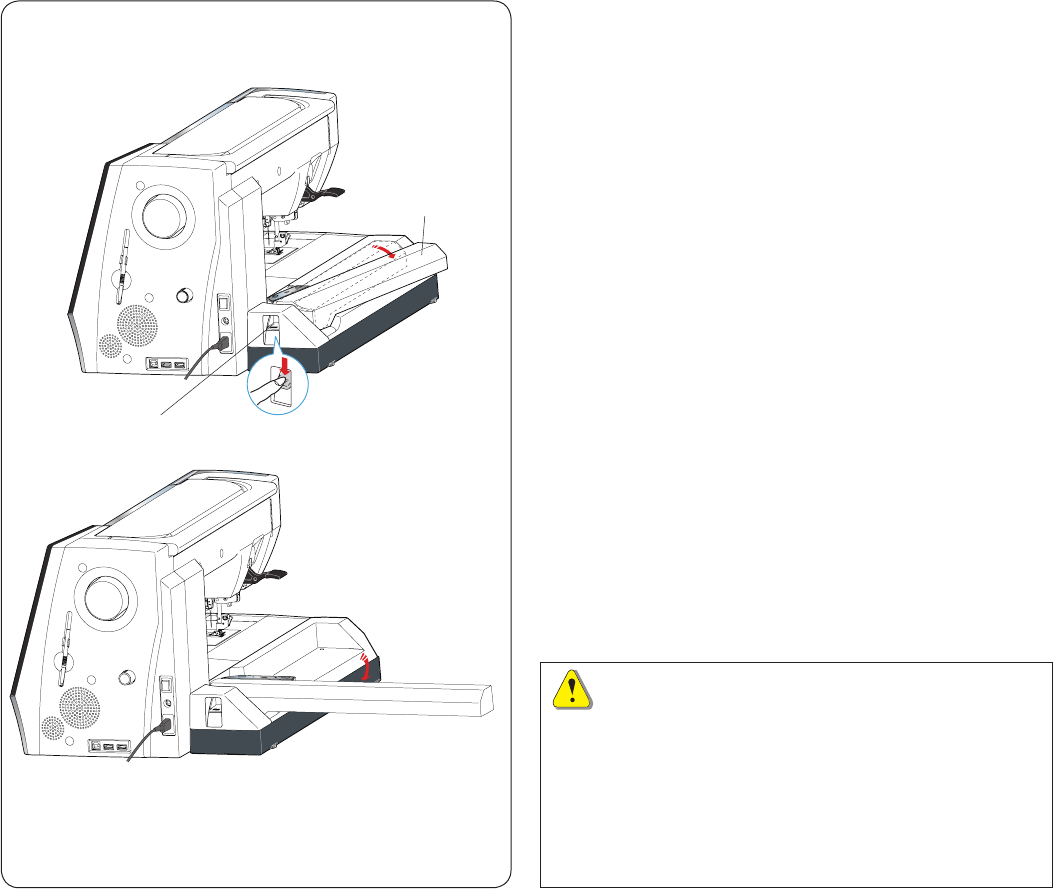

Extending the carriage arm
z Press down the carriage arm release lever to extend
the carriage arm.
q Carriage arm release lever
w Carriage arm
w
q
CAUTION:
Do not push on the carriage arm when it is extended.
Do not forcefully move the carriage or carriage arm by
hand.
Do not hold the carriage or carriage arm while it is
moving.
Failure to follow these instructions may result in
damage to the carriage mechanism.
