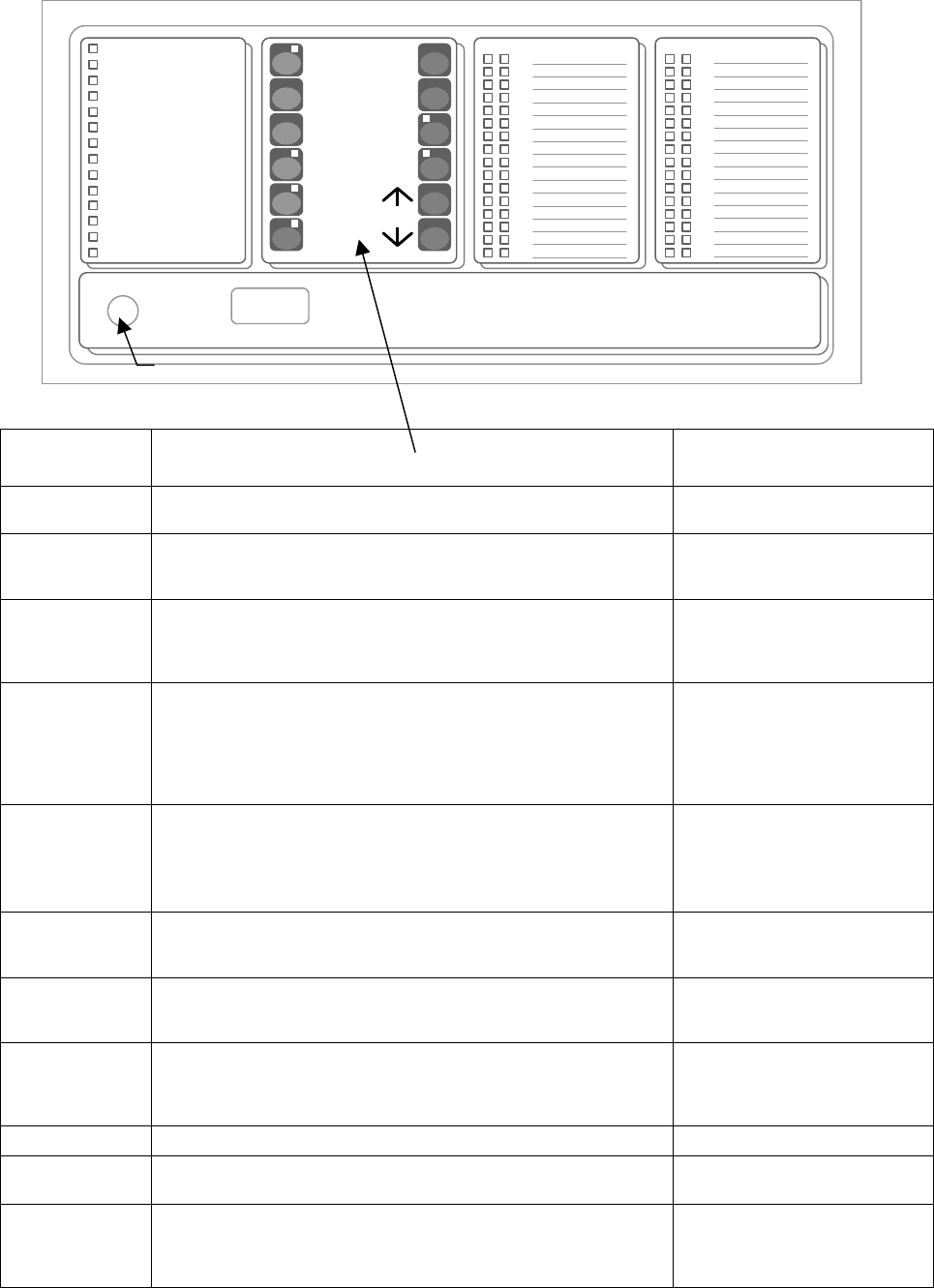

14.2 User Controls [showing optional clock module]
POWER SUPPLY ON
FIRE
FIRE ROUTING ACTIVE
GENERAL FAULT
POWER SUPPLY FAULT
SYSTEM FAULT
REPEATER FAULT
SOUNDER TEST
FIRE ROUTING FAULT/DISABLED
EARTH FAULT
SOUNDER FAULT/DISABLED
FIRE PROTECTION FAULT/DISABLED
FAULT ROUTING FAULT/DISABLED
FUSE FAULT
EVACUATE TEST DISPLAY
SILENCE/
RESOUND
ALARMS
RESET
SILENCE
BUZZER
DELAY
ON/OFF/
OVERRIDE
SELECT
ON/OFF
ENABLE
DISABLE
TEST
SELECT
ZONE LOCATION ZONE LOCATION
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
18
17
20
19
22
21
24
23
26
25
28
27
30
29
32
31
1 0
21 : 18 : 05
D / N OFF
Switch
Description
Functionality Button Availability
Evacuate Operates all sounders continuously and lights the Evacuated LED
adjacent the button until the silence button is operated.
When controls are unlocked
Silence/Resound
Alarms
Following a fire alarm condition, 1st operation stops sounders. The
General Fire LED and the Zonal fire LED will change from flashing to
steady. 2nd operation restarts the previously silenced sounders.
When controls are unlocked
Reset Clears the panel display, resets the zones, outputs and operates the
reset relay.
When controls are unlocked and [if
silence before reset is configured]
alarms silence switch has been
operated.
1] Press to stop the buzzer sounding in fire or fault conditions. When controls are locked or
unlocked
Silence Buzzer
2] In 2 Stage Delay Mode, with stage 1 delay running, press to start
stage 2 delay otherwise all delayed outputs operate when Stage 1 timer
times out.
When the panel is in the fire
condition and the delay is running.
Controls are locked or unlocked
1] Press once to Enable the delay mode, lighting the adjacent delay on
LED. Press again to disable the delay mode and turn off the LED
1] When controls are unlocked and
delay period is set to a value > 0.
Delay
On/Off/Override
2] Overrides the delay when delay is running, turning the delay mode
and the LED off. All delayed outputs will operate immediately.
2] When the panel is in the fire
condition and the delay is running.
Select On/Off Enables the User select feature [Select ↑ Select ↓] for selection of zones
or outputs via for disablement/re-enablement and also Day/Night On/Off
selection and setting current time on clock module (when fitted).
When controls are unlocked
Test Display Press to illuminates all LEDs on the display and operate the buzzer. All
indications remain active for approx 5 seconds after button release. Also
displays alarm counter on clock module (when fitted).
When controls are locked or
unlocked
Enable Press to clear the disablement or test condition on a zone or output
selected via the User Select feature.
When controls are unlocked, the
Select switch has been operated
and a zone or output has been
selected.
Disable Press to disable a zone or output selected via the User Select feature. As above.
Test Press to initiate the One Man Test on sounders or zones as selected via
the User Select feature.
As above.
Select ↑ Select ↓ Used to scroll the cursor indication through the zone and output fault
LEDs on the display to select a zone or output for disablement, or test.
[LED illuminated when Select Mode is active]. Also scrolls through clock
module menu (when fitted).
When controls are unlocked and
the Select switch has been
operated.
Access Controls Keyswitch:
0 – Controls Locked
1 – Controls Unlocked
Page 26 of 40
