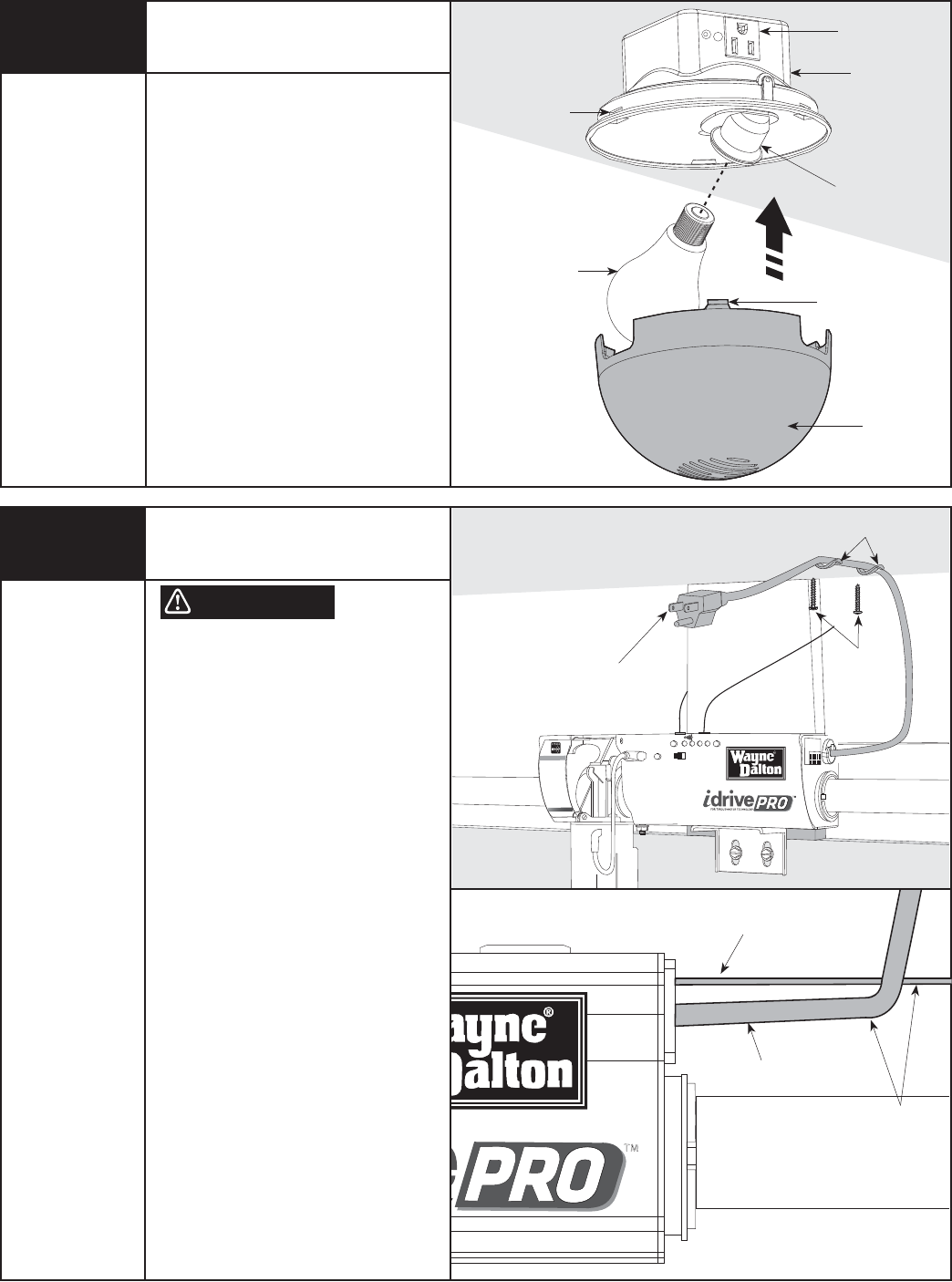

Screw a 75W (maximum) light bulb into
light socket and snap diffuser into light
fixture.
When assembling diffuser, make sure all
three snap tabs are aligned and fully
snapped into the three mating slots of the
light fixture.
Turn receptacle power back on at fuse/
breaker box. The light should blink one
time when the power is turned back on.
NOTE: An accessory power outlet
receptacle (600 Watt Maximum) is
provided as part of the light fixture.
TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT CHANGE THE POWER
CORD PLUG IN ANYWAY.
The opener can be permanently wired. To
permanently wire the unit, see Permanent
Wiring option on page 39.
Plug the end of the power cord into the
closest grounding type receptacle
Otherwise, contact a service person for
further options. Excess power cord length
must be routed and contained safely away
from any moving parts.
As soon as power is applied to the opener,
it should beep two times.
NOTE: Do not permanently attach power
cord to building!
NOTE: Use only the flexible cable clips
supplied with the opener.
Connecting Opener
Power Cord
Plug Into Nearest
Power Outlet
Cable Clips
#6 x 7/8
Wood Screws
No Interference
Between Power
Cord and
Disconnect Cable
(Ceiling)
Light Socket
WARNING
Disconnect
Cable
Power Cord
17
18
Tools Needed:
Step Ladder
Tools Needed:
Phillips Head
Screwdriver
Step Ladder
Attaching Diffuser
(If Included)
