IDRIVE
®
FOR TORQUEMASTER
®
INSTALLATION
TO PREVENT POSSIBLE INJURY, INSTALL
WALL STATION OUT OF THE REACH OF
CHILDREN AND IN A LOCATION WHERE
THE DOOR CAN BE SEEN WHEN THE
OPENER IS ACTIVATED. DO NOT MOUNT
WALL STATION NEAR OR NEXT TO
GARAGE DOOR.
NOTE:
For proper operation, mount the wall
station on a flat surface.
The wall station can be mounted to a NEMA
standard electrical device box or directly to
any wall surface. No wiring is required.
Select appropriate place to mount wall
station. To keep wall station out of the reach
of children, locate it at least five feet up
from the floor.
Mounting Wall Station
5’ Min
Tools Needed:
Tape Measure
Power Drill
3/16” or
3/32" Drill Bit
Phillips Head
Screwdriver
WARNING
14

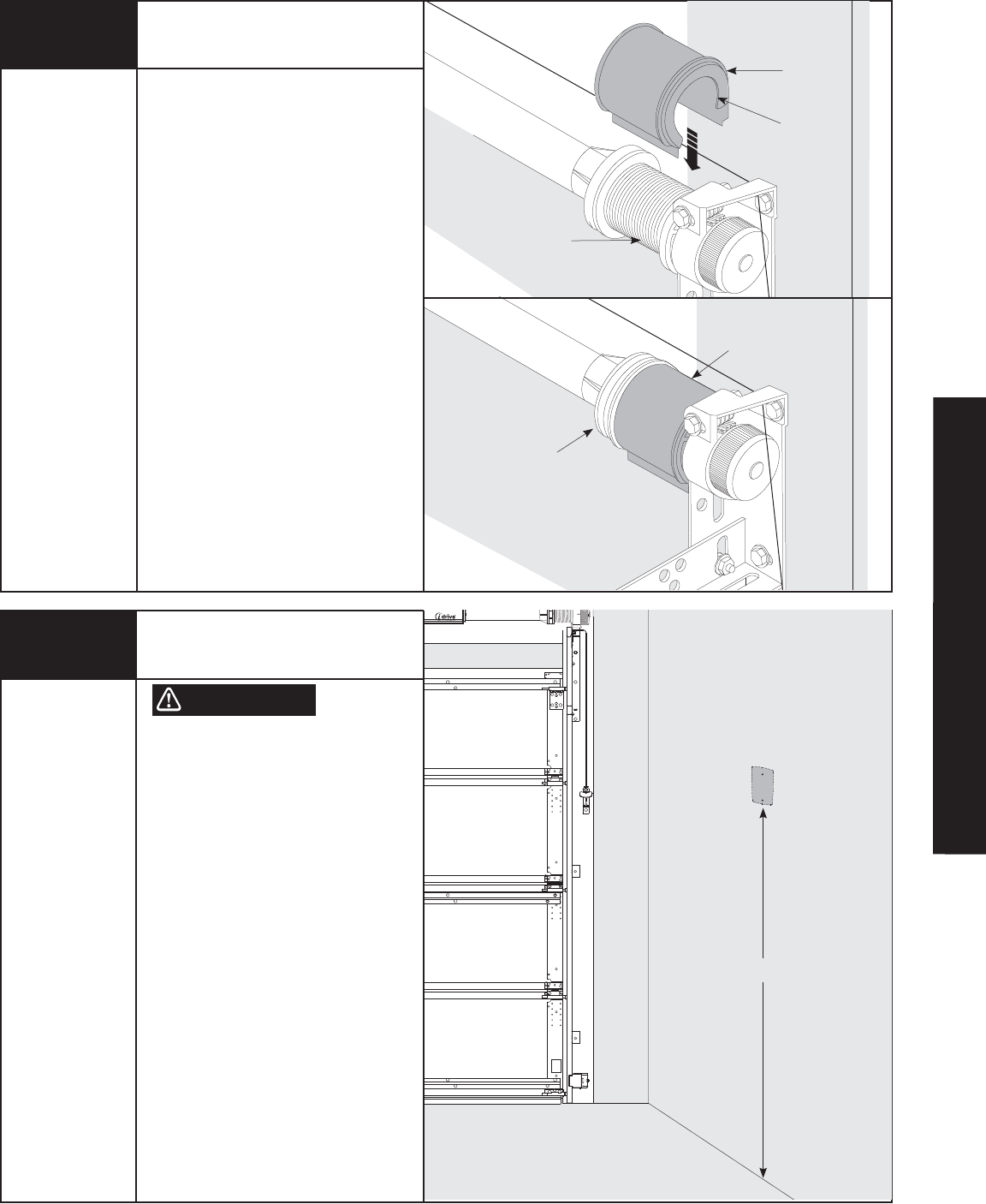

Drum Wrap Installation
Drum wraps (supplied with Torquemaster
®
counterbalance systems) are identified as
right and left.
To install, place the drum wrap over the
cable drum and under the idrive
®
disconnect cable. Align the outside flange
over the outside edge of the cable drum
and push the drum wrap down onto the
cable drum.
Drum
Wrap
Cable
Drum
Drum
Wrap
Cable
Drum
Tools Needed:
Step Ladder
Outside
Flange
