Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need.
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
1"
FAILURE TO RE-ATTACH HORIZONTAL
TRACKS TO THE SUPPORT BEFORE
OPENING DOOR CAN CAUSE DOOR
TO FALL FROM OVERHEAD POSITION,
POSSIBLY CAUSING SEVERE OR FATAL
INJURY.
NOTE:
Door must be in the fully closed
position.

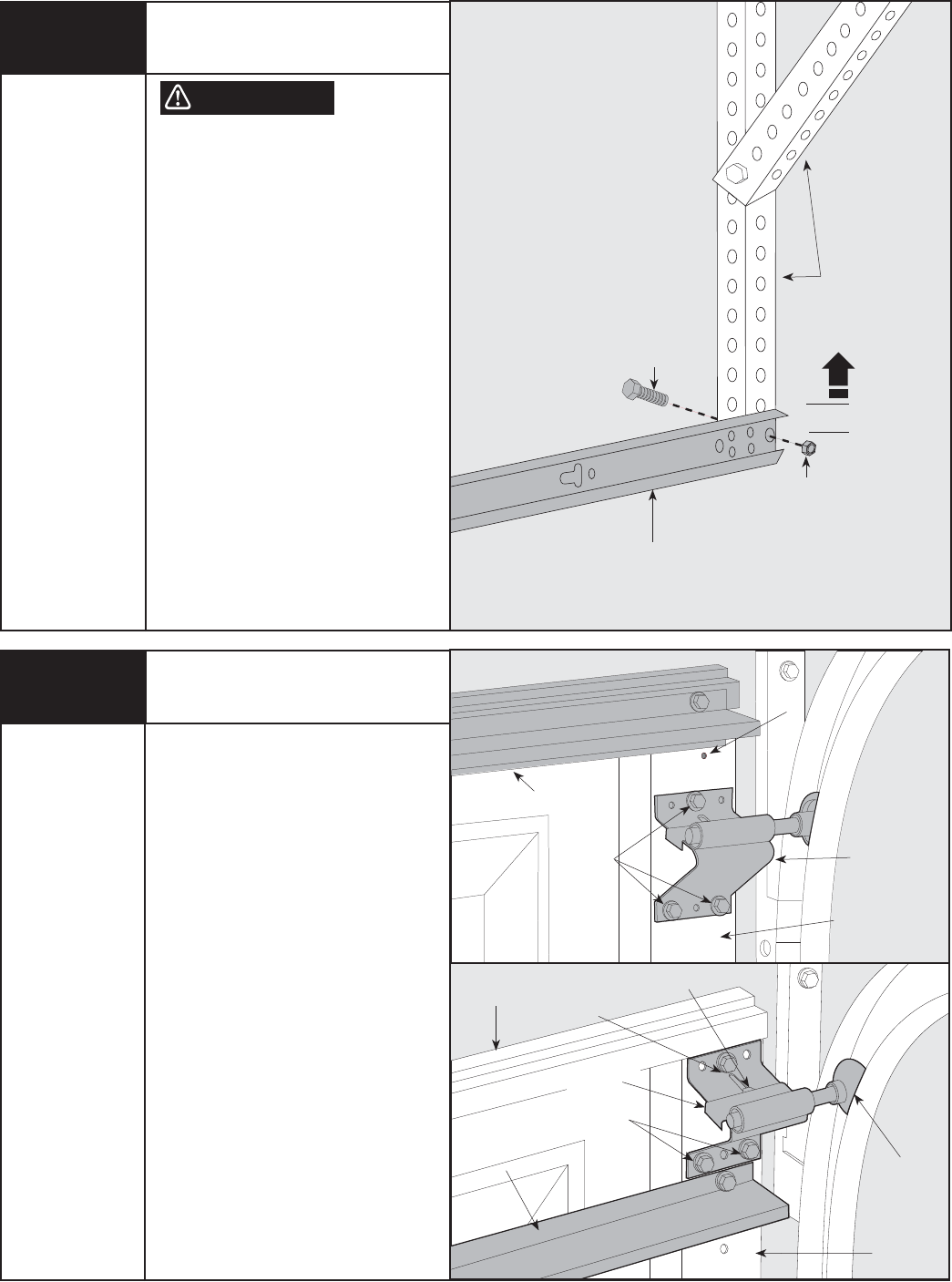

If the vertical track was raised then the
horizontal track will need to be adjusted.
Remove bolt securing back of horizontal
track to the perforated angle and reposition
horizontal track UP 1” (25mm) from it’s
original position.
Re-attach the horizontal track to the
perforated angle with the same
bolt and nut.
Assemble bolt and nut from the direction
shown so bolt will extend inside of track.
8000/8100/8200 Track
Horizontal Track Height
Adjustment (If Required)
Remove the (3) self-tapping screws from
the top bracket.
Align the top hole of the top bracket with
the #2 hole in the end cap and re-attach the
top bracket to the end cap with the same
three self-tapping screws. It may be
necessary to relocate the top strut (if
installed) to correctly place the top bracket
in its new location.
Re-align the top roller in the track by
moving top bracket slide out until door
section is straight up and down. Tighten the
flange nut.
Repeat for opposite side.
8000/8100/8200 Track
Top Roller Adjustment
(If Necessary)
Perforated
Angles
Top
Strut
Self-tapping
Screws
#2 Hole
Top
Bracket
End Cap
#2 Hole with
Self-tapping
Screw
Self-tapping
Screws
Top
Strut
End Cap
Tools Needed:
Level
1/2” Wrench
Step Ladder
Tools Needed:
Power Drill
7/16" Socket
Driver
Step Ladder
Flange Nut
Door Section
Top Roller
Horizontal
Track
Bolt
Nut
Top Bracket
Slide
WARNING
R7
R8
