Z-8550A, 8560A
9. ADJUSTMENTS
80
9-19. Adjusting the quick reverse device (8550A-A31, 8560A)

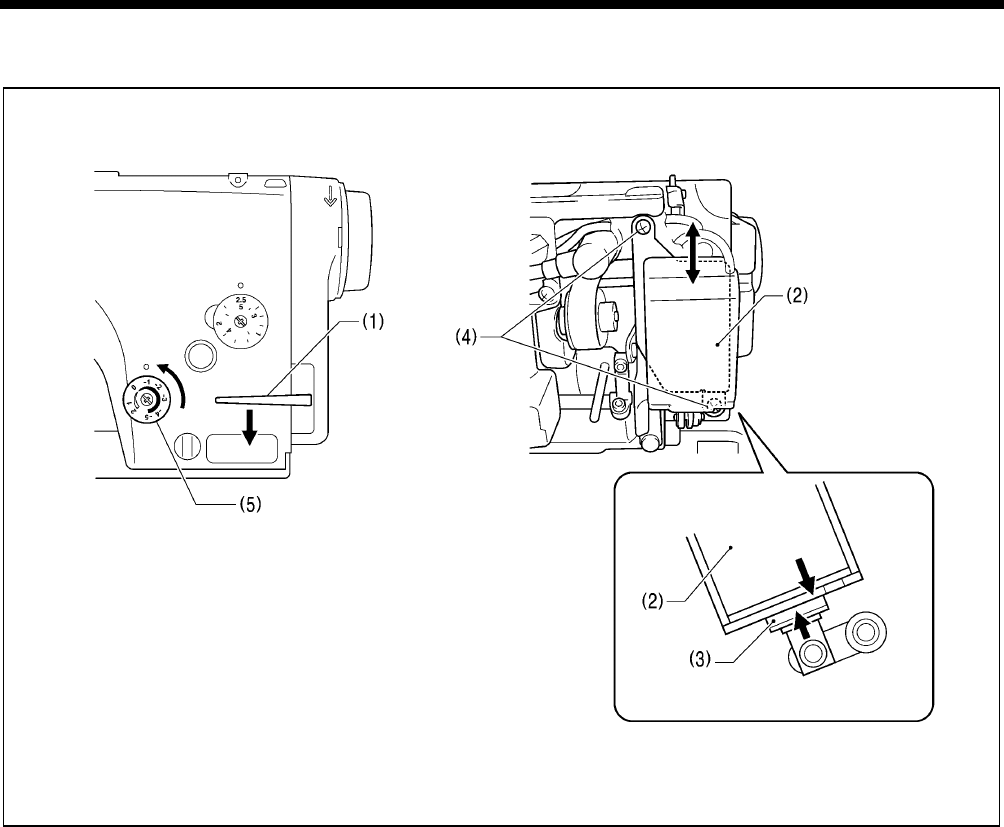

Adjust so that the plunger rubber (3) touches the bottom of the quick reverse solenoid (2) when the reverse stitching lever (1)
is lowered to its lowest position while the feed amount is at the maximum setting.
1. Turn the condense dial (5) counterclockwise to its maximum setting.
2. Loosen the two screws (4).
3. Move the quick reverse solenoid (2) up or down to adjust.
4. Securely tighten the two screws (4).
