7. ASSEMBLY
Z-8550A, 8560A
59

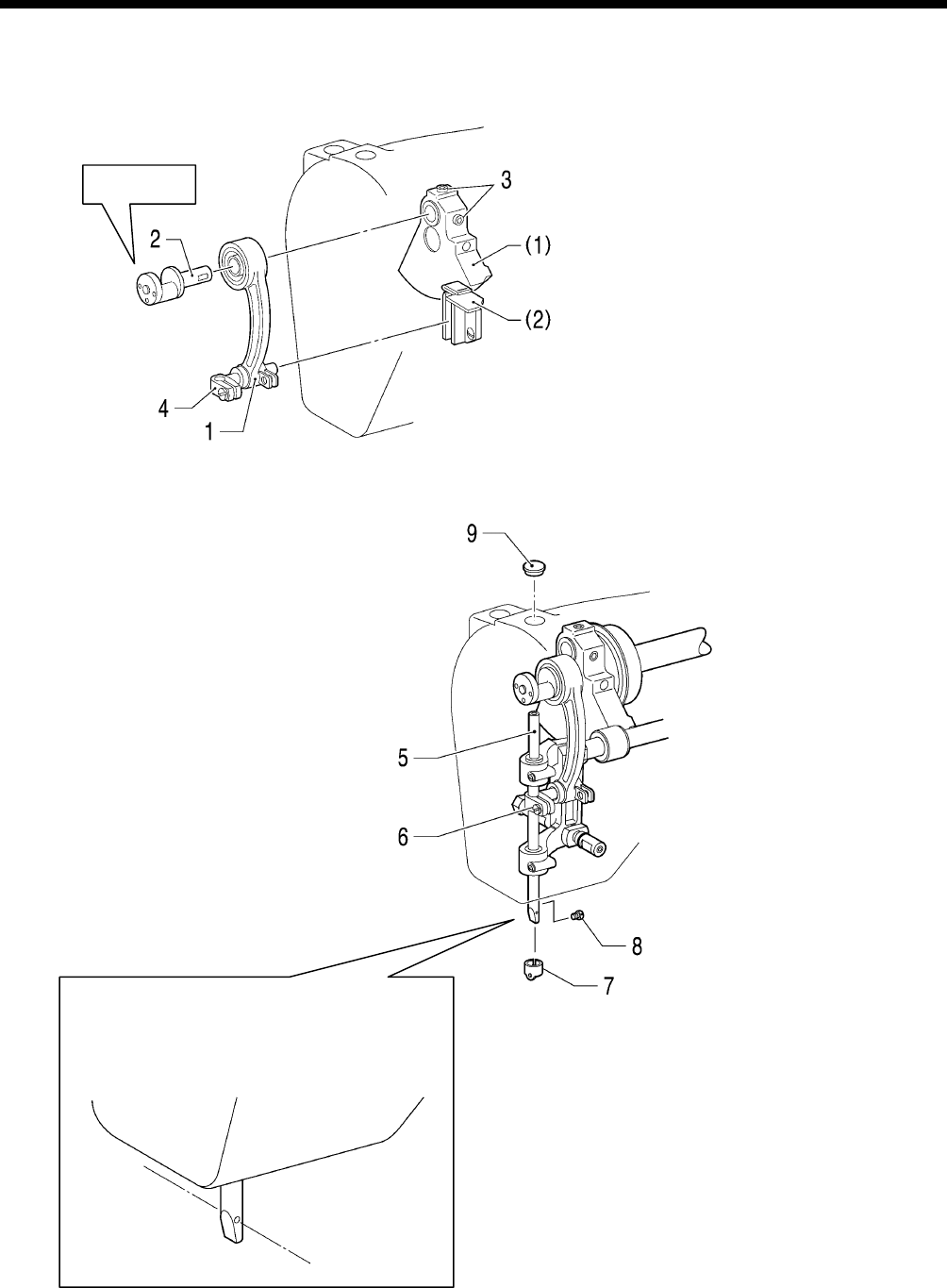

7-5. Needle bar mechanism
1. Needle bar connecting rod
2. Needle bar connecting rod shaft
3. Screws [2 pcs]
4. Needle bar clamp
(1) Thread take-up crank
(2) Felt
5. Needle bar
6. Screw (Temporarily tighten)
7. Thread guide
8. Screw
9. Rubber cap
0124B
Push in.
Face the needle check hole toward the front.
Tighten the screws after carrying out the
adjustment in “9-10. Needle bar height”
.
1135B
0126B
