036-21410-001-A-0502
Unitary Products Group 45
NOTE:
Units are shipped with the bottom duct openings ocov-
ered. An accessory flange kit is available for connecting side
ducts.
For bottom duct applications:
1. Remove the side panels from the supply and return air
compartments to gain access to the bottom supply and
return air duct covers.
2. Remove and discard the bottom duct covers. Duct open-
ings are closed with sheet metal covers except when the
unit includes a power exhaust option. The covering con-
sists of a heavy black paper composition.
3. Replace the side supply and return air compartment pan-
els.
For side duct application:
1. Replace the side panels on the supply and return air
compartments with the accessory flange kit panels.
2. Connect ductwork to the duct flanges on the rear of the
unit.

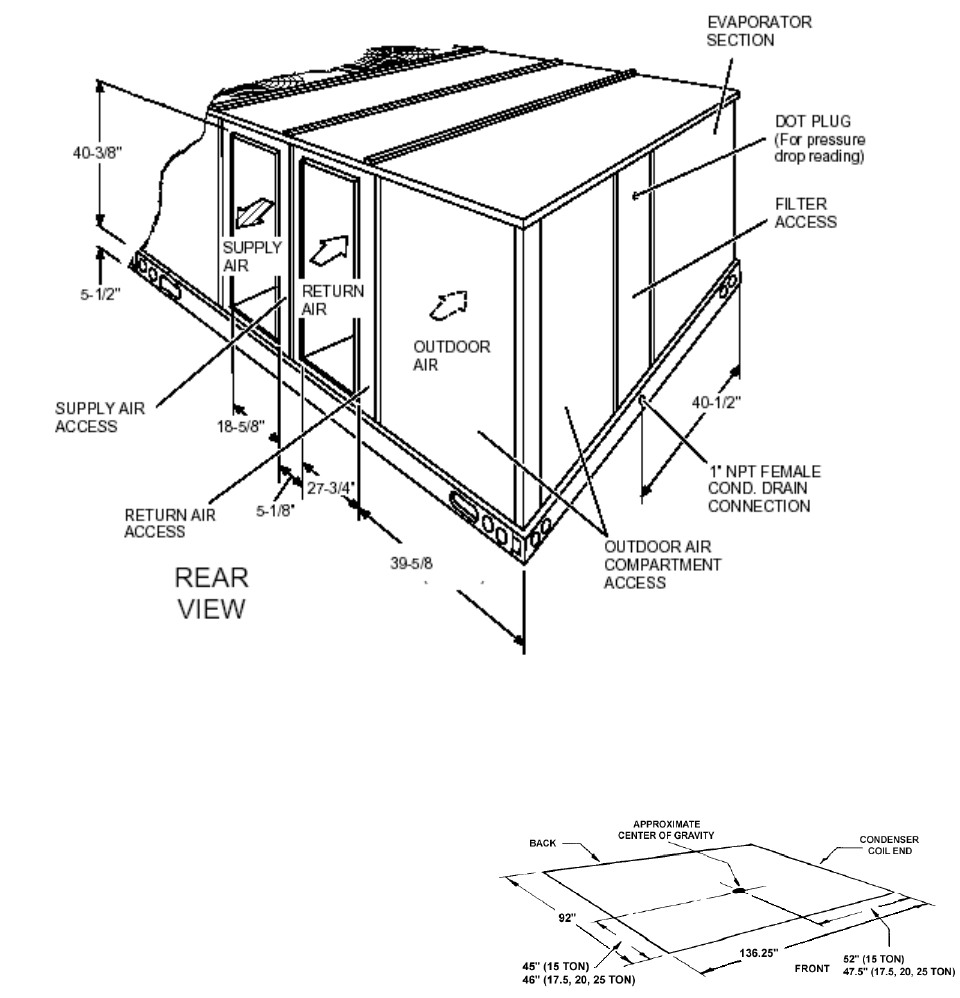

FIGURE 4: UNIT DIMENSIONS (REAR VIEW)
FIGURE 5: UNIT CENTER OF GRAVITY
