Ceiling & Floor, Ceiling Suspended (50Hz, R22) 77

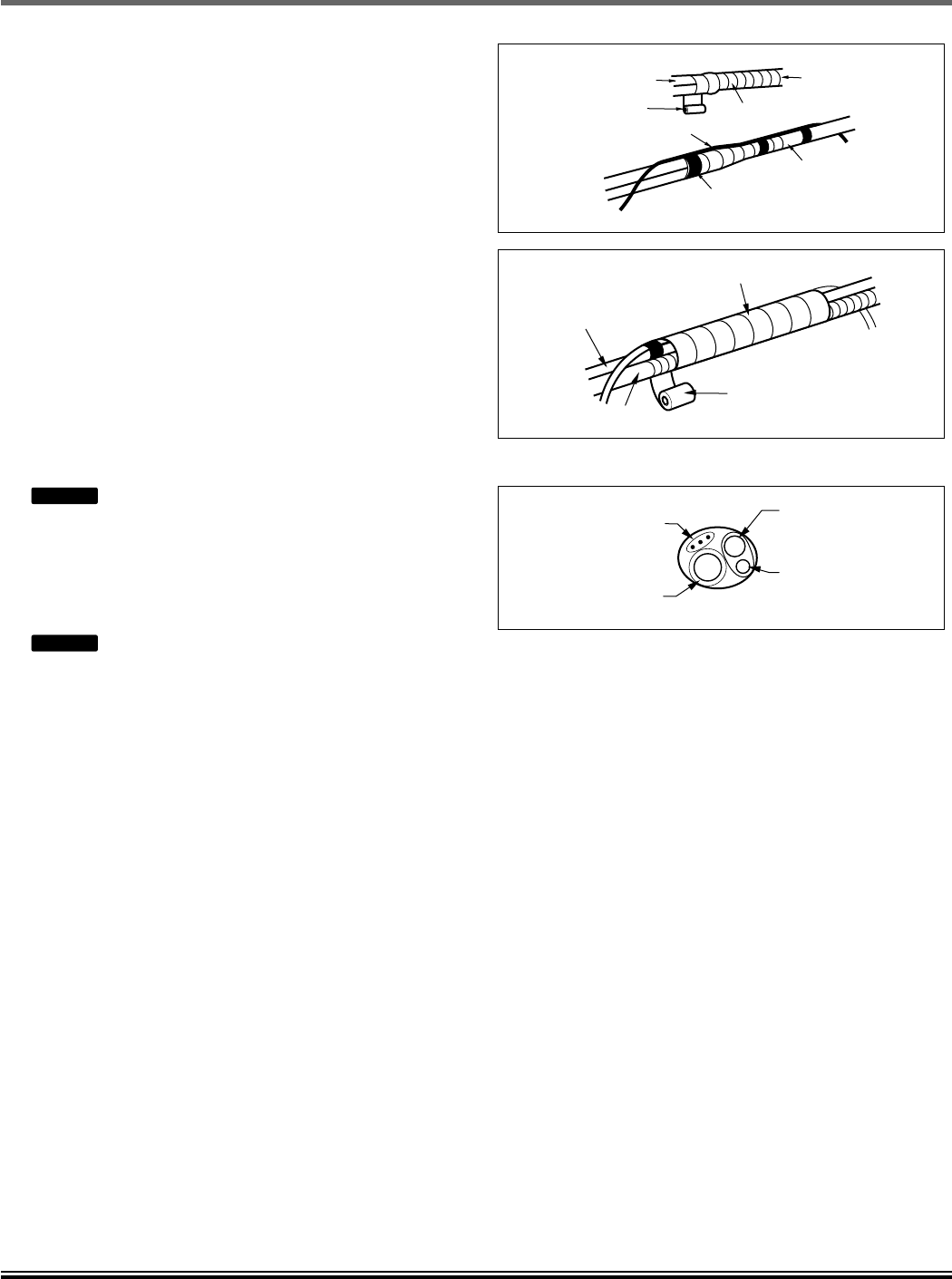

15. Installation
10. If the piping and the drain hose are in common
direction bundle the piping and the drain hose
together by wrapping them with vinyl tape.
11. Rout the indoor tubing and the drain hose to the
required piping hole.
Common direction of drain and piping.
Tape
the tubing, drain hose and the connecting cable.
Be sure that the drain hose is located at the low-
est side of the bundle. Locating at the upper side
can cause drain pan to overflow inside the unit.
If the drain hose is routed inside the room, insu-
late the hose with an insulation material* so that
dripping from "sweating"(condensation) will not
damage furniture or floors.
*Foamed polyethylene or equivalent is recom-
mended.
NOTICE
NOTICE
Wrap with vinyl tape
Drain hose
Pipe
Vinyl tape(wide)
Connecting
cable
Gas side
piping
Liquid side
piping
Drain hose
Vinyl tape(narrow)
Connection pipe
Connecting cable
Vinyl tape (wide)
Wrap with vinyl tape
Indoor unit pipe
Pipe
