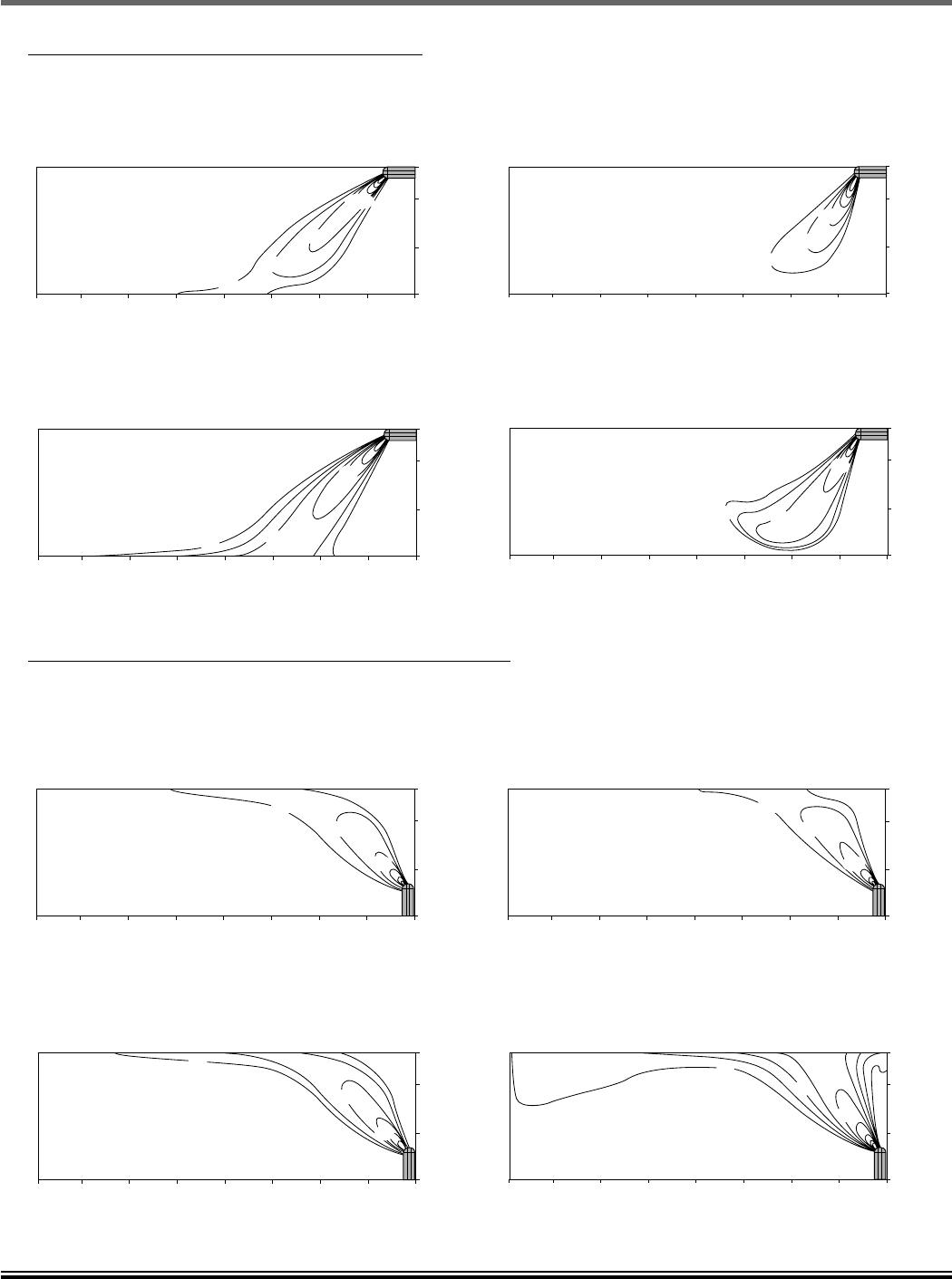

13. Air Velocity and Temperature Distributions(Reference Data)
Cooling
Discharge angle:45°
Heating
Discharge angle:45°
18kBtu/h Models - Installation on ceiling
Cooling
Discharge angle:45°
Heating
Discharge angle:45°
18kBtu/h Models - Installation on the floor or wall
2.7m
Air velocity [m/s]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
2.7m
Temperature [˚C]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
0.75
1.25
1.0
0.5
25
23
19
2.7m
Air velocity [m/s]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
2.7m
Temperature [˚C]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
0.75
1.0
0.5
25
27
33
2.7m
Air velocity [m/s]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
2.7m
Temperature [˚C]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
0.75
1.0
0.5
25
23
19
2.7m
Air velocity [m/s]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
2.7m
Temperature [˚C]
2m
1m
0m
0m
1m2m3m4m5m6m7m8m
0.75
1.0
0.5
25
27
33
