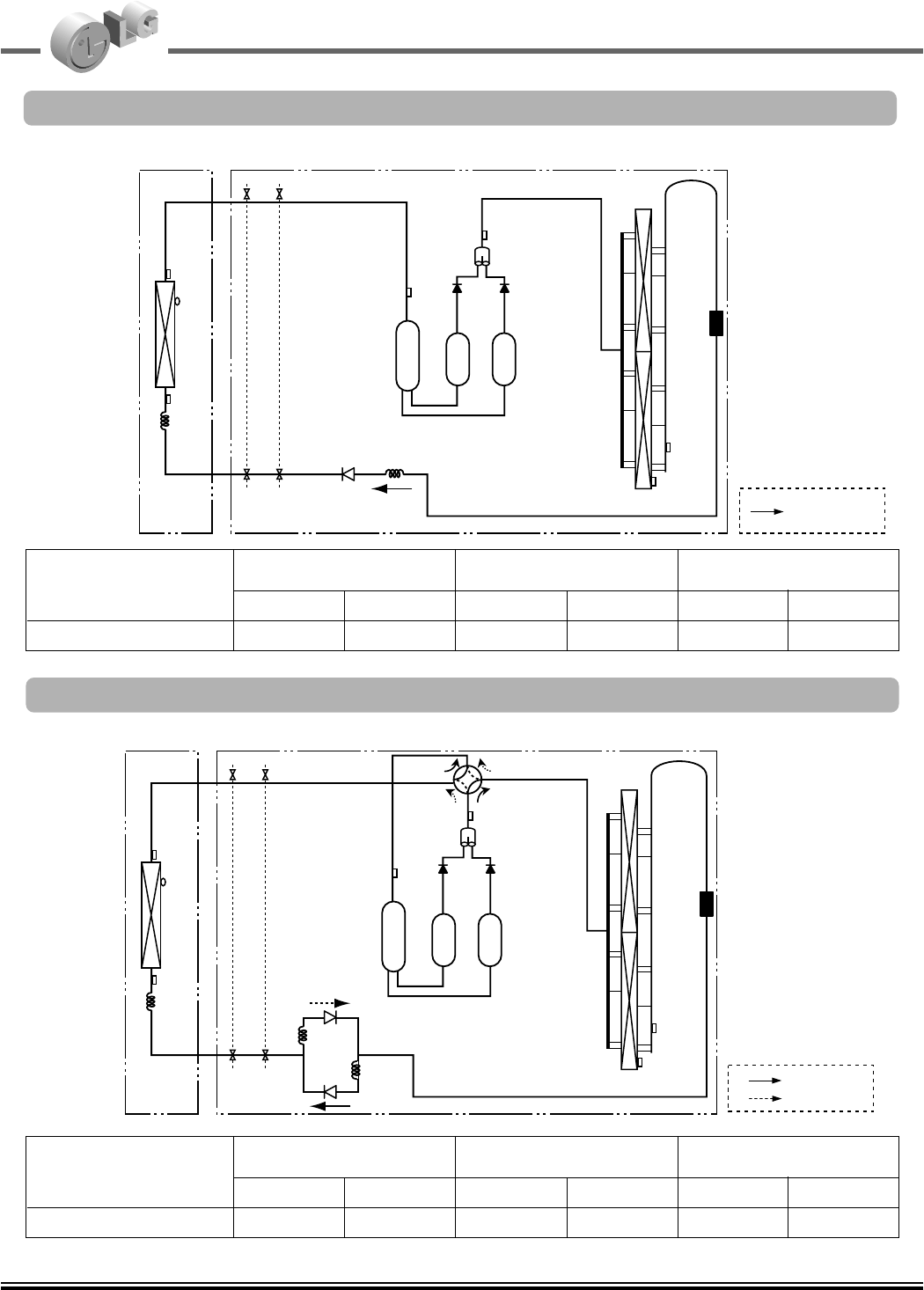

8. Refrigerant Cycle Diagrams
Pipe size(Diameter:Ø)
Piping length(m) Elevation(m)
Model No. (inch)
Gas Liquid Rated Max Rated Max
LV-C368KLA(B)0 5/8" 1/4" 5 30 5 20
Model No.: LV-C368KLA(B)0
Pipe size(Diameter:Ø)
Piping length(m) Elevation(m)
Model No. (inch)
Gas Liquid Rated Max Rated Max
LV-H368KLA(B)0 5/8" 1/4" 5 30 5 20
Model No.:
LV-H368KLA(B)0
Accumulator
Comp1
Comp2
Thermister
Thermister
Eva.
Sensor
Air
Sensor
INDOOR
COIL
Eva.
Sensor
Thermister
Thermister
(for LV-C368KLB0 only)
LIQUID SIDE
OUTDOOR COIL
GAS SIDE
INDOOR UNIT OUTDOOR UNIT
: COOLING
Accumulator
Comp1
Comp2
Thermister
Thermister
Eva.
Sensor
Air
Sensor
INDOOR
COIL
Eva.
Sensor
Thermister
Thermister
(for LV-H368KLB0 only)
LIQUID SIDE
OUTDOOR COIL
GAS SIDE
INDOOR UNIT OUTDOOR UNIT
COOLING
HEATING
