15. Installation
■ Preparing work for Installation

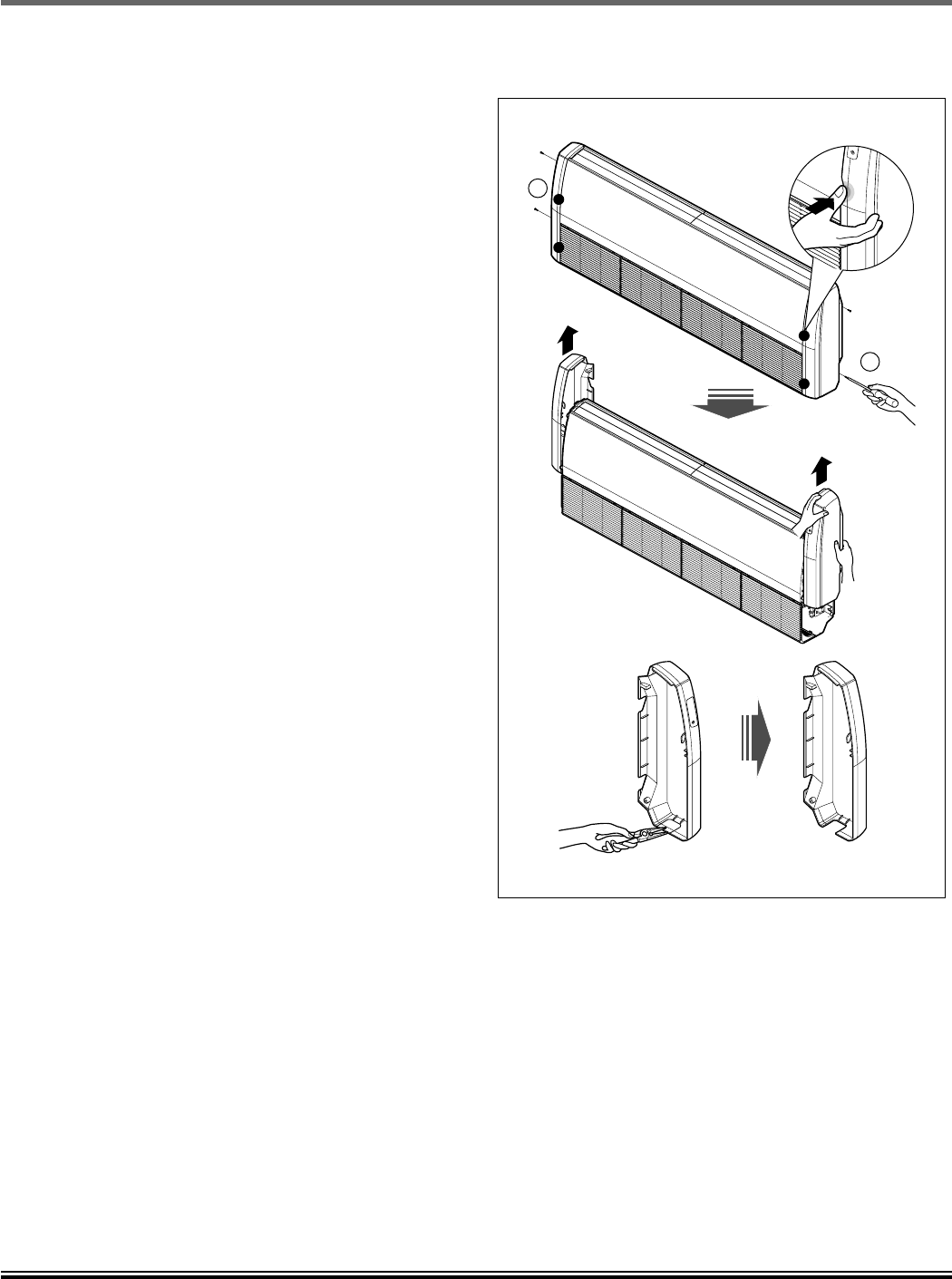

Open side cover
1. Remove two screws from side-cover as shown in fig.
2. Unlock side-cover from side panel by slightly pulling
the edge of side cover.
3. Tap the side-cover with your palm on the
backside.(Inlet grill side.)
4. Hold the side-cover with other hand while tapping to
prevent it to fall down.
Recommendation: it is recommended to select the left
side for drain to have common hole in the side-cover
along with pipe and wiring.
5. Remove the rubber stopple in the desired drain direc-
tion.
6. Knock out the pipe hole from the left side-cover with
the help or nipper/plier.
7. Knock hole on right side-cover only if right side is
selected for water drain.
2
1
Edge part
