ENV-VST-C - Operation / Reference Guide
Single Stage Heat Pump
See the Changing the Type of HVAC System section on page 40 for information on indicating the thermostat is connected
to a Single Stage Heat Pump system.

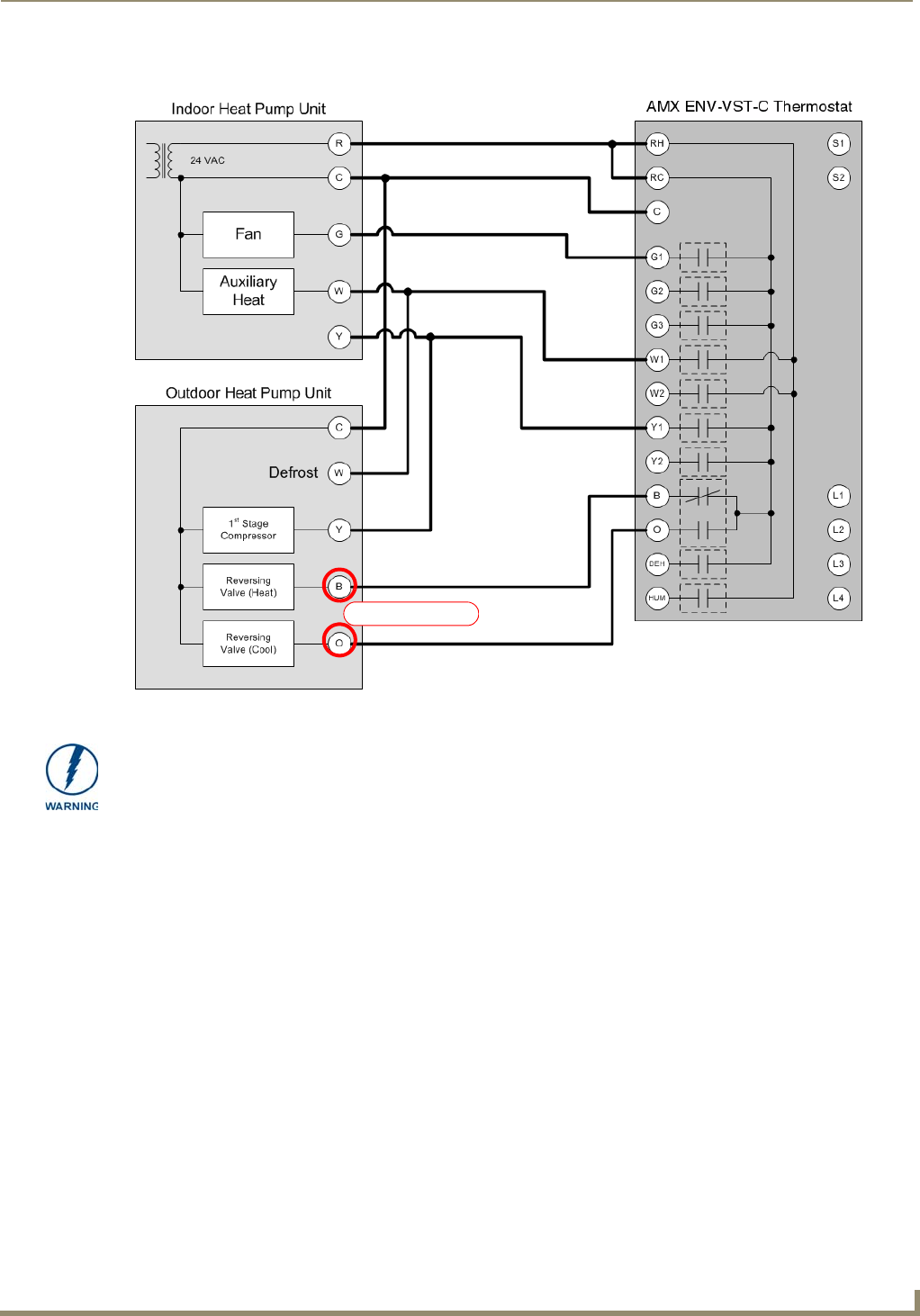

FIG. 8 Single Stage Heat Pump wiring
See note below
Either the B or O relay will be connected to the reversing valve based on the type of
reversing valve used (B is energized for heating, O is energized for cooling). Connect
one or the other. DO NOT CONNECT BOTH.
