PUHY-HP192TSHMU-A
60dB <A>
1 ~ 24
3. Combination of outdoor unit
Outdoor unit model
PUHY-HP72THMU-A(-BS)
PUHY-HP96THMU-A(-BS)
PUHY-HP144TSHMU-A(-BS)
PUHY-HP192TSHMU-A(-BS)

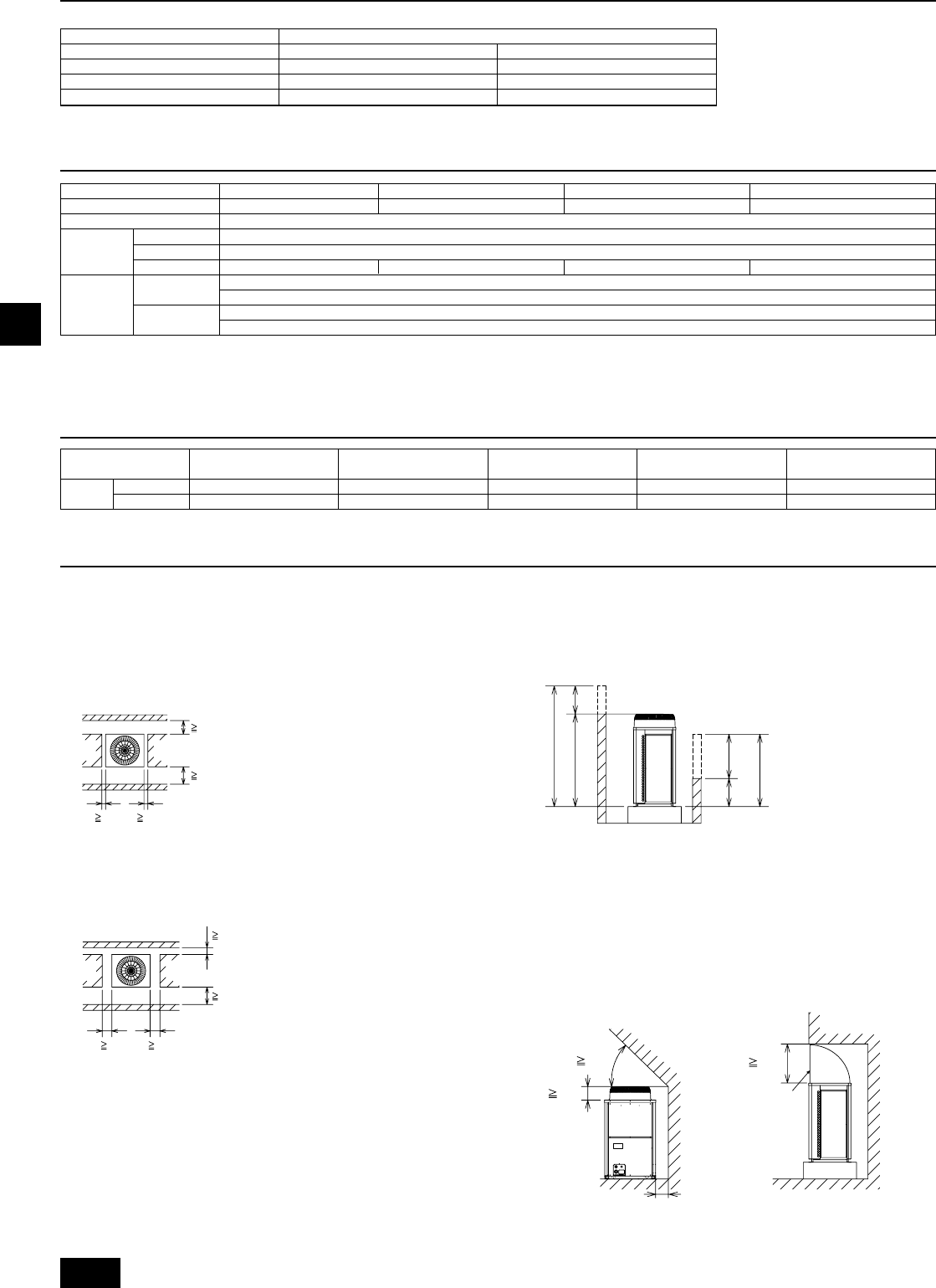

6. Space required for unit installation and operation
1 In case of single installation
• Secure enough space around the unit as shown in the figure below.
[Fig. 6.0.1]
(1) If the distance is 300 mm [11-13/16 in] or more between the rear side and
the wall
<A> Top view
(Unit: mm [in])
15*15*
450*
300*
A
[11-13/16]
[17-23/32]
[19/32][19/32]
(2) If the distance is 100 mm [3-15/16 in] or more between the rear side and
the wall
<A> Top view
(Unit: mm [in])
100*
450*
50*50*
A
[3-15/16]
[17-23/32]
[1-31/32][1-31/32]
(3) If the wall height (H) of the front, rear or side exceeds the wall height
restriction
<B> Side view
(Unit: mm [in])
A
B
500
H
h
h
H
[19-11/16]
• When the height of the walls on the front, back or on the sides <H> exceeds
the wall height limit as defined here, add the height that exceeds the height
limit <h> to the figures that are marked with an asterisk (*).
<Wall height limit> Front: Up to the unit height
Back: Up to 500mm [19-11/16 in] from the unit bottom
Side: Up to the unit height
(4) If there are obstacles at the upper part of the unit
<C> When there is little space up to an obstruction
(Unit: mm [in])
240
[9-15/32]
[1-31/32]
[39-3/8]
45°
A
D
C
50
1000
A Front B Unit height
C Back D Air outlet guide (field-supplied)
5. Parts included list
Component unit models
-
-
PUHY-HP72THMU-A(-BS)
PUHY-HP96THMU-A(-BS)
Component units of PUHY-HP144 to HP192 are listed below.
-
-
PUHY-HP72THMU-A(-BS)
PUHY-HP96THMU-A(-BS)
Model
P72
P96
1 Connecting pipe (flare)
<Gas side>
1 pc.
–
2 Connecting pipe (flange)
<Gas side>
–
1 pc.
5 Packing
(Inside ø23, Outside ø30)
–
1 pc.
Model
Sound level (60Hz)
External static pressure
Indoor units
Total capacity
Model
Quantity
Standard type
Outside air
intake type
PUHY-HP72THMU-A
56dB <A>
1 ~ 13
PUHY-HP96THMU-A
57dB <A>
1 ~ 16
PUHY-HP144TSHMU-A
59dB <A>
1 ~ 22
0 Pa*
2
50 ~ 130%*
1
06 ~ 96
4. Specifications
Operation
temperature
Cooling mode: – 5°CDB ~ 43°CDB [23°FDB ~ 109°FDB] (0°CDB ~ 43°CDB [32°FDB ~ 109°FDB] with outdoor unit at lower position)
Heating mode: – 25°CWB ~ 15.5°CWB [–13°FWB ~ 60°FWB]
Cooling mode: 21°CDB/15.5°CWB ~ 43°CDB/35°CWB (70°FDB/60°FWB ~ 109°FDB/95°FWB)
Heating mode: – 10°CDB ~ 20°CDB [14°FDB ~ 68°FDB]
*1: The total indoor capacity of units run simultaneously is 130% or less.
*2: To enable high static pressure, set the DipSW on the main panel as follows.
SW3-9: ON, SW3-10 60Pa compatible: OFF, 30Pa compatible: ON
4 Adapter
<Check joint>
2 pcs.
2 pcs.
3 Connecting pipe (flare)
<Liquid side>
1 pc.
1 pc.
* PUHY-HP144/192TSHMU-A(-BS) require “Twinning Kit” to connect component unit modules in the field.
