Model No. B3200 Electric
Heater
Type 3253.331
Nominal Compressor
Capacity (KW) 3.2 1.6
Electrical Rating 220-240 VAC 50Hz., 1 Ph
Full Load Amps
(Compressor / Motor) 5.2 / 1.1 --- / 1.1
Locked Rotor Amps
(Comp / Motor) 26/ 3.8 ---/ 3.8
Refrigerant R407C
Grams/Oz. 496/15.5 ---
Circuit Protection 10 Amp Time Delay Fuse,
or Circuit Breaker
Input Power (KW) 1.35 1.5
Minimum Wire Size Up to 8 meters
use 1mm
2
, Copper
** Generator Size 1 Unit - 3.5KW
2 Units - 5.0KW
** The Manufacturer gives GENERAL guidelines for gen-
erator requirements. These guidelines come from experi-
ences people have had in actual applications.
When sizing the generator, the total power usage of your
Caravan must be considered. Keep in mind generators lose
power at high altitudes and from lack of maintenance.

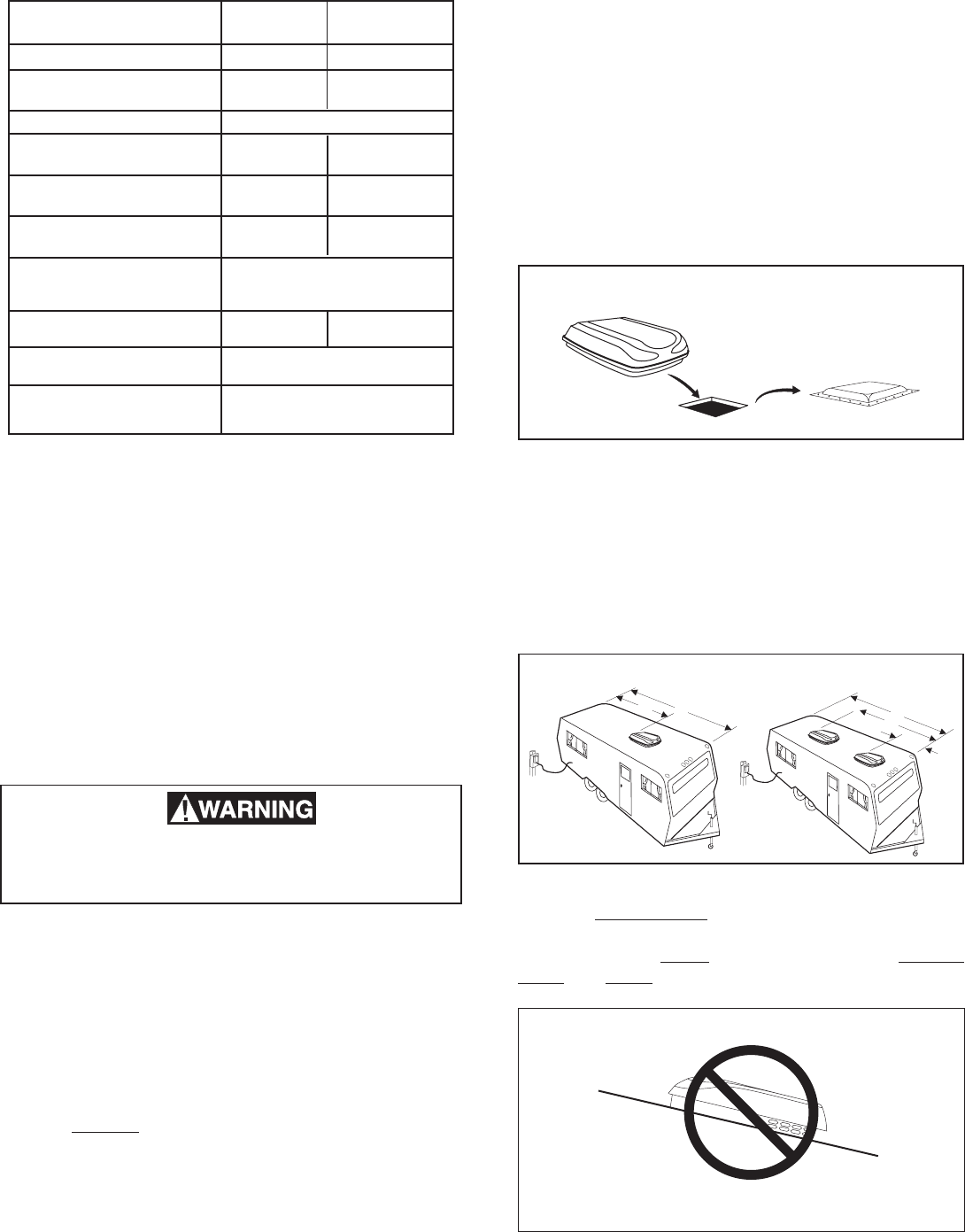

Specifications
A. Precautions
INSTALLATION INSTRUCTIONS
B. Choosing Proper Location For The Air
Conditioner
This air conditioner is specifically designed for installation on
the roof of a Caravan. When determining your cooling
requirements, the following should be considered:
• Size of Caravan;
• Window area (increases heat gain);
• Amount of insulation in walls and roof;
• Geographical location where the Caravan will be used;
• Personal comfort level required.
1. Normal Location-The air conditioner is designed to
fit over an existing roof vent opening.
FIG. 1
1/2L
L
L
1/3L
2/3L
FIG. 2
It is preferred that the air conditioner be installed on a
relatively flat and level roof section measured with the
Caravan parked on a level surface.
Note: A 8° slant to either side is acceptable, but a Front to
Back slant is not acceptable.
FIG. 3
Font to Back Slope Is NOT ACCEPTABLE
Improper installation may damage equipment,
could endanger life, cause serious injury and/
or property damage.
1. Read Installation and Operating Instructions care-
fully before attempting to start your air conditioner
installation.
2. The Manufacturer will not be liable for any damages
or injury incurred due to failure in following these
instructions.
3. The equipment shall be installed in accordance
with national wiring regulation per IEC 335-2-40, CI,
7.12.1. Installation must comply with all applicable
codes and/or regulations.
4. DO NOT add any devices or accessories to this air
conditioner except those specifically authorized by
The Manufacturer.
5. This equipment must be serviced by qualified
personnel and some local codes and regulations
require these people to be licensed.
2. Other Locations-When no roof vent is available or
another location is desired, the following is recom-
mended:
a. For one unit installation: The air conditioner
should be mounted slightly forward of center
(front to back) and centered from side to side.
b. For two unit installations: Install one Air Condi-
tioner 1/3 and one Air Conditioner 2/3’s from
front of Caravan and centered from side to side.
