Reference Manual
300560EN, Rev AA
May 2011
3-11
Rosemount 2230
Section 3. Installation

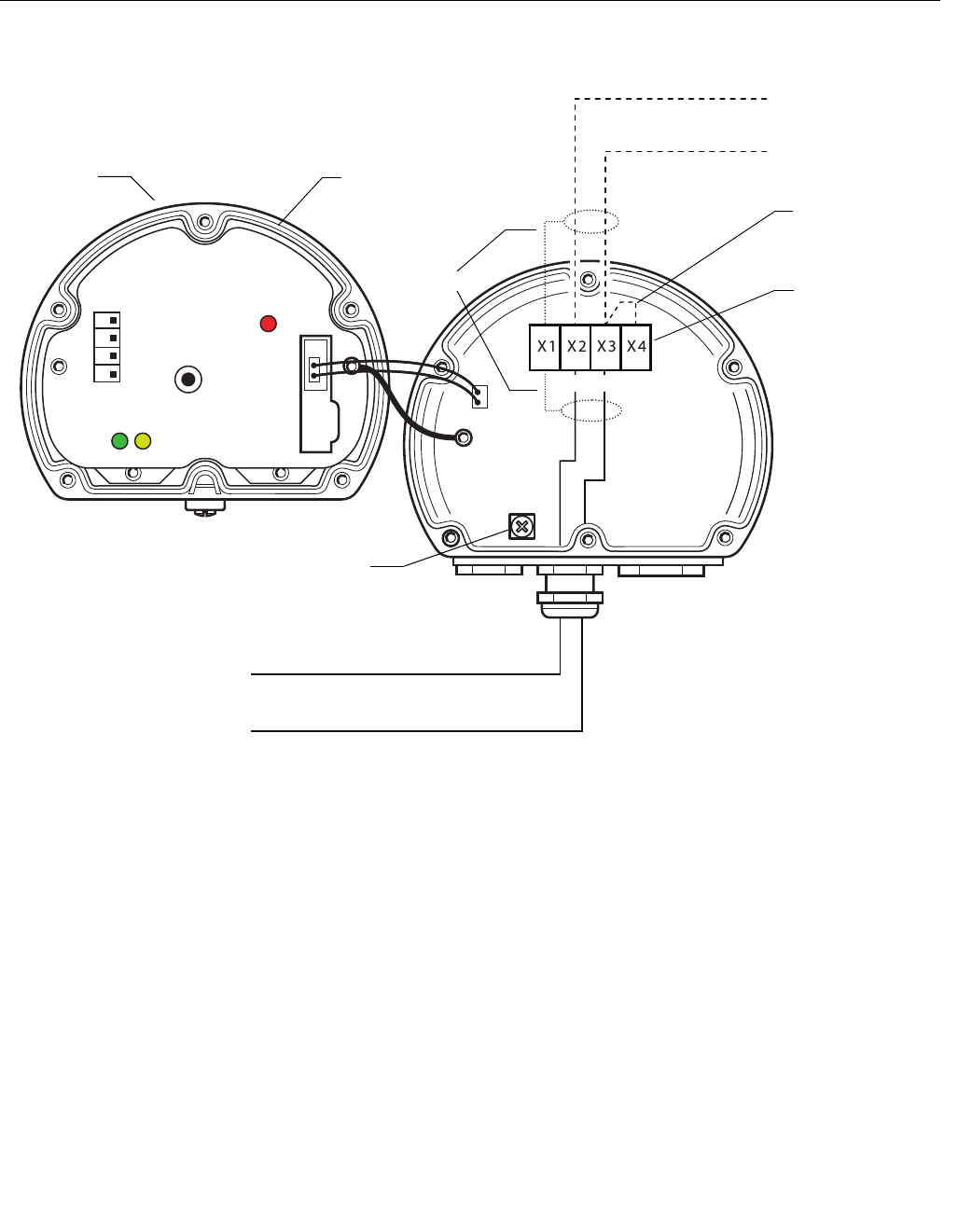

Figure 3-5. 2230 cable
connections
X2: Tankbus FB+ input
X3: Tankbus FB- input
Jumper for
built-in
termination
X3: Tankbus (-) output
Cable Shield
X2: Tankbus (+) output
Front cover
X4: Tankbus
terminator
Internal grounding
Daisy-chain
connection to other
field devices
(see page 3-12)
Sealing
FB+ FB-
