SKU 65712 For technical questions, please call 1-800-444-3353. Page 9
ASSEMBLY
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein
before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL
OPERATION:
Unplug the Garage Door Opener from its electrical Outlet before
assembling or making any adjustments to the equipment.
IMPORTANT:1. This Garage Door Opener is designed to work with the follow-
ing types of garage doors:
One-piece doors with horizontal track only.a.
Sectional doors with curved tracks.b.
THIS GARAGE DOOR OPENER IS NOT DESIGNED TO WORK WITH:
One-piece doors with horizontal a. and vertical tracks, double-wing doors, or canopy
doors.

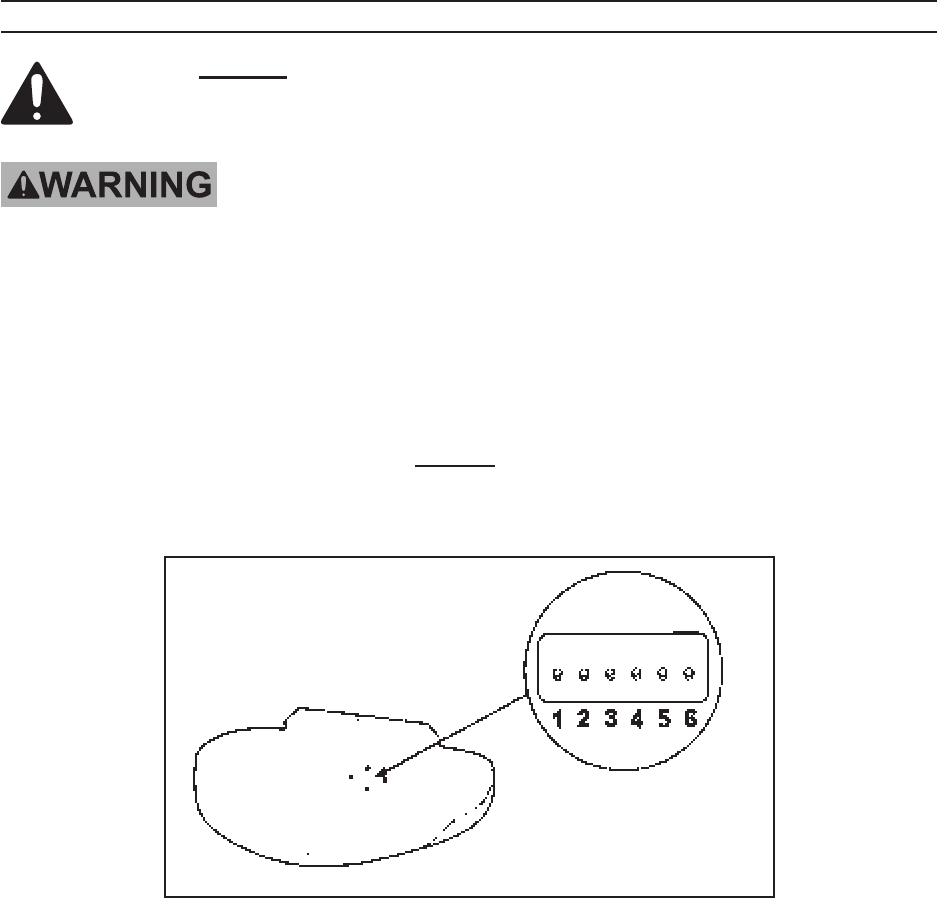

FIGURE B
2. There is a Connecting Wire Terminal in the unit’s Housing (31) which enables the
following accessories: (See Figure B.)
Terminal #1:• For Door Control Button (74) ground connection.
Terminal #2:• For Door Control Button (74).
Terminal #3:• For additional accessory (not included) ground connection.
Terminal #4:• For additional accessory (not included).
Terminal #5:• For additional 24 volt power source.
Terminal #6:• Additional terminal.
