SKU 65712 For technical questions, please call 1-800-444-3353. Page 17

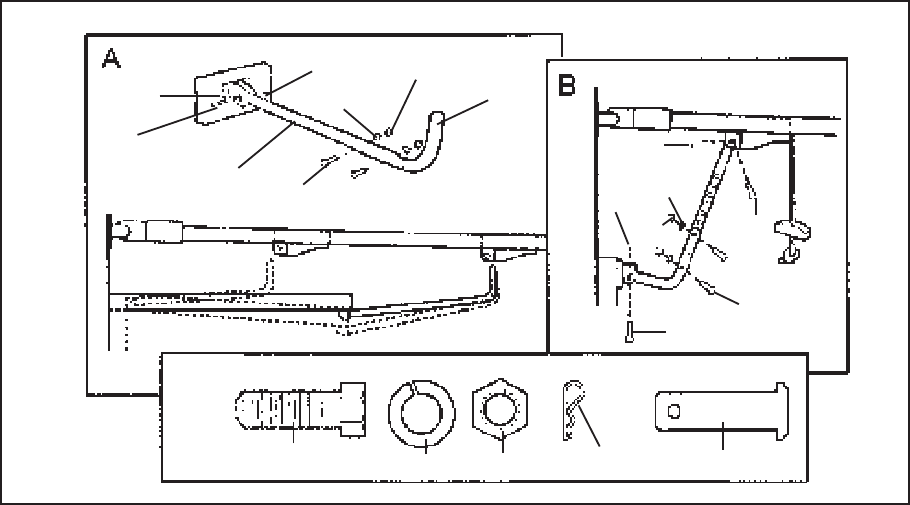

FIGURE O
DOOR
BRACKET
(50)
PIN
(51)
R-PIN
(52)
STRAIGHT
DOOR
ARM
(46)
CURVED
DOOR
ARM
(49)
WASHER
(38)
HEX BOLT
(47)
NUT
(48)
HEX BOLT
(47)
WASHER
(38)
NUT
(48)
R-PIN
(52)
PIN
(51)
HEX BOLT
(47)
WASHER
(38)
NUT
(48)
R-PIN
(52)
PIN
(51)
R-PIN
(52)
PIN
(51)
19. Fasten the Straight Door Arm (46) and Curved Door Arm (49) together to the lon-
gest possible length (with a 2 or 3 hole overlap) using two Hex Bolts (47) and two
Nuts (48). (See Figure O, Illustration A.)
With the garage door closed connect the Straight Door Arm (46) section to the 20.
Door Bracket (50) with a Pin (51). Secure the Pin with an R-Pin (52).
(See Figure O, Illustration A.)
Disconnect the inner and outer Trolley (45). Slide the outer Trolley back toward the 21.
Housing (31) and join the Curved Door Arm (49) to the connector hole in the Trol-
ley with a Pin (61). Secure with an R-Pin (62). NOTE: It may be necessary to lift
the garage door slightly to make the connection. (See Figure O, Illustration A.)
IMPORTANT: When setting the “up limit”, the garage door should not have a back-22.
ward slant when fully open. A slight backward slant will cause unnecessary buck-
ing and/or jerking operation as the door is being opened or closed from the fully
open position. (See Figure O, Illustration A.)
For sectional door installation, connect according to 23. Figure O, Illustration B.
