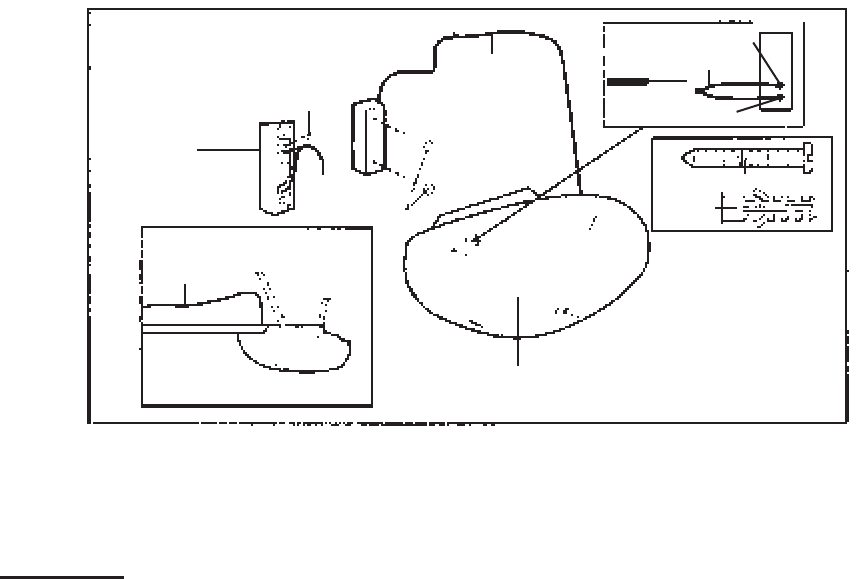

FIGURE P
DOOR
CONTROL
ASSEMBLY
(74)
TERMINALS
#1 & #2
WIRES
WIRES
TAPPING
SCREWS
(73)
WIRES
WIRES
TERMINAL #1
TERMINAL #2
TAPPING SCREW (73)
CONCRETE
ANCHOR
(56)
HOUSING
(31)
24. Locate the Door Control (74) assembly where the garage door is visible, away from
the garage door and out of reach of children. Mount the Door Control assembly at
least 5 feet above the oor. (See Figure P.)
WARNING! Serious personal injury from a moving garage door may result from misuse
of the Door Control (74) assembly or Remote Controls (75). Do not allow children
to operate the Door Control assembly or Remote Controls.
There are two Terminals on the back of the Door Control (74) assembly. Strip 25.
about 1/4” of insulation from the ends of the two Wires provided. Separate the two
Wires enough to connect to Terminal Screw #1 and Terminal Screw #2 on the back
of the Door Control assembly. (See Figure P.)
Fasten the Door Control (74) assembly to an inside garage wall with the Tapping 26.
Screws (73) provided. Drill two 5/32” diameter holes and use Concrete Anchors
(56) if installing into drywall. A convenient location is beside the service door and
out of reach of children. (See Figure P.)
Run the Wires up the wall and across the ceiling to the Garage Door Opener. Use 27.
insulated Staples (not included) to secure the Wires. The Quick Connect Terminals
are located on the side of the Housing (31). Connect the Wires to Terminal #1
and Terminal #2 on the Housing. (See Figures B and P.)
To operate the Door Control (74) assembly, plug the Power Cord (9) into the near-28.
est 120 volt, grounded, electrical outlet. Press the Button of the Door Control
assembly to open or close the garage door. Press again to stop the door while it is
moving. (See Figure P.)
