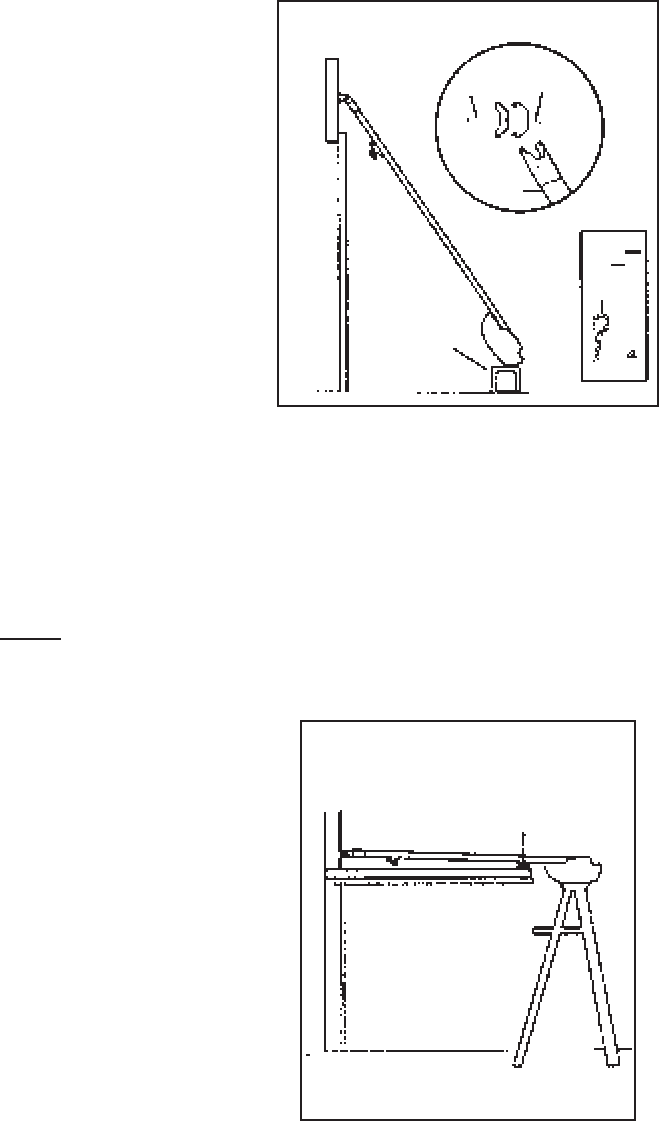

FIGURE K
PIN (51)
R-PIN
(52)
PIN
(51)
R-PIN
(52)
RAIL
(35)
PACKAGING
MATERIAL
13. Position the Garage Door Opener on the garage oor below the unit’s previously
installed Header Bracket (54). Use product packaging material to protect the
Housing (31). Raise the Rail (35) until the two holes at the end of the Rail align
with the two holes in the Header Bracket. Secure the Rail to the Header Bracket
using a Pin (57). Insert an R-Pin (58) in the Pin to secure the Pin in place.
(See Figure K.)
Note: To enable the Rail to clear sectional door springs, it may be necessary to lift the
Garage Door Opener onto a temporary support. The Garage Door Opener must
be secured to a support or held rmly in place by another person.
FIGURE L
1”
BOARD
14. A 1” thick board is ideal for setting the proper door-to-Rail (35) distance. Raise the
Garage Door Opener onto a stepladder. Open the garage door. Place the 1” thick
board, laid at, on the top section of the garage door near the center line. Rest the
Rail on the board. NOTE: If the raised garage door hits the unit’s Trolley (45), pull
down on the Trolley Release Arm to disconnect the inner and outer Trolley sec-
