Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need.
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Detent Pin
Adjustment Screw
TO AVOID INJURY, NO ONE SHOULD
CROSS THE PATH OF A MOVING DOOR!
NOTE:
If no obstruction interferes with a
standard upper limit, skip this step.
NOTE: The door must be in its fully closed
position and the disconnect handle must be
in the motor operated position (upper
position) to initiate the profile routine.
NOTE: Install profile will not run if safety
sensors are not aligned (Only if required for
your door).

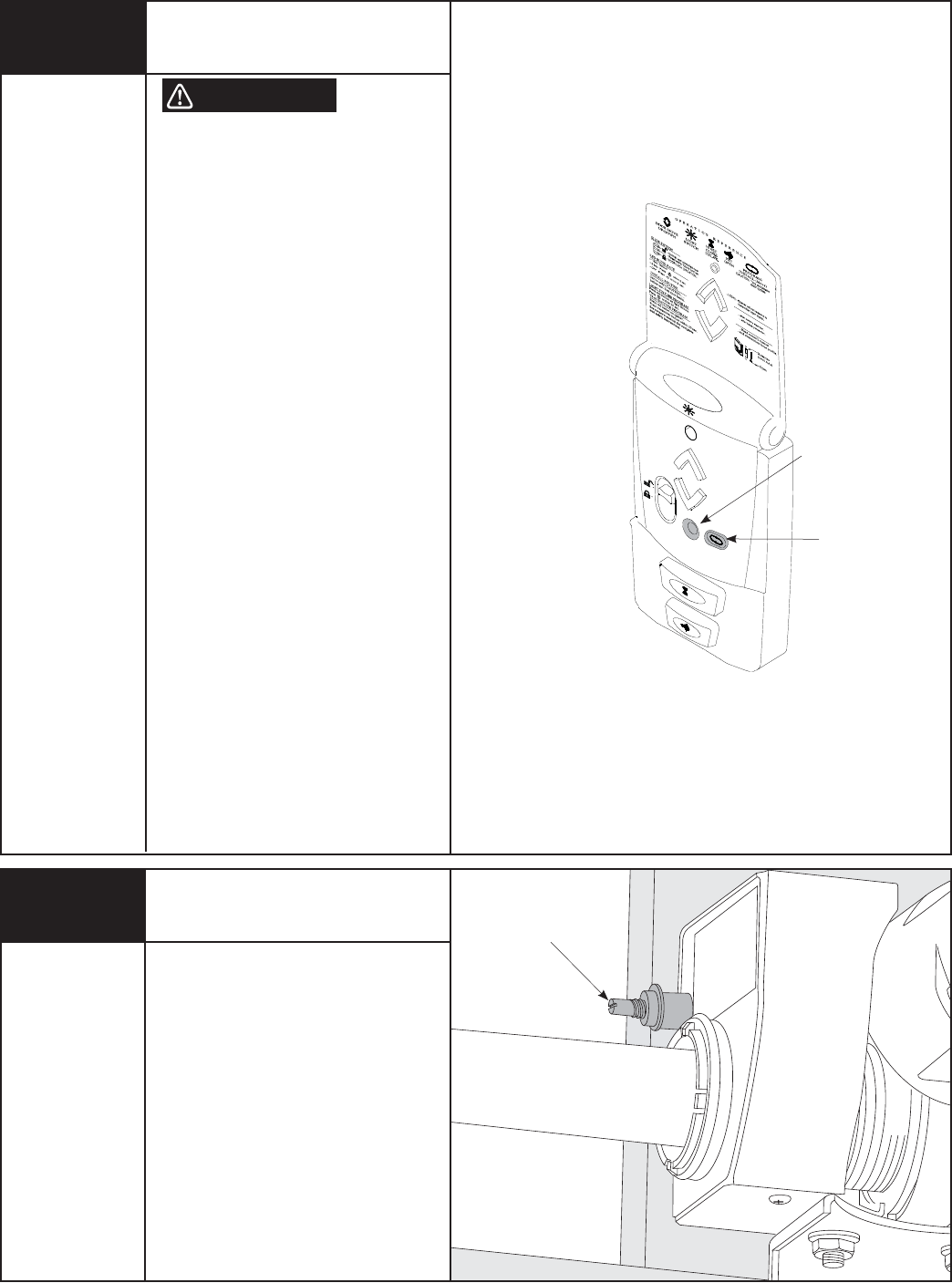

Press and hold the profile button for
five (5) seconds. The opener will beep
twice, release the profile button, indicating
the activation of the profile routine.
When the door moves to the desired upper
limit, press and hold the Up/Down button on
the wall station until the door stops. Next,
the door will close completely. The Up/Down
button (when door is closed) can be
activated by pressing center of flip cover.
Next, the door will go through one more Up/
Down cycle. Once this is complete, the door
limits are set and the profile is complete.
Alternately, once an profile routine has been
successfully completed, disconnect door
and manually move to desired upper limit.
Re-connect door and press and hold the
profile button for five (5) seconds. The
door will close, open and close to complete
the profile routine with the new custom
upper limit.
NOTE: For a more precise location of the
custom upper limit, see “Customizing the
Settings” on page 37-38.
The amount of pressure the opener
uses to pivot the motor downward is
preset at the factory via the detent pin
adjustment screw.
Due to variations in door installations,
a detent pin adjustment may need to
be made in order to insure proper pivoting
of the motor.
IMPORTANT! FOR SYSTEM SECURITY:
THE MOTOR IS DESIGNED TO PIVOT DOWN
AFTER THE DOOR CLOSES COMPLETELY. IF
THE MOTOR DOES NOT PIVOT OR PIVOTS
TOO SOON, THE DETENT PIN ADJUSTMENT
SCREW MAY NEED TO BE ADJUSTED IN
ORDER FOR THE DOOR LOCK FEATURE TO
WORK PROPERLY.
Adjusting Detent
Profile Routine
(Custom Upper Limit)
Profile
Button
Up/Down
Button
Tools Needed:
None
WARNING
25
26
Tools Needed:
Flat Tip
Screwdriver
Step Ladder
