Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need.
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
NOTE: If you have a Torquemaster
®
counterbalance, skip this step and continue
with Step 2 on page 10. If you have a
Torquemaster
®
Plus counterbalance system,
complete Steps 2-3 on pages 8 and 9.
IMPORTANT! RIGHT AND LEFT HAND IS
ALWAYS DETERMINED FROM INSIDE THE
GARAGE LOOKING OUT.

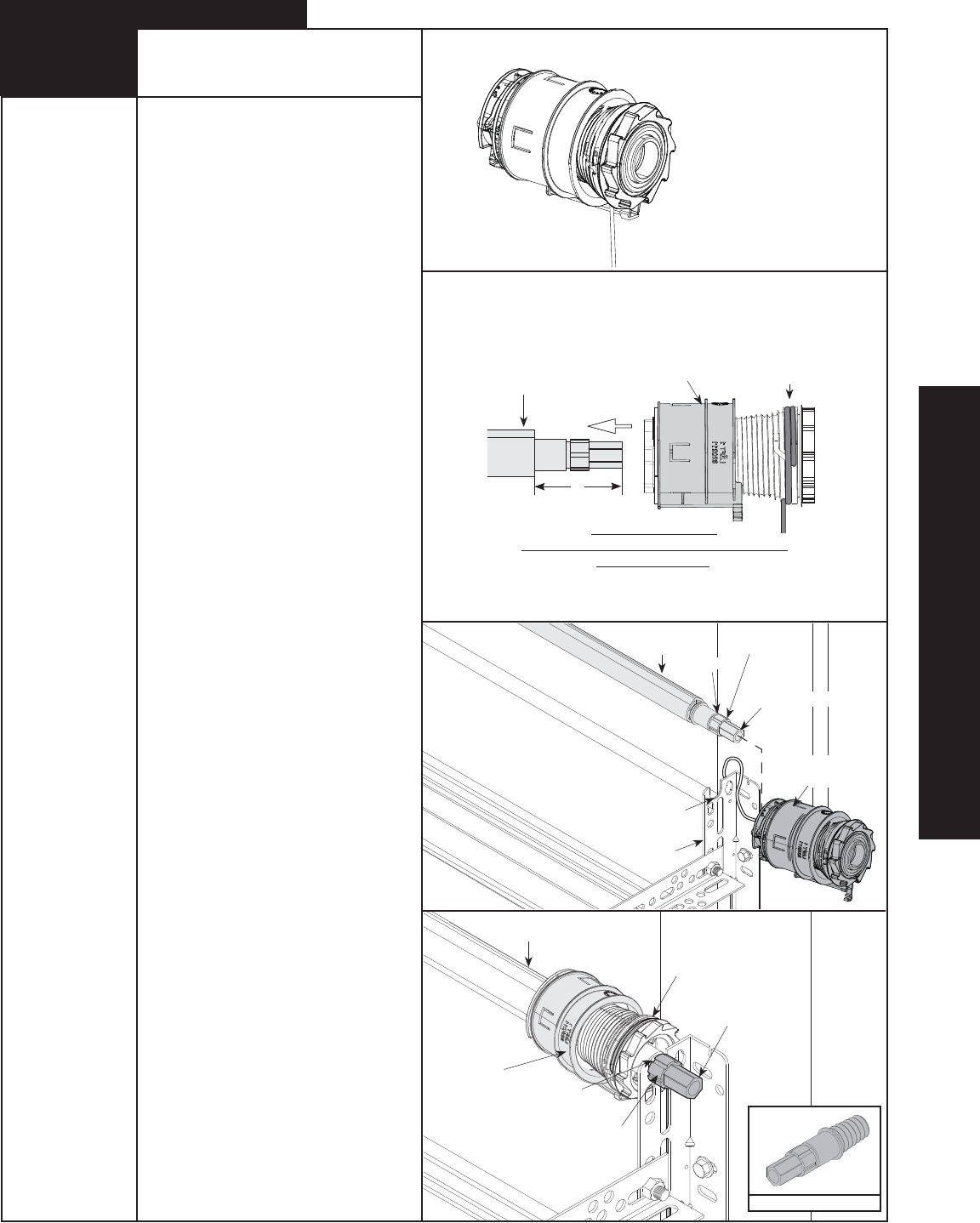

Shake the TorqueMaster
®
spring tube
assembly gently to extend the winding shafts
out about 5" on each side. For single spring
applications, there will be no left hand spring
in the TorqueMaster
®
spring tube assembly.
Lift the TorqueMaster
®
spring tube assembly
and rest it on the top of the flagangles.
NOTE: Cable drums are marked right and
left hand. Cable drums and TorqueMaster
®
spring tube assembly are cam shaped to fit
together only one way.
Pre-wrap the Torquemaster
®
Plus cable
drum with the counter balance cable 1-1/2
wraps (see illustrations).
To install the cable drum, slide the correct
cable drum over the winding shaft until the
cable drum seats against the TorqueMaster
®
spring tube assembly.
The winding shaft must extend past the
cable drum far enough to expose the splines
and the groove. Align the winding shaft
groove with the round notch in the flagangle.
For double spring applications, repeat for
opposite side.
For single spring applications, insert
the loose winding shaft into the left hand
cable drum prior to sliding the cable drum
over the TorqueMaster
®
spring tube
assembly.
NOTE: On single spring applications, take
care in handling the loose winding shaft (left
side) so that it does not slide back into the
TorqueMaster
®
spring tube assembly.
Winding Shaft
Cable
Drum
Groove
Round Notch
Flagangle
Splines
Counterbalance Cable
Cable Drum
Winding Shaft
Splines
Groove
2
Cable Drums
Loose Winding Shaft
Tools Needed:
Tape Measure
Step Ladder
2
Right Drum
1-1/2 Wrap Shown
Counterbalance Cable
Drums come with drum wraps pre-installed
on them.
TorqueMaster
®
Plus Installation
IDRIVE
®
FOR TORQUEMASTER
®
INSTALLATION
5”
TorqueMaster
®
Spring Tube
Assembly (Cam Peak Straight Up)
(Right hand cable drum shown, left hand cable drum is
symmetrically opposite)
Cam Peak
Straight Up
Cam Peak
Straight Up
