IMPORTANT! RIGHT AND LEFT HAND IS
ALWAYS DETERMINED FROM INSIDE THE
GARAGE LOOKING OUT.
NOTE: Older versions of the torque tube
have a label applied on the right side that
the opener will not slide over. Check the
location of the label on the torque tube. If
your torque tube has the label located on
the right side, document the information on
the label, then remove it completely using
an adhesive remover or mineral spirits. If
your torque tube has the label located on
the left side, proceed with the following
instructions.
Lay the torque tube on the floor (inside
garage) in front of the door with the labeled
end to the left.
Look into the opener’s left side to ensure
the left hand bearing and the internal (black)
sleeve are aligned with the torque tube
profile.
IMPORTANT! HOLD OPENER BY THE MAIN
BODY. DO NOT HOLD BY THE MOTOR.
Once aligned, slide the opener onto the
right hand end of the torque tube. As the
right end of the torque tube enters the
internal (black) sleeve, rotate the opener
back and forth slightly to help aid alignment.
Continue sliding the opener onto the torque
tube until the torque tube exits the opener
right hand bearing.
NOTE: Do not force the opener onto the
torque tube if misalignment occurs.
Continue sliding the opener to the center
of the torque tube.
Plug the motor power cord into the opener.
After completing this step, continue with
Step 2 on page 8 for Torquemaster
®
Plus;
Step 2 on page 10 for Torquemaster
®
.
Tools Needed:
None
Idrive
®
for Torquemaster
®
Installation
Assembling Opener
Left Hand Side
Torque Tube and
Bearing profiles
aligned

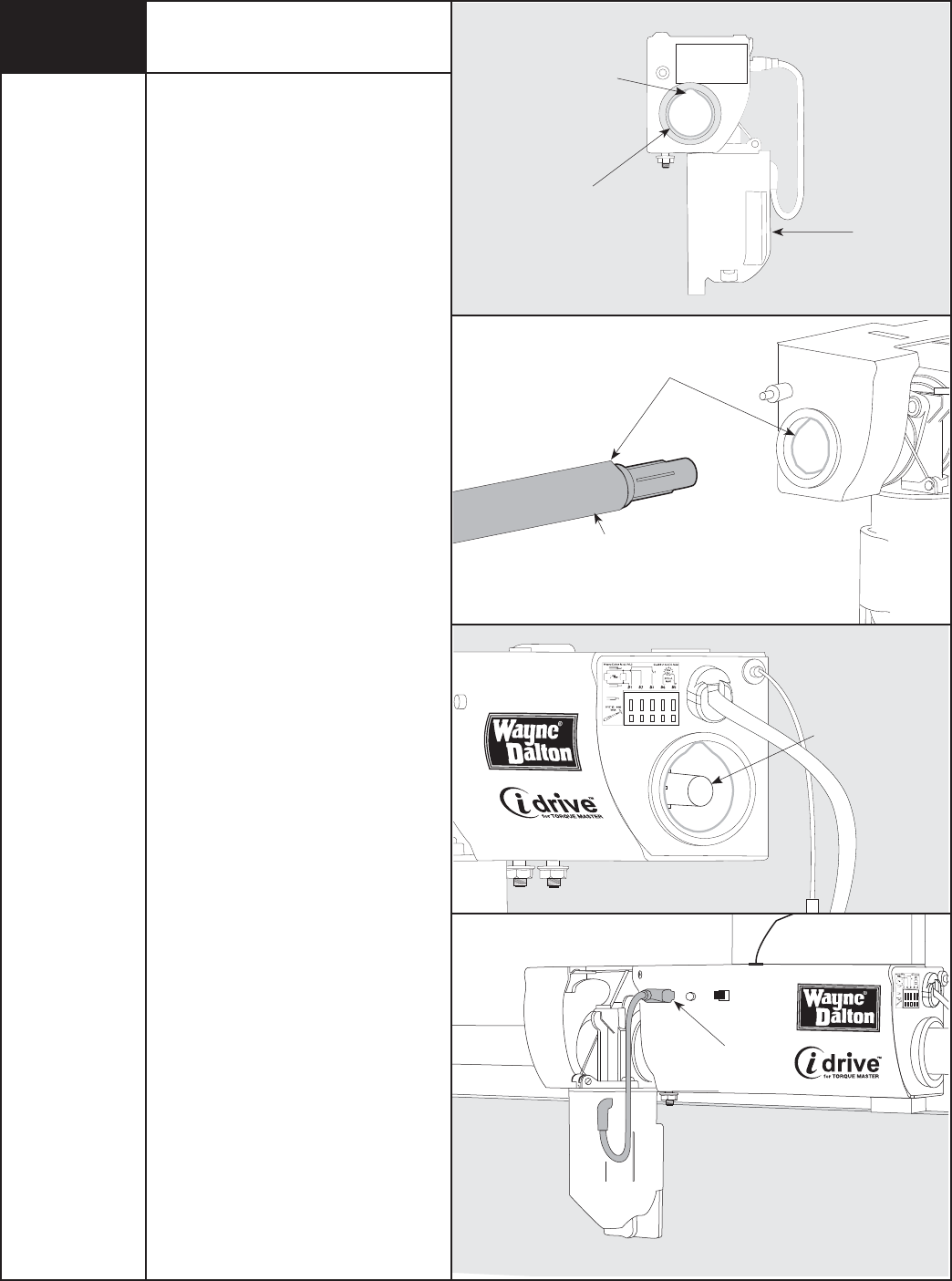

Align Torque Tube profile
with cam shaped profile
Plug-in Motor
Power Cord
Motor
1
Sleeve has cam
shaped pattern
Right Hand End
of Torque Tube cam
shaped
Right Hand End of
Torque Tube coming
out of right hand side
of idrive.
