82
CARE AND MAINTENANCE

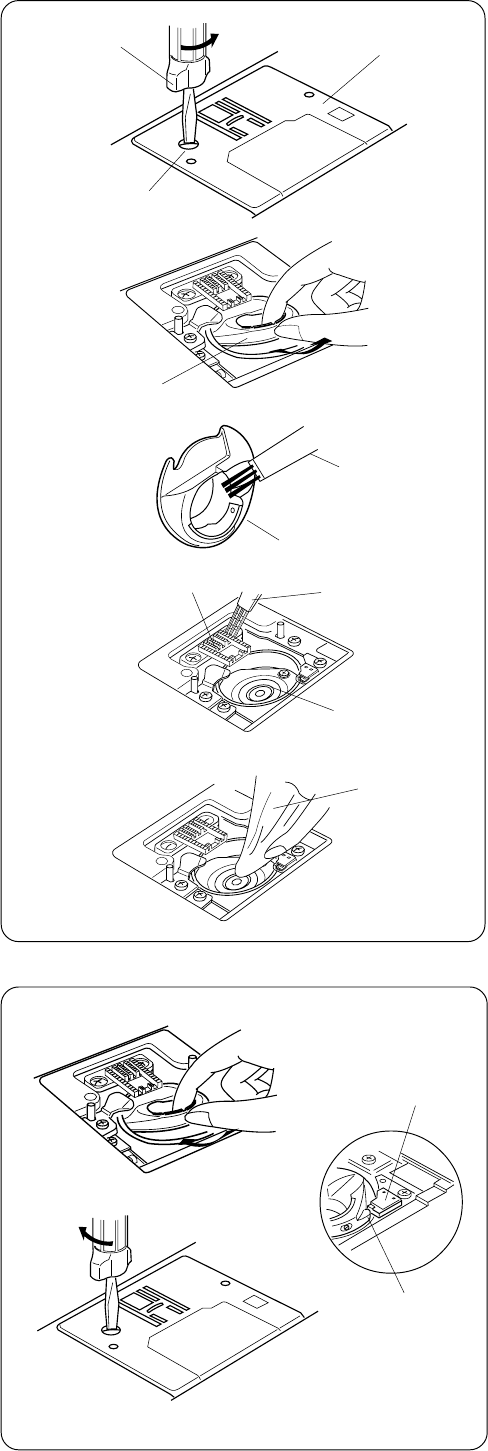

Cleaning the hook race and feed dog
WARNING:
Turn the power switch off and unplug the machine before
cleaning.
NOTE:
Do not dismantle the machine in any way other than what
is explained in this section.
z Remove the needle and presser foot. Remove the
setscrews and remove the needle plate.
x Take out the bobbin. Lift up the bobbin holder and
remove it.
!0
!1
z
x
c
v
b
q
w
e
r
r
t
t
y
u
i
c Clean the bobbin holder with a lint brush and soft dry
cloth.
v Clean the feed dog, auto thread cutter mechanism
and hook race with the lint brush.
b Clean the hook race with a dry cloth. (You may also
use a vacuum cleaner.)
q Screwdriver
w Setscrew
e Needle plate
r Bobbin holder
t Lint brush
y Feed dog
u Hook race
i Soft dry cloth
Inserting the bobbin holder
z Insert the bobbin holder.
x The knob of the bobbin holder should fit next to the
stopper on the hook race.
c Reattach the needle plate and tighten the screws.
!0 Knob
!1 Stopper
NOTE:
After cleaning the machine, attach the needle and presser
foot.
z
c
x
