Installation
F232122
20
e. Remove the four bolts from each tank located
behind cap plug at each corner. Refer to
Figure 9.
f. Lift tanks off the washer-extractor.
2. Removing the pump assembly:
a. Remove manifold hose clamps connecting the
pump manifold to the drain valve found at the
rear of the washer-extractor to the right of the
pump assembly. Refer to Figure 9.
b. Unscrew the two pump motor electrical quick
disconnects from the water saving control
housing located at the rear of the washer-
extractor.
c. Slide off the long black hoses that run from
the water tanks. Refer to Figure 9.
d. Remove pump assembly and place to the side.
3. Positioning and bolting down the washer-
extractor:
Refer to Mechanical Installation Section for
boltdown instructions.

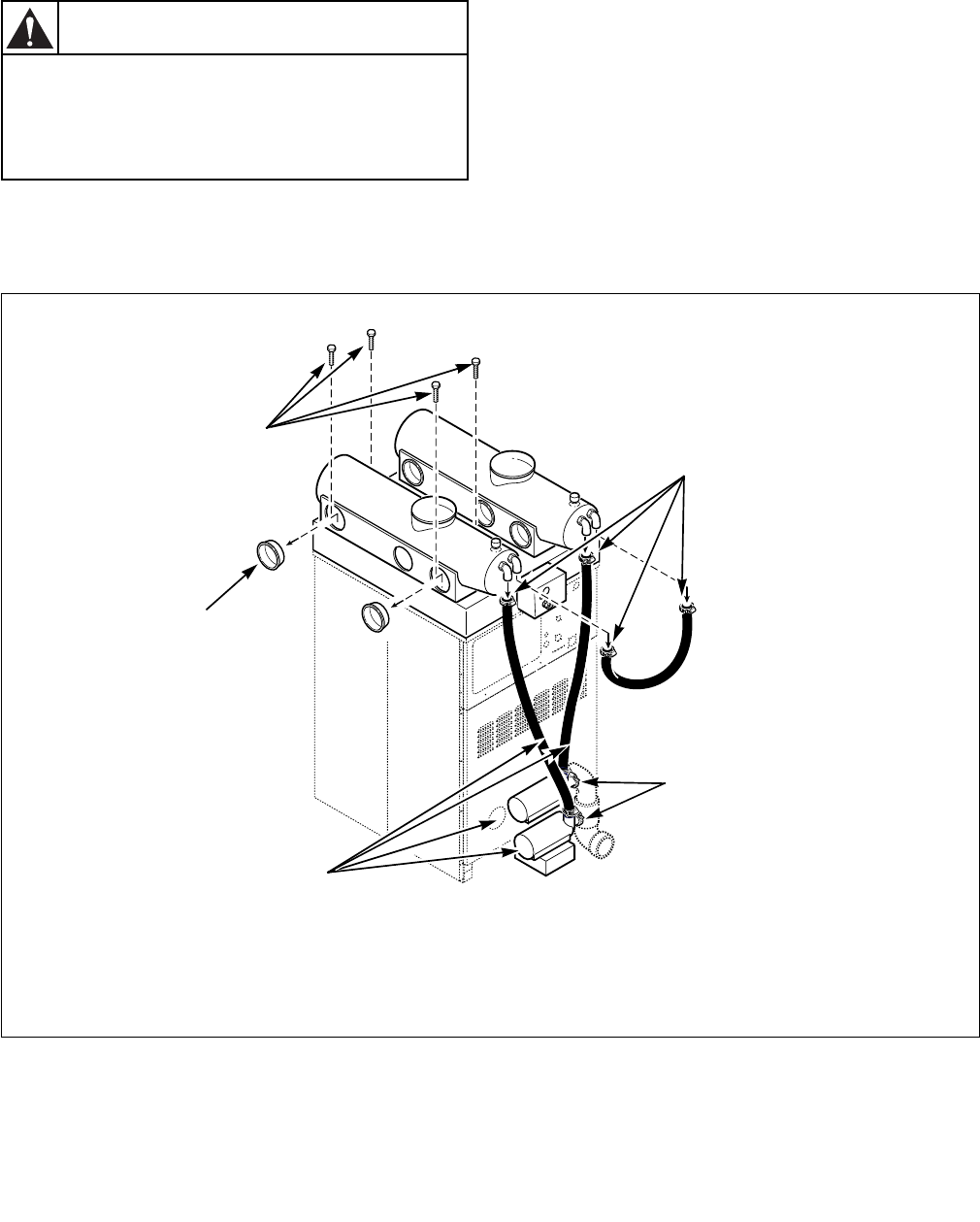

Figure 9
Be extremely careful when removing tanks.
To prevent damage, always place tanks on a
level surface with clean-out access facing
up.
CAUTION
Q008I
1 Corner Tank Bolts (4 per Tank) 4 Pump Assembly
2 Hose Clamps on Elbows 5 Cap Plug
3 Manifold Hose Clamps
Q008I
3
2
1
4
5
