F232122
12
7. Carefully lower top section over frame sides.
Insert the eight top section bolts and four frame
support bar bolts. Fully tighten the corresponding
nuts with the corresponding bolts.
8. Level the frame top section and sides. Align with
the washer-extractor.
NOTE: No part of the washer-extractor and the
WSS should be touching. If the machine requires
elevating during bolt down then the WSS will
require the same amount.
9. Tighten mounting nuts and washers to secure
frame to floor.

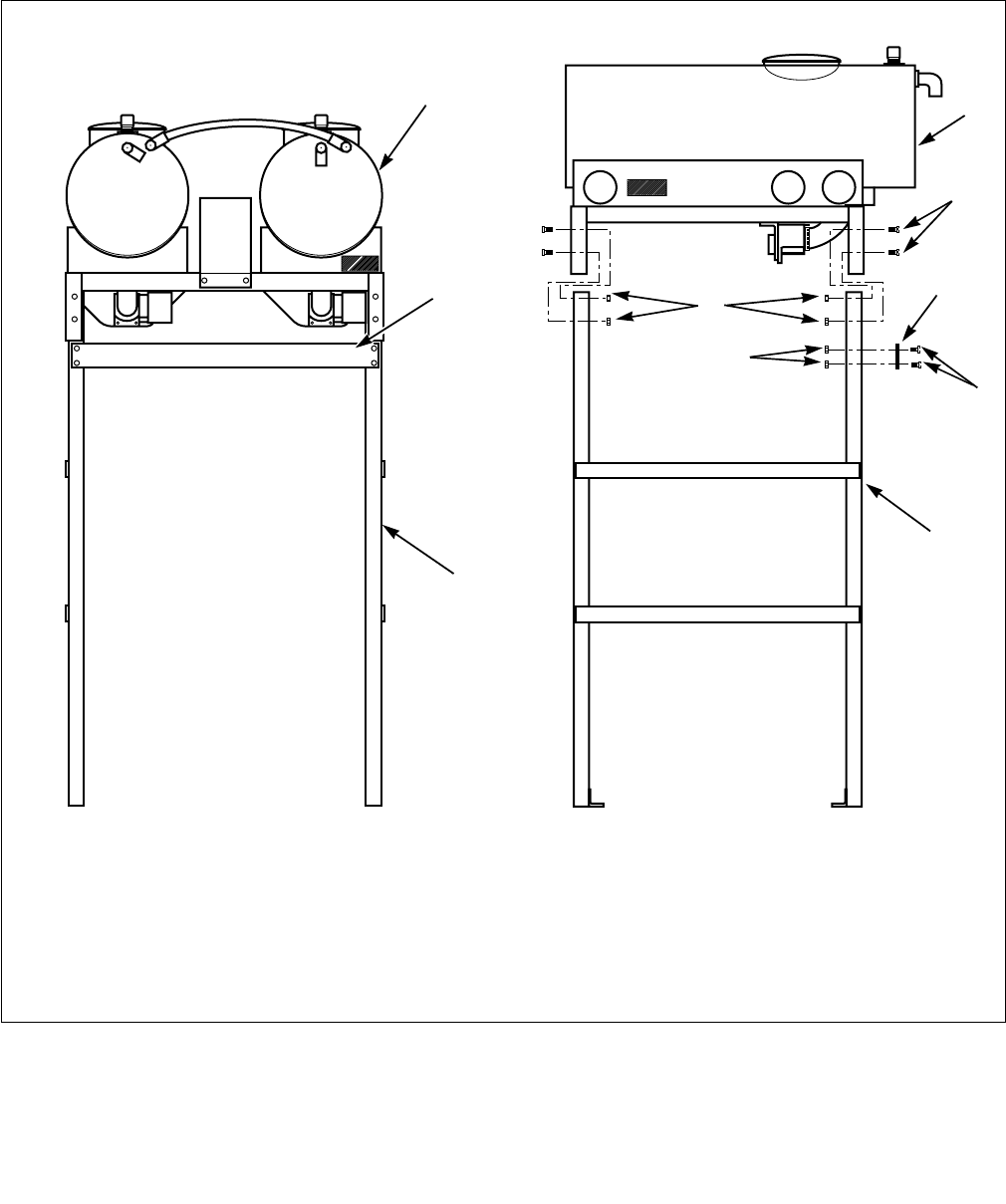

Figure 3
Q042I
1 Top Section 5 Top Section Nuts
2 Frame Support Bar 6 Frame Support Bar Nuts
3 Frame Sides 7 Frame Support Bar Bolts
4 Top Section Bolts
Top Section RemovedTop Section Not Removed
Side ViewRear View
1
2
3
4
5
6
7
1
2
3
