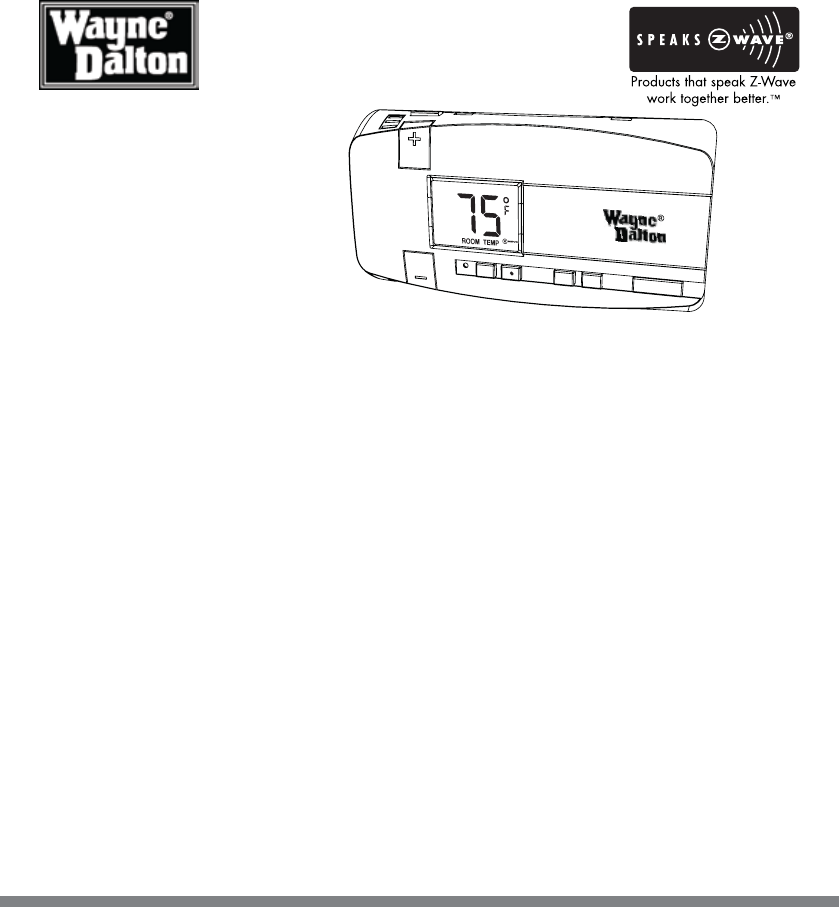

Wayne-Dalton WDTC-20 Thermostat User Manual



1
Z-Wave® Enabled
Thermostat
User Manual
For Model WDTC-20
Manage and automate your home’s
climate to maximize energy
conservation and comfort
Thank you for purchasing the Z-Wave® Enabled Thermostat. It was designed to give you many years
of reliable service and easy to use climate control when operated manually or by remote control in a
Z-Wave® network. Z-Wave® products by Wayne-Dalton allow you to manage and control your home by
remote control for convenience, comfort, safety and energy conservation. Your Z-Wave® Thermostat
is a great addition to your Z-Wave® network and can maximize energy conservation and comfort while
minimizing the effort required to maintain the appropriate temperature in your home whether you are
at home or away. In addition to thermostats, indoor and outdoor lighting, security systems, garage door
openers and window shades are just a few of the items you can easily control with additional Z-Wave®
certified products.
Your new Z-Wave
® Enabled Thermostat is compatible with the complete range of Wayne-Dalton
Z-Wave® certified controllers. Your Z-Wave® Enabled Thermostat will also work with Z-Wave® certified
controllers from other manufacturers and brands. Please consult the user manual and your controller
supplier for more details.
Home Control Basics
Z-Wave® certified products will allow you to easily control multiple devices in a home with the push of a
button in what is known as a “scene”. Turning on your home’s interior lights and activating the set-back
on your thermostat from your in-vehicle remote as you come home is an example of a scene. Dimming
the lights and automatically closing your curtains to watch TV with a single push of a button is another
example of a scene.
Visit www.wayne-dalton.com/access for more ideas on how to create, set-up and use scenes for safety,
security, comfort and convenience.
IMPORTANT NOTICE!
Read the enclosed instructions carefully before installing your new Z-Wave® Enabled Thermostat. Pay
close attention to all warnings and notes and carefully follow the installation steps in the order they are
presented to save time and minimize the risk of damaging the thermostat or the system it controls.
This manual should be retained for future reference.
AUTO
ON
FAN
HEAT
COOL
SAVE
ENERGY
NORMAL
RESET
COOL
