64
Editing Program

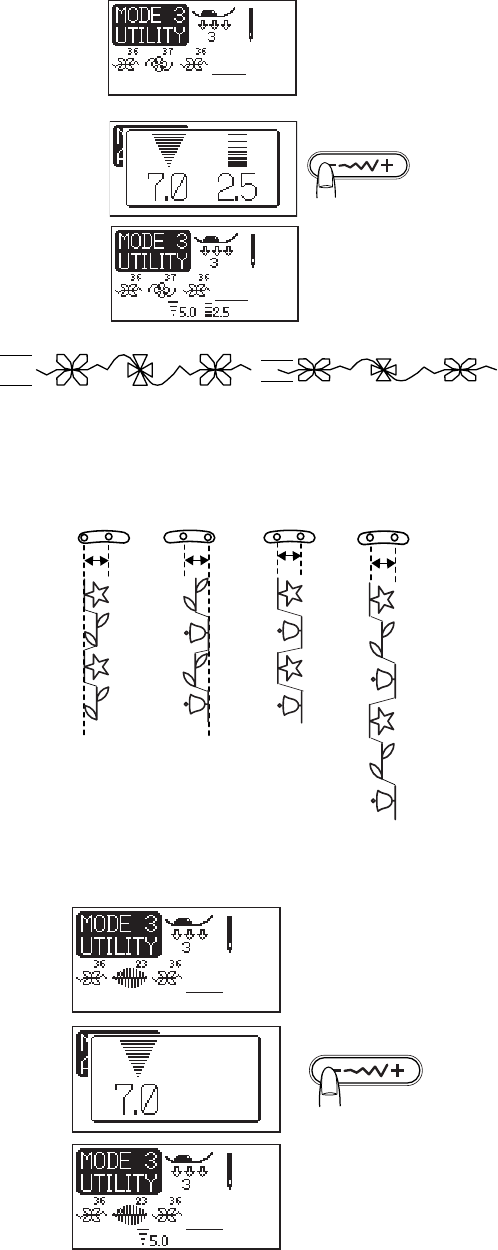

Uniform stitch adjustment (Modes 2 and 3 only)
The stitch width and length of the programmed stitch
patterns can be uniformly altered.
Example 1: To alter the stitch width of the programmed
patterns 36, 37 and 36 in the Mode 3.
Shift the cursor to the right of the last programmed pattern.
Press the stitch width adjusting button to alter the stitch
width.
NOTE:
Stitch length can be uniformly altered when patterns of the
same category (satin stitches or stretch stitches) have been
programmed.
Start sewing. The programmed patterns will be sewn in the
uniform width.
1 Default Width
2 Uniformly Altered Width
Unified needle drop position:
The needle drop position of the programmed patterns will
vary depending on the combination:
(1) Unified to the left when combining the patterns with the
left needle position and the center needle position.
(2) Unified to the right when combining the patterns with the
right needle position and the center needle position.
(3) Unified to the center when combining the patterns with
the left needle position and the right needle position.
(4) Unified to the center when combining the patterns with
the left, right and center needle positions.
Example 2: To alter the stitch width of the programmed
patterns 36, 23 and 36.
Shift the cursor to the right of the last programmed pattern.
Press the stitch width adjusting button to alter the stitch
width. The LCD screen will show the stitch width only.
Start sewing. The programmed patterns will be sewn in the
uniform width.
1
2
(1)
(2)
(3) (4)
NOTE:
Only the stitch width can be altered when satin stitches and
stretch stitches have been combined.
