Multi-Media Unit: Installation Instructions
2–12

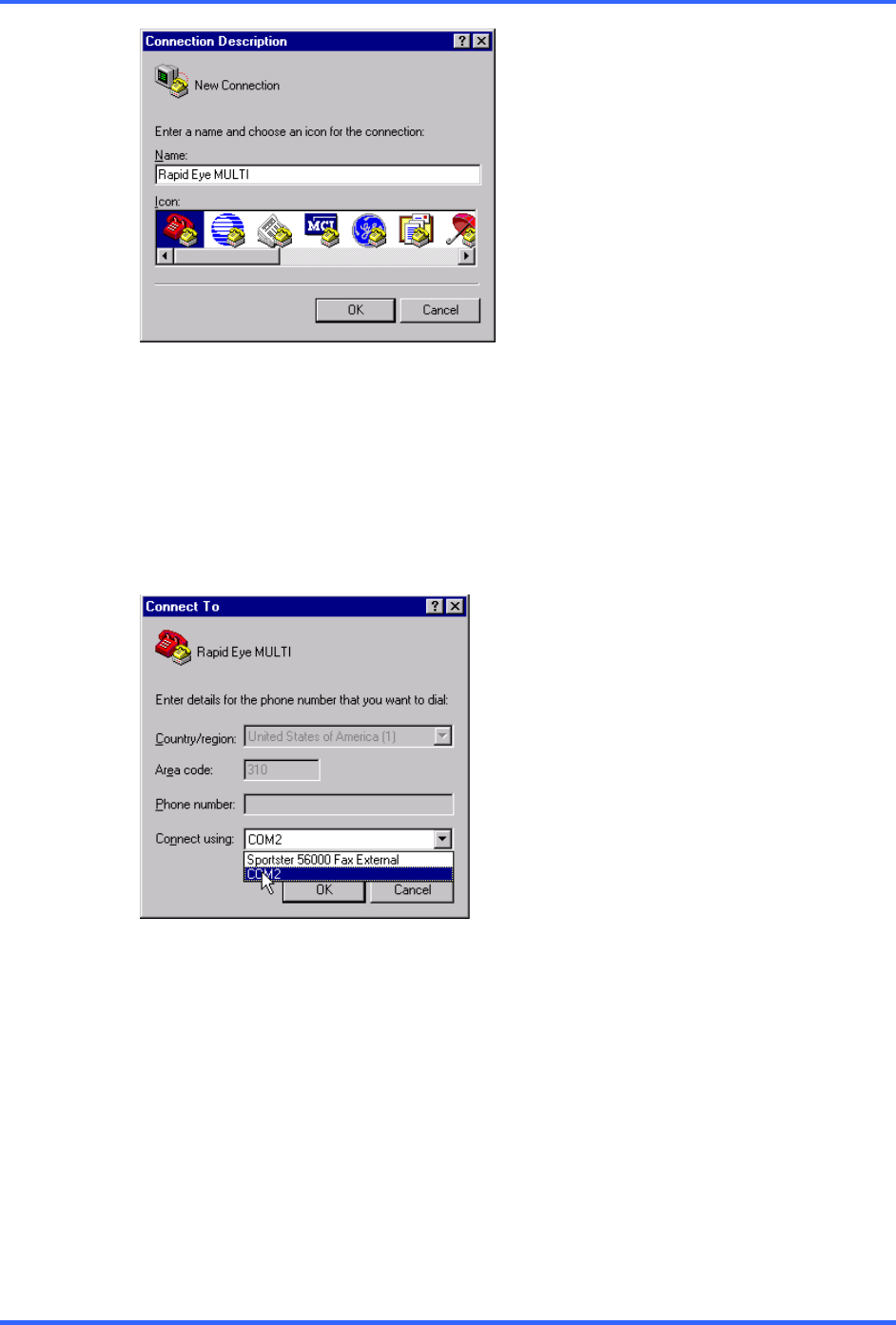

Fig. 18. Naming a connection, using HyperTerminal
2. In the Connection Description dialog, type “Rapid Eye Multi-Media” (or similar)
in the Name field.
3. Click OK. A Connect To dialog appears. See figure 19.
4. Using the Connect To dialog, select the Workstation's COM port number that is
connected to the null modem cable, by using the arrow next to the Connect
using field.
5. Click OK. The COM Properties dialog box is displayed.
Fig. 19. Indicating a PC’s COM Port, using HyperTerminal
6. In the COM Properties dialog box, set the Terminal program to the values listed
in table 7.
7. Click OK.
